Złącze do PCB 2,5 mm² raster 5 mm 12-bieg., niebieski
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 740-112/000-006 |
| GTIN(EAN) | 4045454144135 |
| Price unit | piece |
| Catalog price | 31,80 zł (25,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złącze do PCB; 2,5 mm²; raster 5 mm; 12-bieg.; CAGE CLAMP®; 2,50 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16,4 g |
| ETIM class: | Printed circuit board terminal |

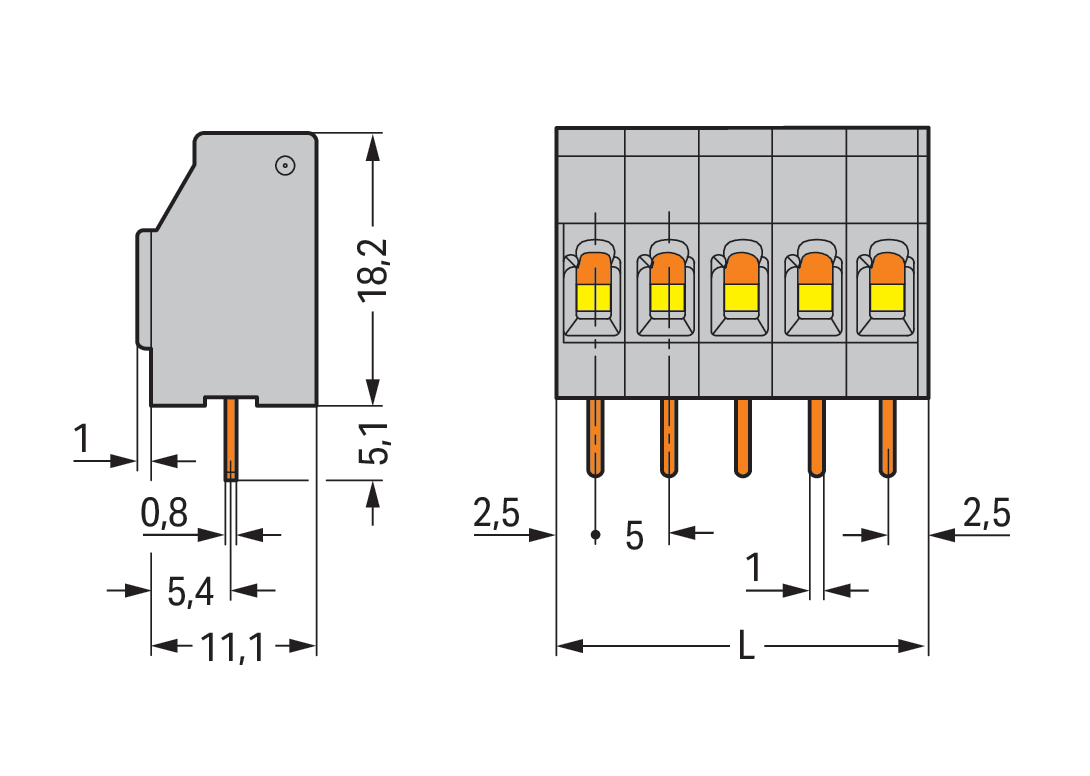

| Height: | 18.2 mm |
| Number of electrical connections: | 12 |
| Number of levels: | 1 |
| Rated current In: | 16 A |
| Rated voltage: | 320 V |
| Rated surge voltage: | 4 kV |
| Over voltage category: | III |
| Connection type conductor: | Spring clamp connection |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Connection type PCB: | Soldering connection |
| Material connection surface: | Tin |
| Housing colour: | Blue |
| Inflammability class of insulation material according to with UL94: | V0 |
| Operating temperature: | -60 - 105 °C |
| Type of PCB fastening: | Connecting contact |
| Type of fastening: | Solder |
