4-przewodowy blok zasilający 4-bieg., biały 862-2604
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 862-2604 |
GTIN(EAN) | 4044918510202 |
Price unit | piece |
Catalog price | 20,98 zł (17,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

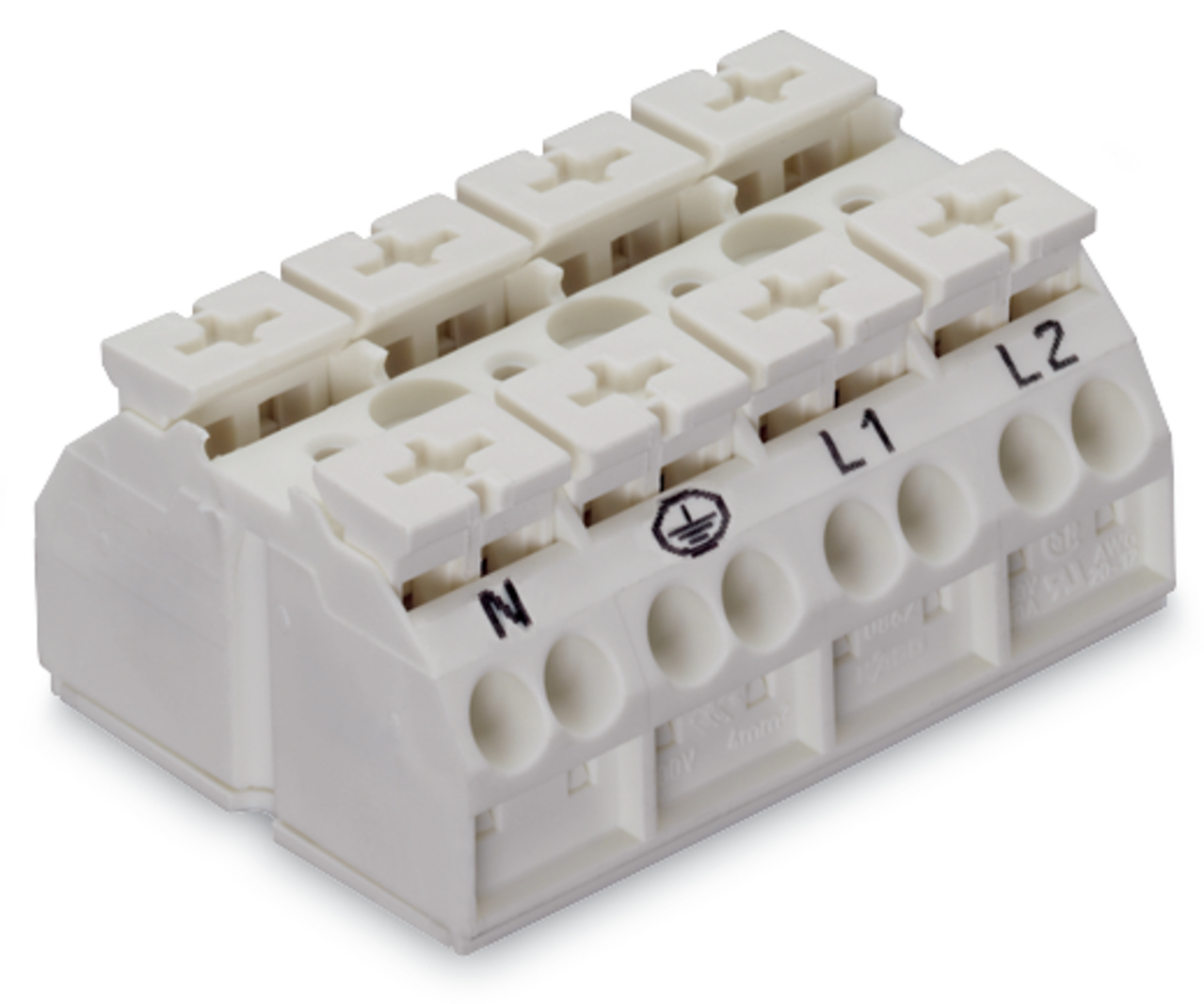

blok zasilający 4-przewodowy; bez styku PE; N-PE-L1-L2; 4-bieg.; do śruby i nakrętki M3; 4 mm²; 4,00 mm²; biały
Additional features:
Information | Value |
---|---|
Net weight: | 27,15 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 4 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 35 mm |
Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 32 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
Number of poles: | 4 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | White |
Width: | 48 mm |
Rated voltage: | 500 V |
Depth: | 22.3 mm |
