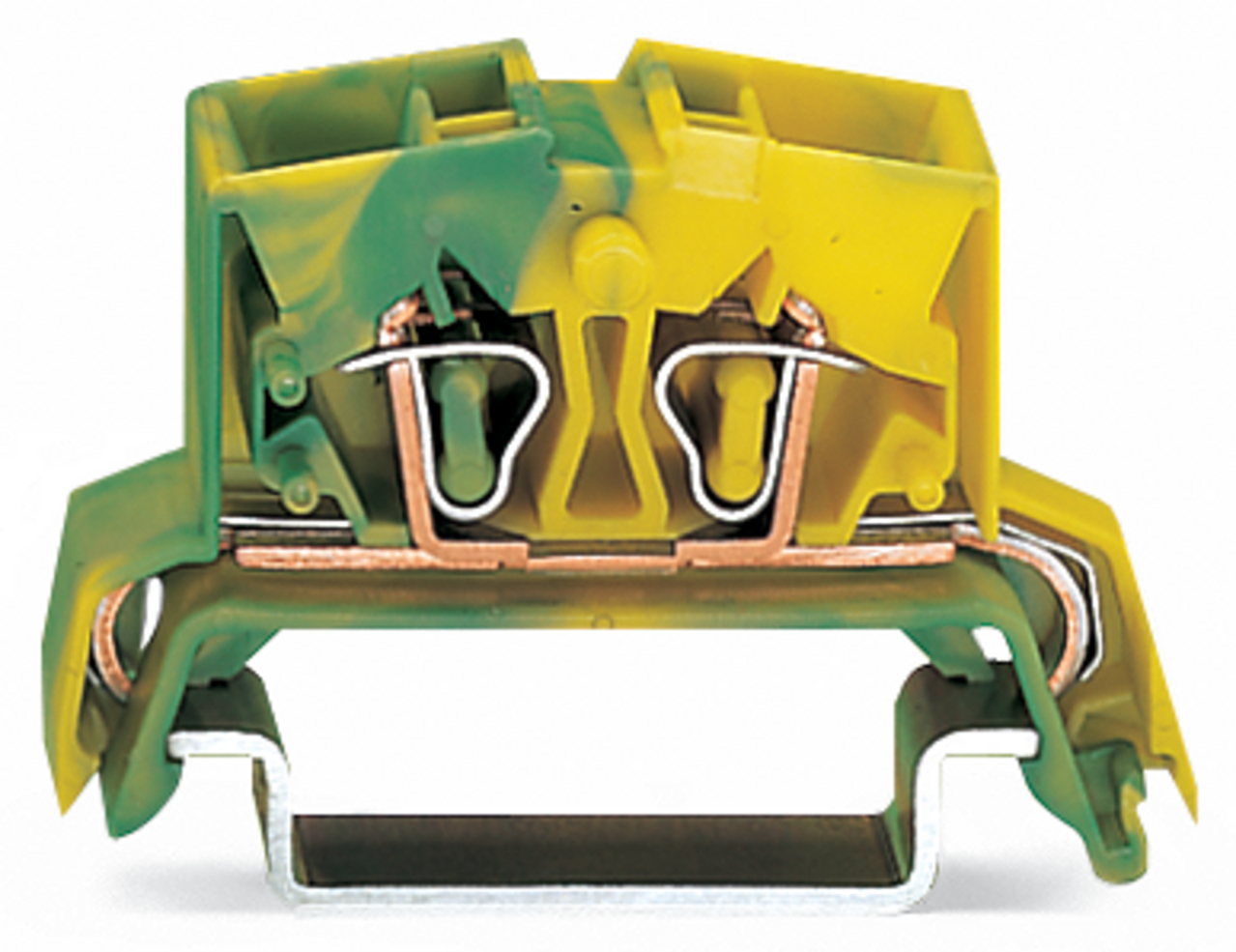

4-przewodowa złączka listwowa Mini 2,5 mm², żółto-zielona 264-737
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 264-737 |
| GTIN(EAN) | 4044918451956 |
| Price unit | piece |
| Catalog price | 14,93 zł (12,14 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka listwowa Mini 4-przewodowa; 2,5 mm²; opis na środku; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 2,50 mm²; żółto-zielony
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8,86 g |
| ETIM class: | Ground terminal block |
| Operating temperature: | 105 - 105 °C |
| PEN function possible: | yes |
| Height: | 46.5 mm |
| Number of levels: | 1 |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 4 |
| Colour: | Green/yellow |
| Width: | 10 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Depth: | 24.5 mm |
