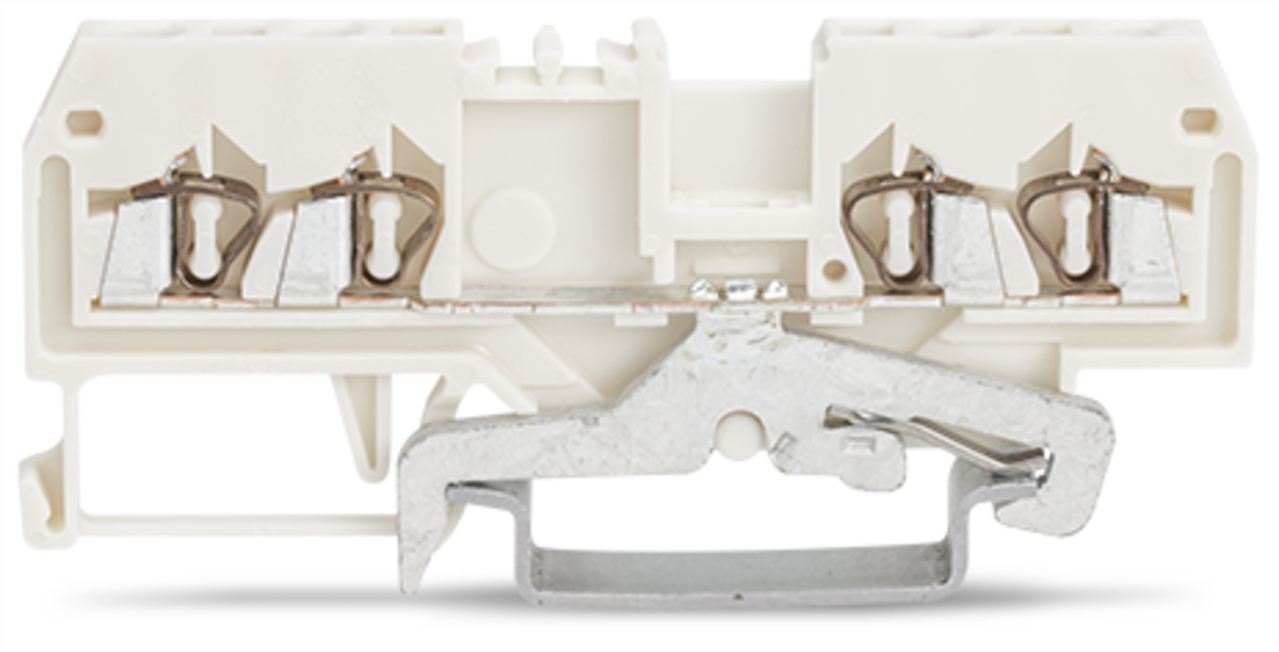

4-przewodowa złączka do ekranu 1,5 mm², biała 279-838
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 279-838 |
| GTIN(EAN) | 4045454084462 |
| Price unit | piece |
| Catalog price | 27,82 zł (22,62 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka do ekranu 4-przewodowa; 1,5 mm²; opis na środku; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 1,50 mm²; biały
Additional features:
| Information | Value |
|---|---|
| Net weight: | 13,38 g |
| ETIM class: | Ground terminal block |
| Operating temperature: | 105 - 105 °C |
| Material insulation body: | Thermoplastic |
| Height: | 73 mm |
| Connectable conductor cross section solid-core: | 0.08 - 1.5 mm² |
| PEN function possible: | yes |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Number of levels: | 1 |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 1.5 mm² |
| Number of clamp positions per level: | 4 |
| Colour: | White |
| Width: | 4 mm |
| Depth: | 27 mm |
