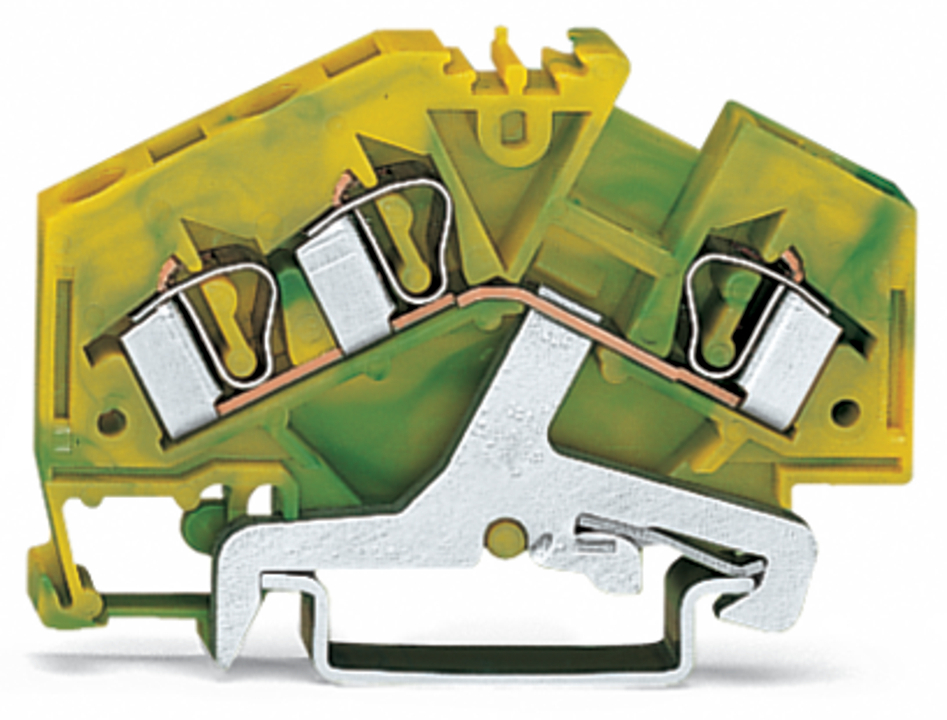

3-przewodowa złączka PE 4 mm², żółto-zielona 281-637
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 281-637 |
GTIN(EAN) | 4045454084516 |
Price unit | piece |
Catalog price | 28,78 zł (23,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka PE 3-przewodowa; 4 mm²; opis na środku; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 4,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 16,11 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 61.5 mm |
Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
PEN function possible: | yes |
Mounting method: | DIN rail (top hat rail) 35 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
Number of clamp positions per level: | 3 |
Colour: | Green/yellow |
Width: | 6 mm |
Depth: | 37 mm |
