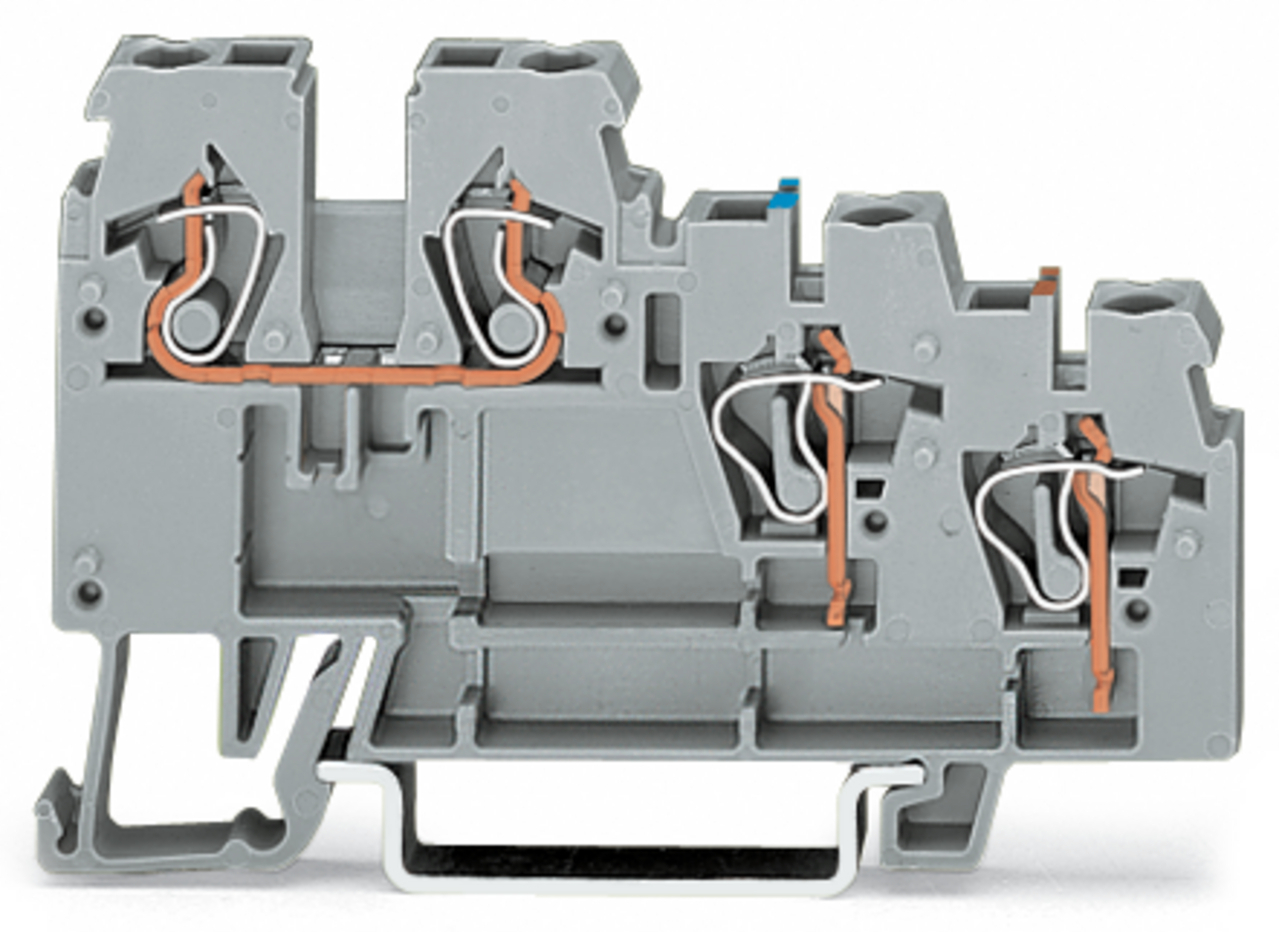

3-przewodowa złączka do czujników szara 270-560
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 270-560 |
| GTIN(EAN) | 4050821035251 |
| Price unit | piece |
| Catalog price | 19,79 zł (16,09 zł + 23% VAT) |
| Sale price | from 7,58 zł / szt. (6,16 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka sygnałowa 3-piętrowa; z otworami na przew. z kolor. nadrukiem; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8,82 g |
| ETIM class: | Sensor/actuator terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Rated current In: | 18 A |
| Closing plate required: | yes |
| Cross connectable: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Number of clamp positions per level: | 4 |
| Internally connected stages: | no |
| Colour: | Grey |
| Width: | 5 mm |
| Rated voltage: | 250 V |
| Depth: | 39 mm |
| Disconnect function: | no |
| Height: | 68 mm |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| With PE connection: | no |
| With shield connection: | no |
| Inflammability class of insulation material according to with UL94: | V0 |
| With power supply function: | no |
| LED switching for: | No |
| Number of levels: | 3 |
| Explosion-tested version 'Ex e': | no |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
el12 O.Gdynia
Gdynia, Chwaszczyńska 170d
Gdynia, Chwaszczyńska 170d
Distance:
26 sztuk
7,58 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-04-04 15:11:22 |
| Files to download: | |
| External links: |
