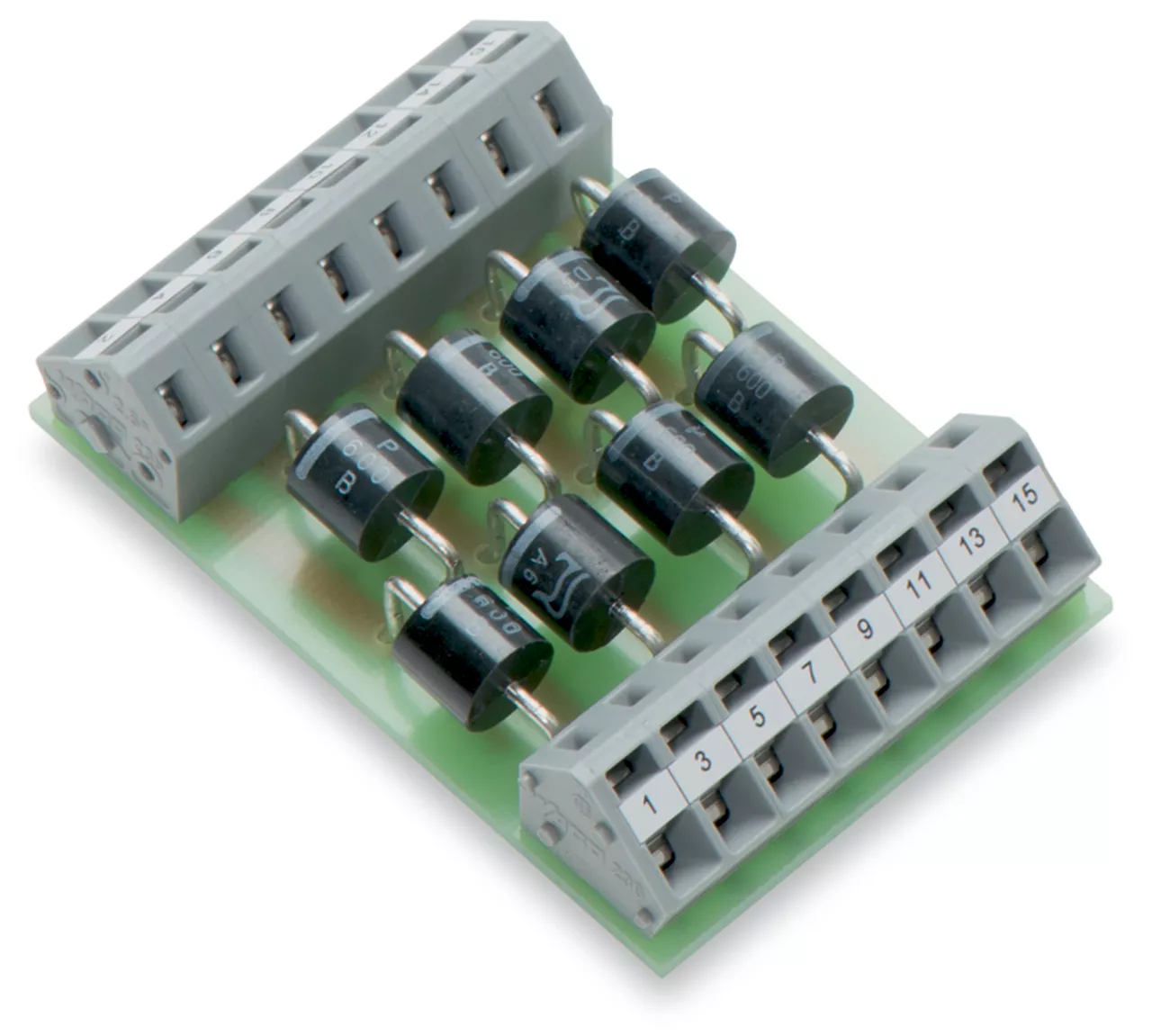

CM-D Moduł z diodą 8x P600B
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 289-103 |
| GTIN(EAN) | 4045454569372 |
| Price unit | piece |
| Catalog price | 287,94 zł (234,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

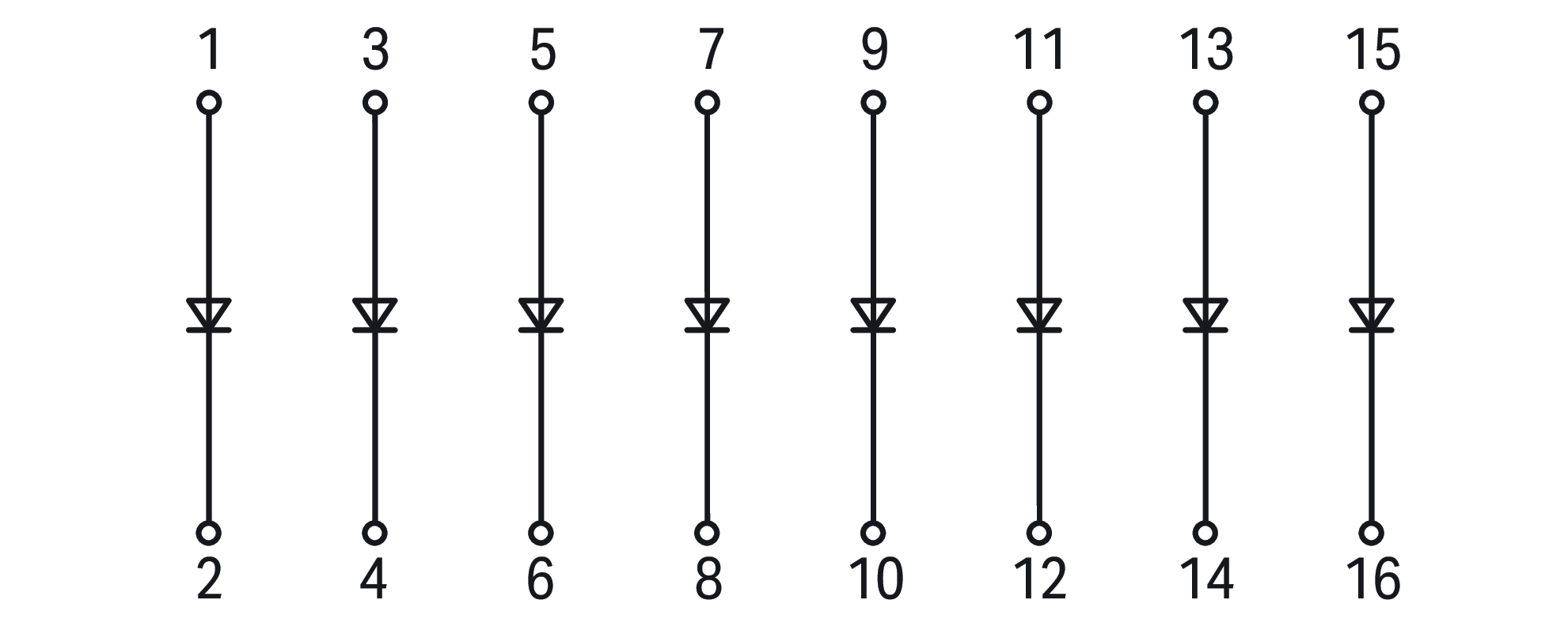

moduł z diodą; z 8 szt.; dioda P600B; 2,50 mm²
Additional features:
| Information | Value |
|---|---|
| Net weight: | 18,95 g |
| ETIM class: | Component terminal block |
| Operating temperature: | -25 - 30 °C |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 1 A |
| Height: | 65.5 mm |
| Number of levels: | 1 |
| Closing plate required: | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 16 |
| Internally connected stages: | no |
| Colour: | Other |
| Width: | 47 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 250 V |
| Depth: | 31.5 mm |
| Type of component: | Diode |
