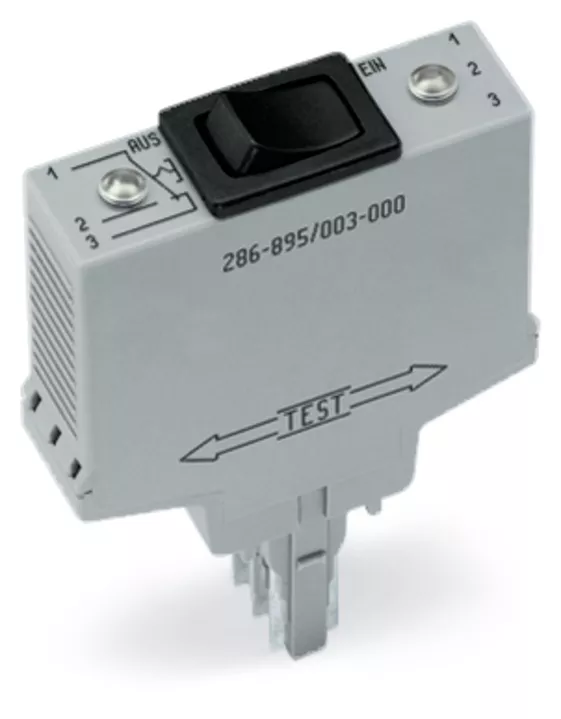

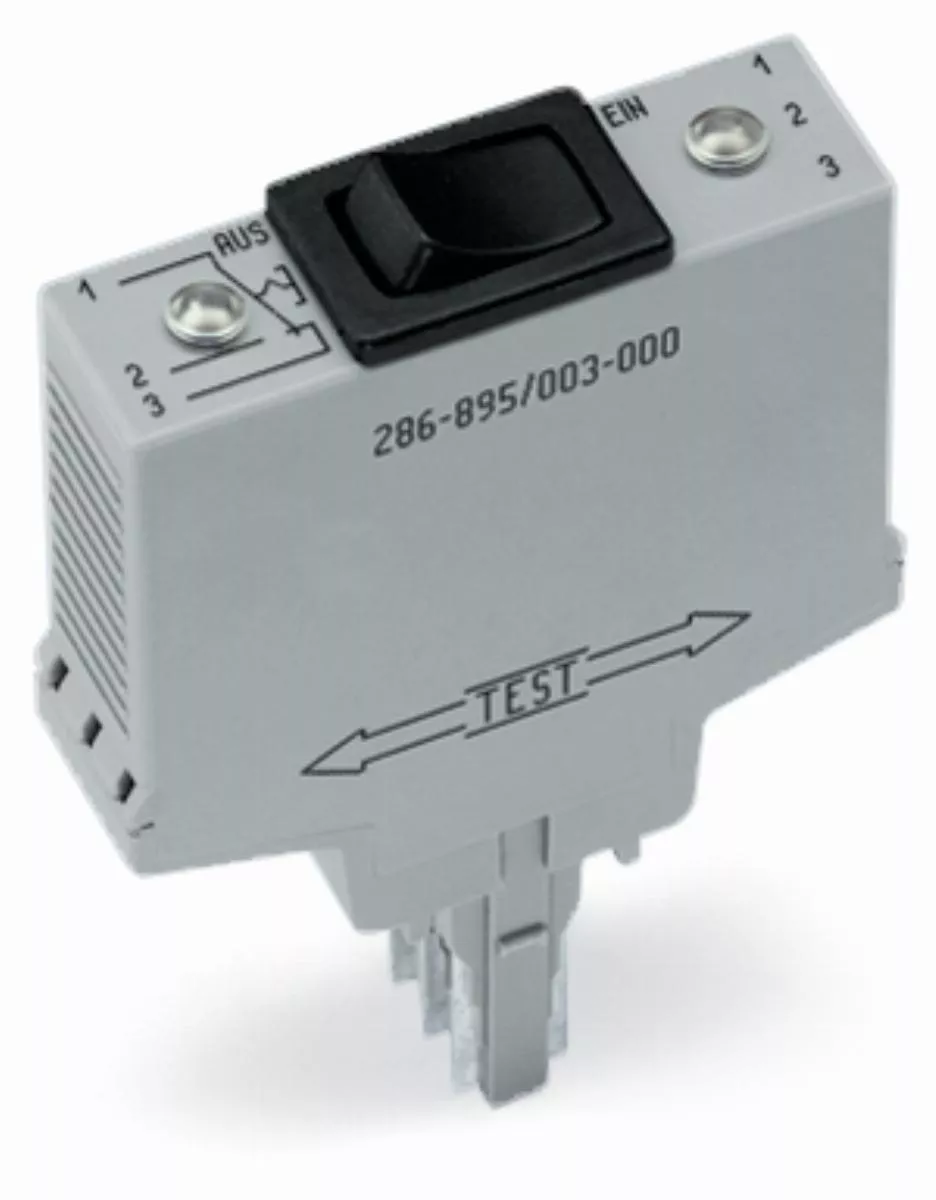

Moduł łącznika, z przełącznikiem monostabilnym, napięcie łączeniowe 250 V AC, prąd łączeniowy 6 A, szary
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 286-896 |
| GTIN(EAN) | 4045454198190 |
| Price unit | piece |
| Catalog price | 198,03 zł (161,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
moduł przełączający; z przełącznikiem monostabilnym; napięcie łączeniowe 250 V AC; prąd łączeniowy 6 A; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 19,49 g |
| ETIM class: | Switching relay |
| Height: | 70.2 mm |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| Voltage type for actuating: | AC/DC |
| Nominal current: | 6 A |
| Type of electric connection: | Spring clamp connection |
| Rated control supply voltage DC: | 24 - 24 V |
| Degree of protection (IP): | IP20 |
| With detachable clamps: | no |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| Rated control supply voltage AC 60 Hz: | 250 - 250 V |
| Width: | 15 mm |
| Drive, polarization: | Polarized |
| With LED indication: | yes |
| Rated control supply voltage AC 50 Hz: | 250 - 250 V |
| Drive, switching attitude: | Mono stable |
| Depth: | 50 mm |
| With forced-guided contacts: | no |
| Number of contacts as normally closed contact: | 0 |
