2-przewodowa złączka przelotowa 6 mm², czerwona
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 282-903 |
| GTIN(EAN) | 4066966232011 |
| Price unit | piece |
| Catalog price | 12,83 zł (10,43 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

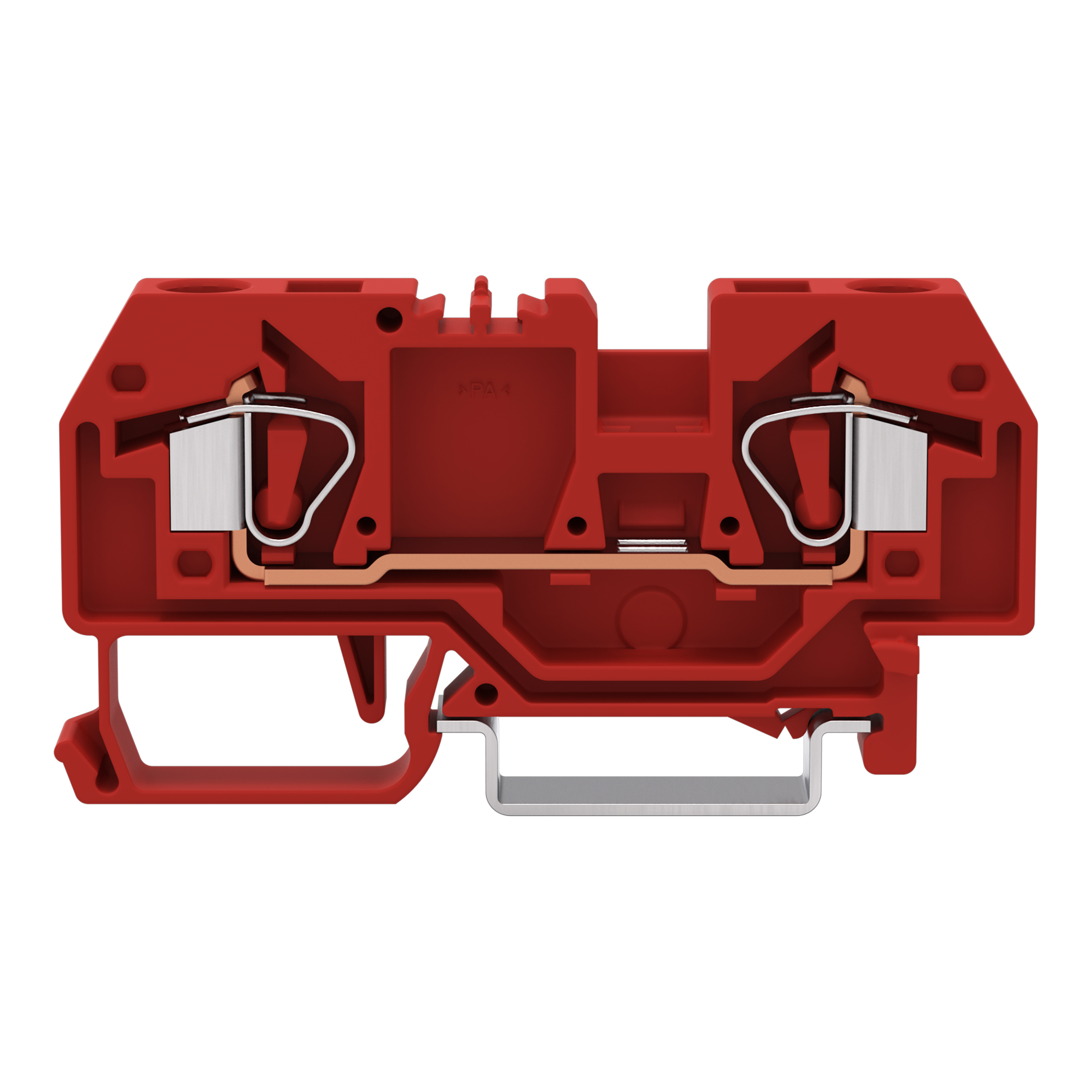

złączka przelotowa 2-przewodowa; 6 mm²; opis na środku; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 6,00 mm²; czerwony
Additional features:
| Information | Value |
|---|---|
| Net weight: | 15,79 g |
| ETIM class: | Feed-through terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 74.5 mm |
| Connectable conductor cross section solid-core: | 0.2 - 6 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 41 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 6 mm² |
| Number of levels: | 1 |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.2 - 6 mm² |
| Explosion-tested version 'Ex e': | no |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Red |
| Width: | 8 mm |
| Rated voltage: | 800 V |
| Depth: | 32.5 mm |
