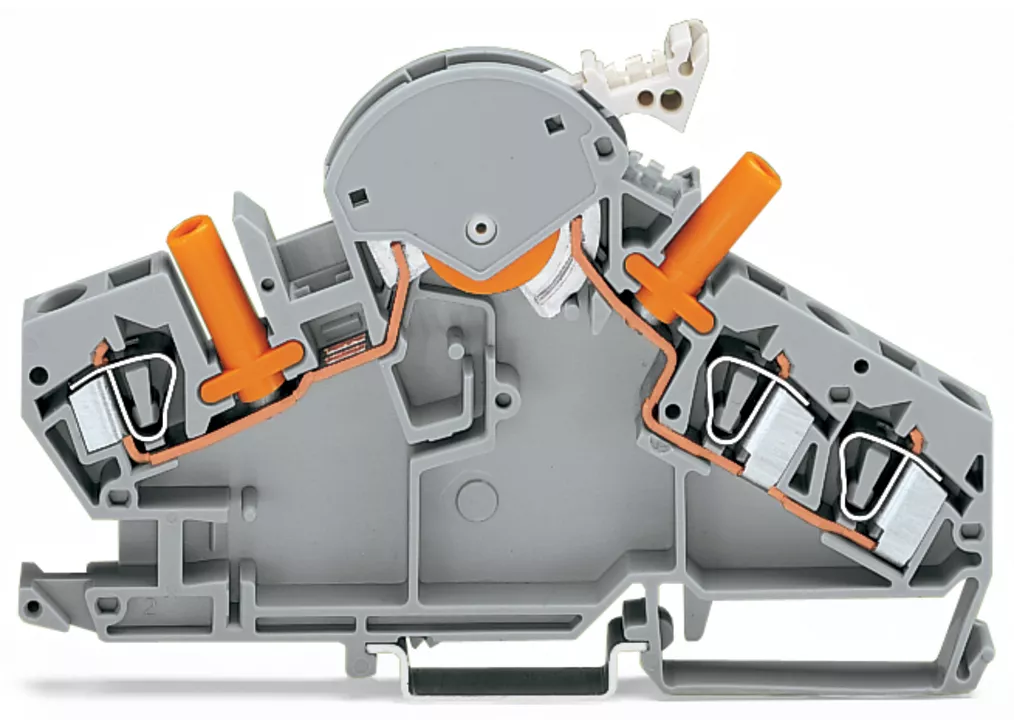

3-przewodowa złączka rozłączalno-pomiarowa np. do przekładników napięciowych z izolowanymi gniazdami pomiarowymi
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 282-860 |
GTIN(EAN) | 4044918651325 |
Price unit | piece |
Catalog price | 70,93 zł (57,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka rozłączalno-pomiarowa 3-przewodowa; np. do przekładników napięciowych; z izolowanymi gniazdami pomiarowymi; do wtyku pomiarowego Ø 4 mm; na szynę TS 35 x 15 i 35 x 7,5; 6 mm²; CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 43,19 g |
ETIM class: | (Knife) disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Rated current In: | 30 A |
Height: | 122 mm |
Number of levels: | 1 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 6 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.2 - 6 mm² |
Connectable conductor cross section solid-core: | 0.2 - 6 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 4 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 3 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 8 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 500 V |
Depth: | 75 mm |
With integrated test socket: | yes |
Type of slitting: | None |
Type of cross disconnection: | None |
