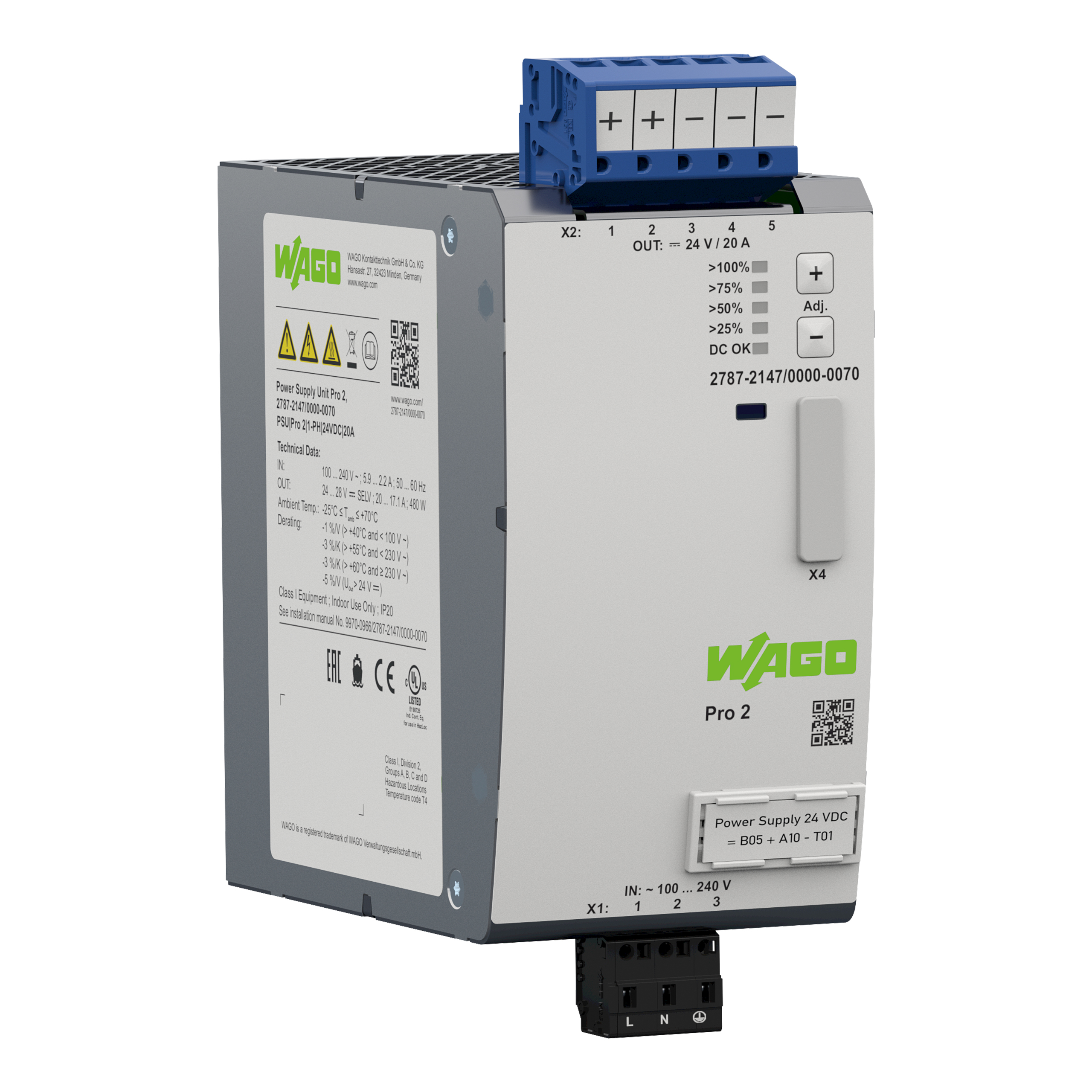

Zasilacz; Pro 2; 1-fazowy; napięcie wyjściowe 24 V DC; prąd wyjściowy 20 A; TopBoost + PowerBoost; lakierowana płytka drukowana; z możliwością komunikacji
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2787-2147/000-070 |
| GTIN(EAN) | 4066966125955 |
| Price unit | piece |
| Catalog price | 2 901,57 zł (2 359,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
zasilacz; Pro 2; 1-faz.; napięcie wyjściowe 24 V DC; prąd wyjściowy 20 A; TopBoost + PowerBoost; lakierowanie ochronne; z możliwością komunikacji
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,45 kg |
| ETIM class: | DC-power supply |
| Type of electric connection: | Spring clamp connection |
| 1st secondary output voltage: | 24 - 28 V |
| Short-circuit-proof: | yes |
| Width: | 70 mm |
| Depth: | 130 mm |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Suitable for safety functions: | no |
| Output voltage stabilized: | yes |
| Height: | 130 mm |
| Modular version: | no |
| Nominal value output current 1: | 20 A |
| Max. output current 1: | 20 A |
| Rated supply voltage AC 50 Hz: | 90 - 264 V |
| Rated supply voltage DC: | 130 - 240 V |
| Rated supply voltage AC 60 Hz: | 90 - 264 V |
| Degree of protection (IP): | IP20 |
| Secondary voltage adjustable: | yes |
| Stabilized: | yes |
| Voltage type (supply voltage): | DC |
| Nominal value output voltage 1: | 24 V |
| Direct mounting possible: | no |
| Width in number of modular spacings: | 4 |
