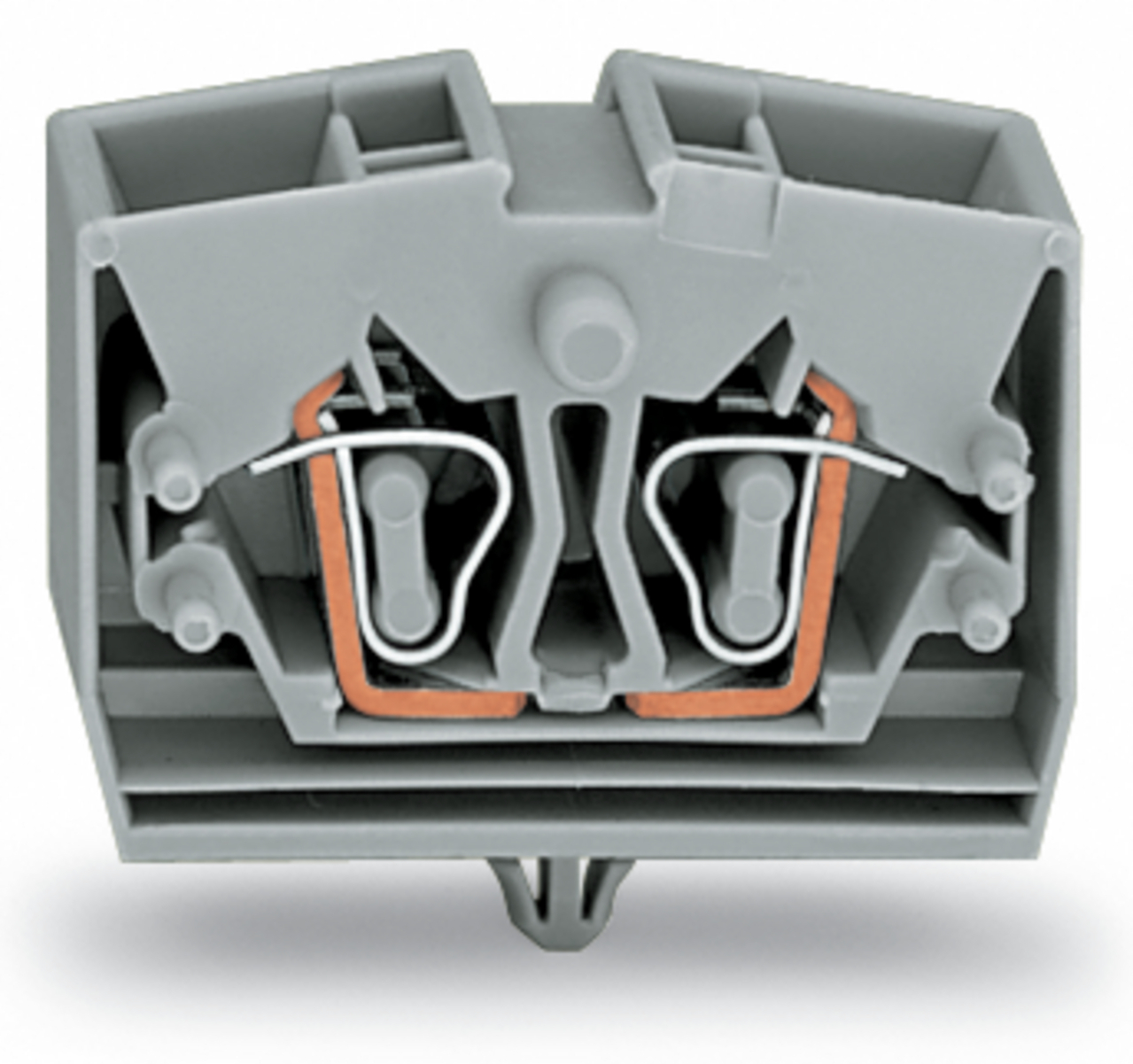

Złączka 4-przewodowa bez przycisków do zastosowań Ex e II, czarny
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 264-345 |
| GTIN(EAN) | 4055143326827 |
| Price unit | piece |
| Catalog price | 8,09 zł (6,58 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka 4-przewodowa; bez przycisków; do zastosowań Ex e II; ze stopką zatrzaskową; 1-bieg.; do płyty o grubości 0,6 ... 1,2 mm; otwór montażowy Ø 3,5 mm; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; czarny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 6,45 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 4 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 32 mm |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Halogen free: | yes |
| Mounting method: | Other |
| Rated current In: | 24 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Number of poles: | 1 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 10 mm |
| Rated voltage: | 800 V |
| Depth: | 22.1 mm |
