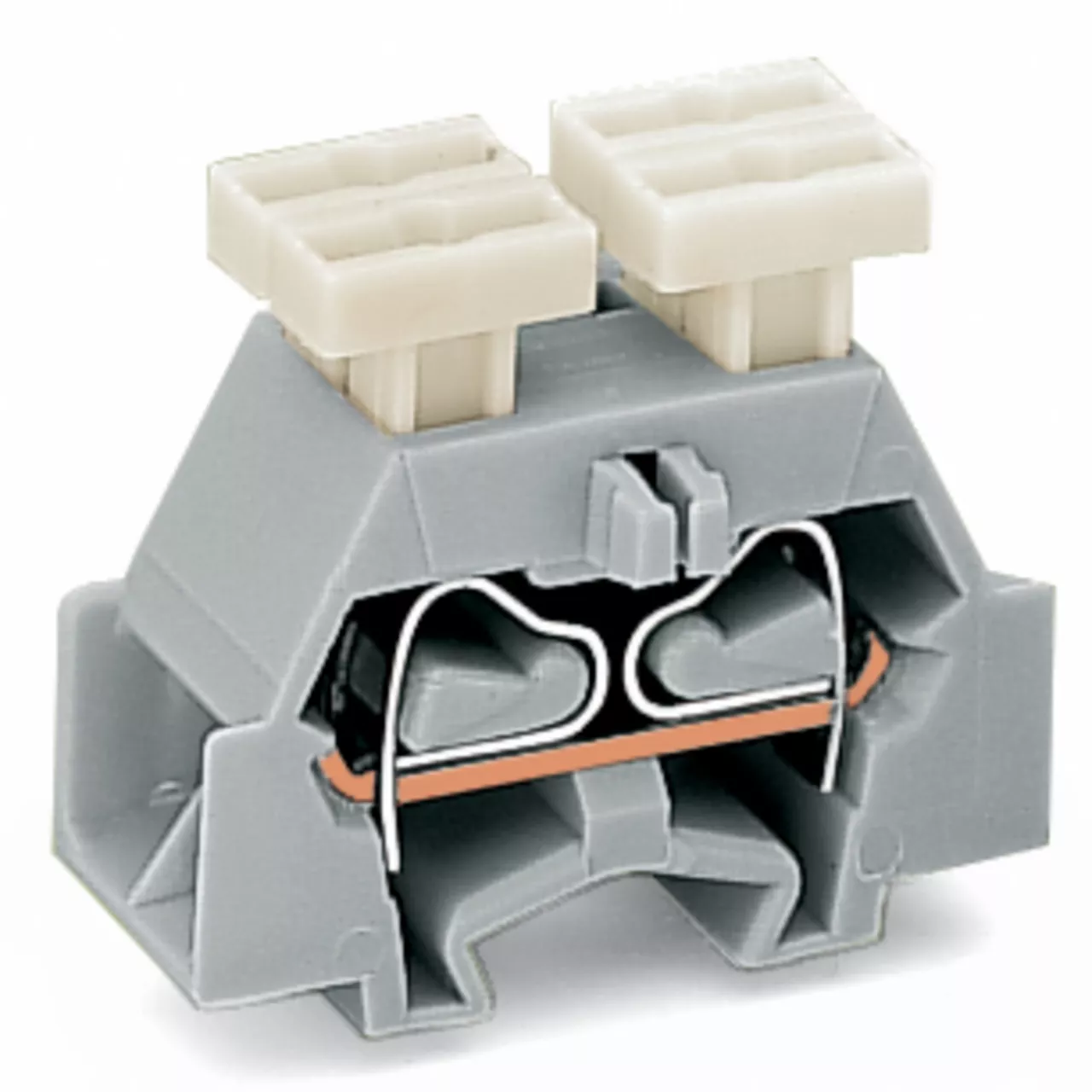

4-przewodowa złączka końcowa bez uchwytu przycisk po obu stronach, pomarańczowa
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 261-356/342-000 |
GTIN(EAN) | 4044918614016 |
Price unit | piece |
Catalog price | 5,90 zł (4,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka końcowa 4-przewodowa bez uchwytu montażowego; przyciski po obu stronach; bez uchwytu montażowego; 1-bieg.; do listew zaciskowych ze stopkami zatrzaskowymi; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; pomarańczowy
Additional features:
Information | Value |
---|---|
Net weight: | 4,36 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 4 |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 85 °C |
Height: | 28.1 mm |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Number of poles: | 1 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Orange |
Width: | 10 mm |
Rated voltage: | 500 V |
Depth: | 23.3 mm |
