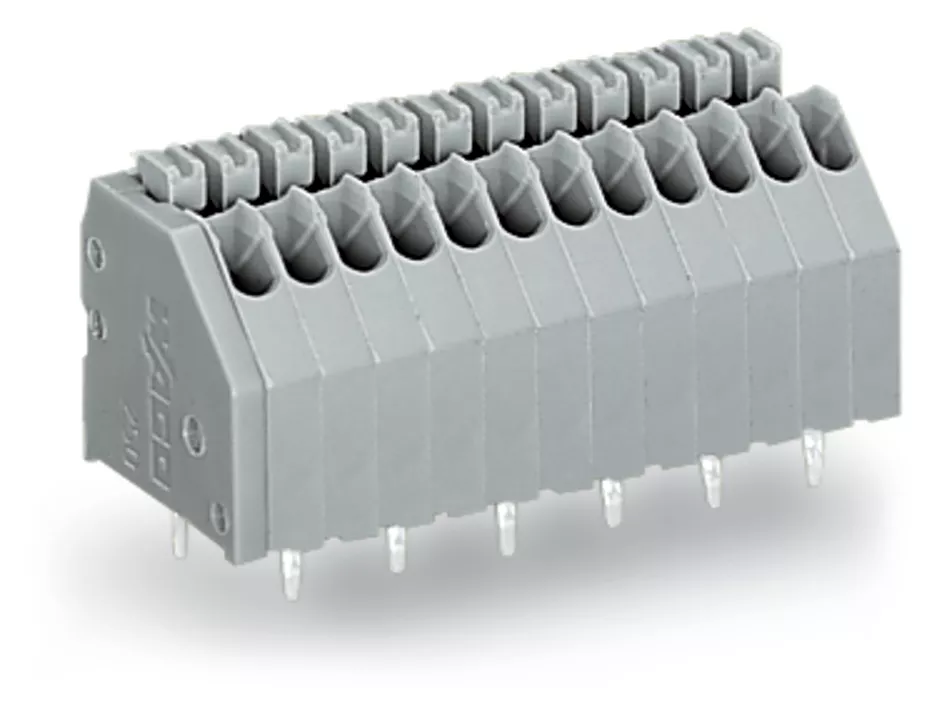

Złącze do PCB przycisk 0,5 mm² raster 2,5 mm 11-bieg., jasnoszary
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 250-411/000-009 |
| GTIN(EAN) | 4050821675327 |
| Price unit | piece |
| Catalog price | 15,15 zł (12,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
złącze do PCB; przycisk; 0,5 mm²; raster 2,5 mm; 11-bieg.; Push-in CAGE CLAMP®; 0,50 mm²; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,94 g |
| ETIM class: | Printed circuit board terminal |
| Type of PCB fastening: | Connecting contact |
| Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
| Pollution degree: | 2 |
| Connection type PCB: | Soldering connection |
| Connection type conductor: | Spring clamp connection |
| Material connection surface: | Tin |
| Type of banding: | None |
| Number of levels: | 1 |
| Number of electrical connections: | 11 |
| Rated voltage: | 160 V |
| Length pin: | 3.6 mm |
| Modular spacing connections: | 2.5 mm |
| Over voltage category: | III |
| Type of fastening: | Solder |
| Inflammability class of insulation material according to with UL94: | V0 |
| Connectable conductor cross section solid-core: | 0.14 - 0.5 mm² |
| Height: | 13.1 mm |
| Housing colour: | Grey |
| Operating temperature: | -60 - 105 °C |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section multi-wired: | 0.2 - 0.5 mm² |
| Rated surge voltage: | 2.5 kV |
| Rated current In: | 4 A |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 0.5 mm² |
