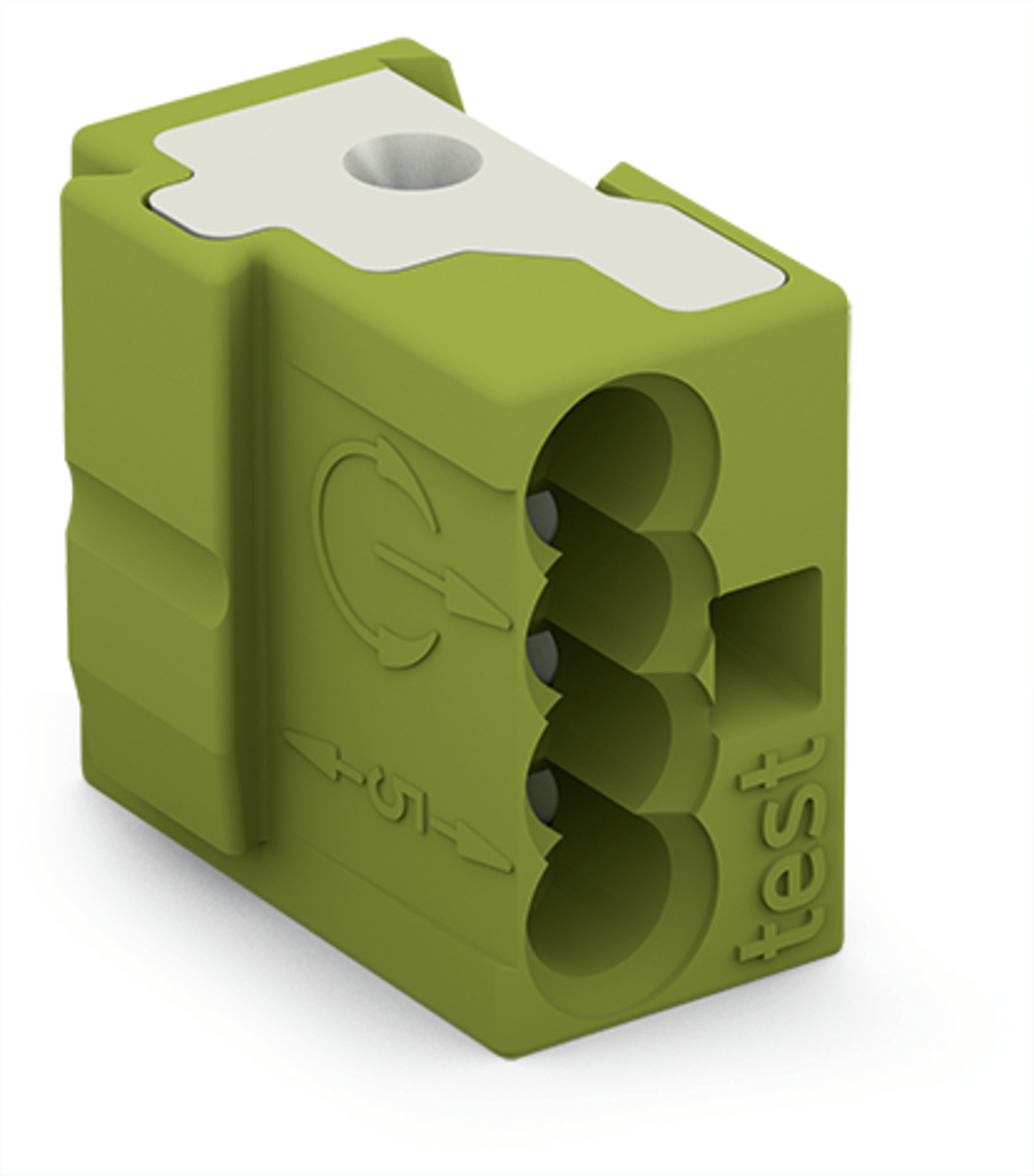

Gniazdo 4-przewodowe PUSH WIRE®, ciemnoszary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 243-725 |
GTIN(EAN) | 4055143963916 |
Price unit | piece |
Catalog price | 1,45 zł (1,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
gniazdo 4-przewodowe; PUSH WIRE®; Ø 0,8 mm; raster 5,75 mm; 1-bieg.; do pojedynczych pinów lutowniczych; ciemnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 0,76 g |
Country of origin | Niemcy |
ETIM class: | Printed circuit board terminal |
Type of PCB fastening: | Connecting contact |
Angle PCB/conductor connection: | 0°/180° (horizontal) |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Push-in clamp connection |
Material connection surface: | Tin |
Type of banding: | None |
Number of levels: | 1 |
Number of electrical connections: | 4 |
Rated voltage: | 320 V |
Diameter connection pin: | 1 mm |
Length pin: | 4.5 mm |
Modular spacing connections: | 5.75 mm |
Over voltage category: | III |
Type of fastening: | Solder |
Inflammability class of insulation material according to with UL94: | V0 |
Connectable conductor cross section solid-core: | 0.5 - 1 mm² |
Height: | 10 mm |
Housing colour: | Other |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Rated surge voltage: | 4 kV |
Rated current In: | 6 A |
