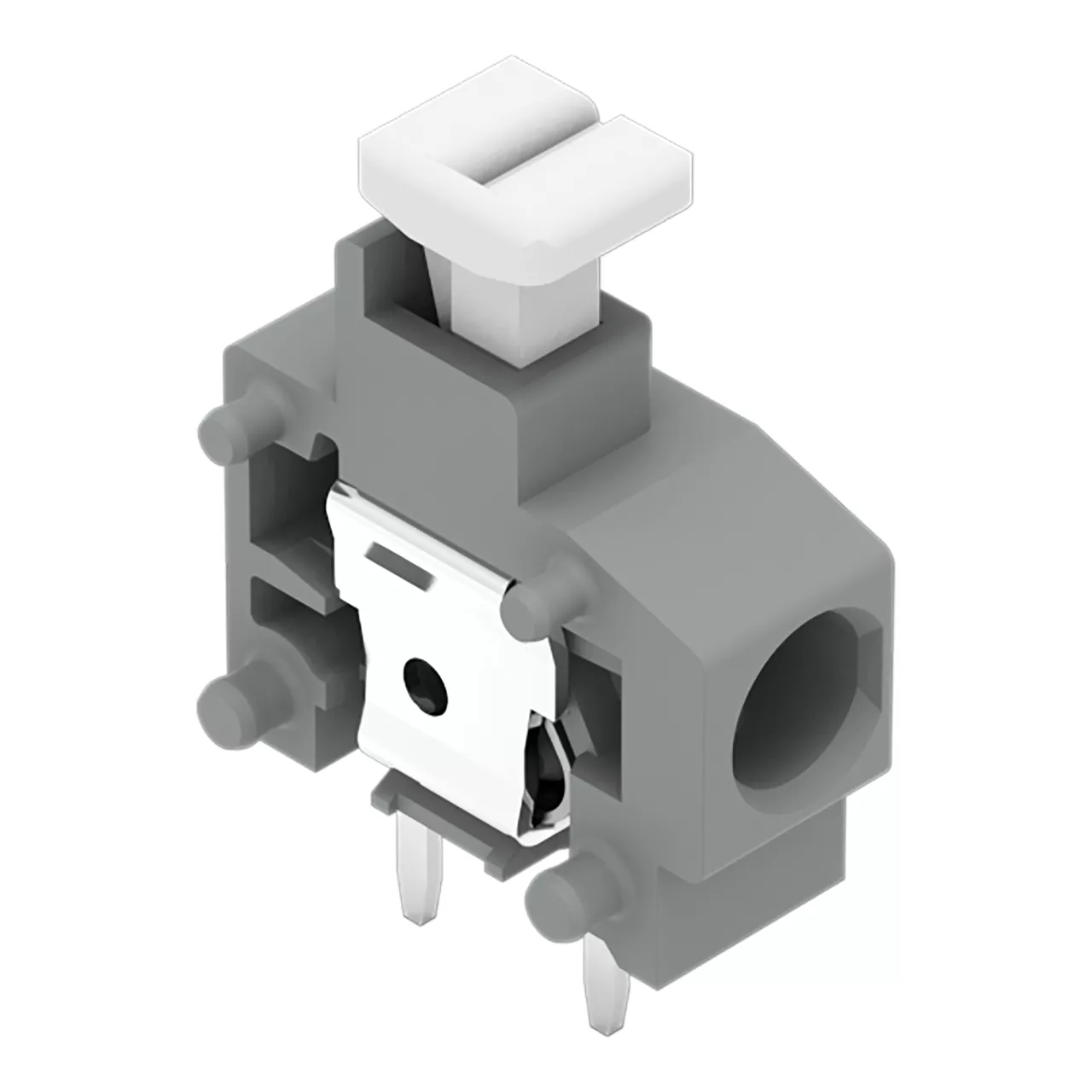

Złączka modułowa do PCB przycisk 1,5 mm² RASTER 5/5,08 mm 1-bieg., żółty
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 235-741/331-000 |
GTIN(EAN) | 4044918657310 |
Price unit | piece |
Catalog price | 1,91 zł (1,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka modułowa do PCB; przycisk; 1,5 mm²; raster 5/5,08 mm; 1-bieg.; Push-in CAGE CLAMP®; 1,50 mm²; żółty
Additional features:
Information | Value |
---|---|
Net weight: | 0,74 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Yellow |
Rated current In: | 17.5 A |
Material connection surface: | Tin |
Rated surge voltage: | 4 kV |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.75 - 1.5 mm² |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Spring clamp connection |

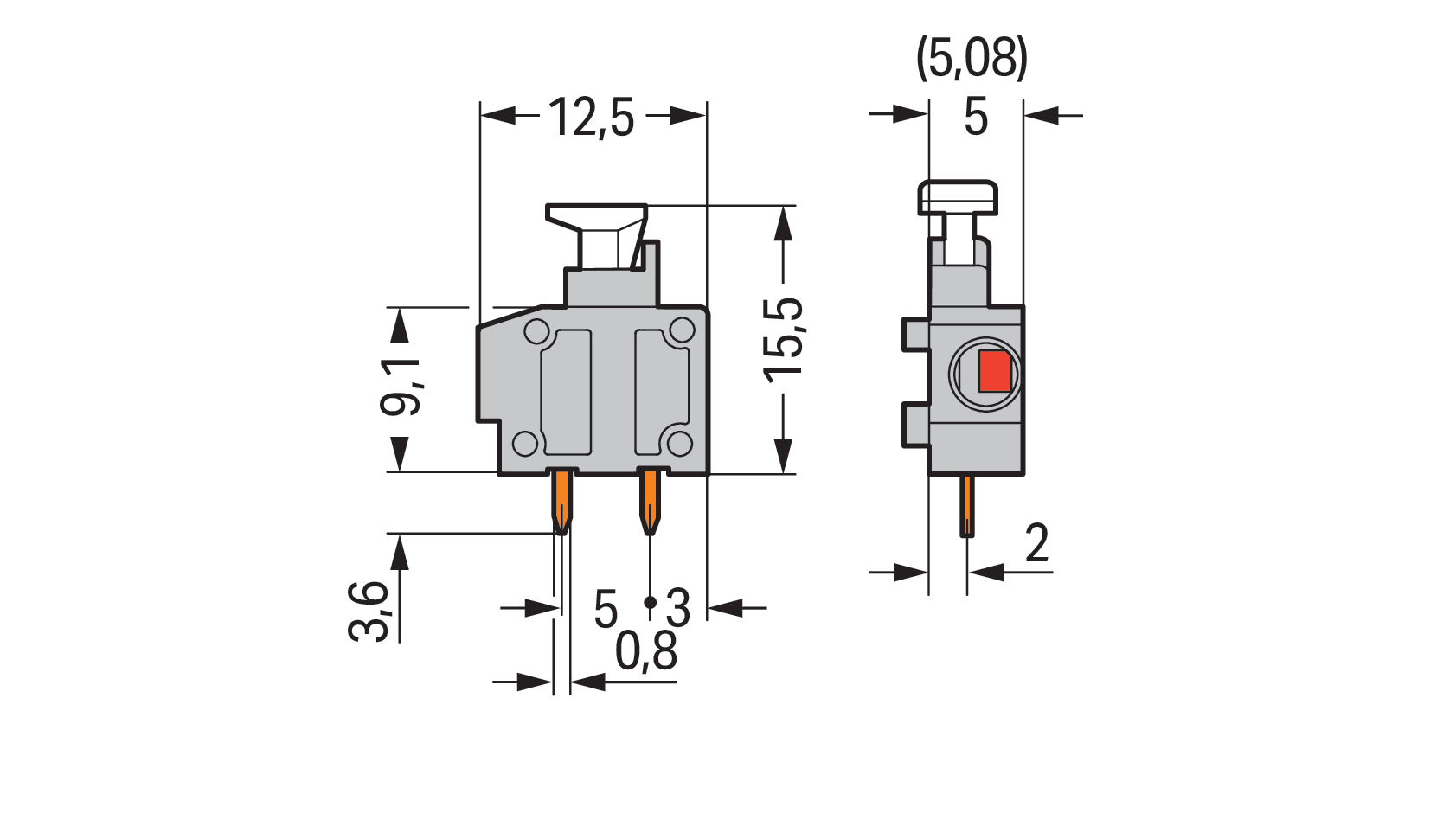

Length pin: | 3.6 mm |
Modular spacing connections: | 5 mm |
Type of banding: | None |
Over voltage category: | III |
Height: | 15.5 mm |
Connectable conductor cross section solid-core: | 0.2 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 0°/180° (horizontal) |
Number of electrical connections: | 1 |
