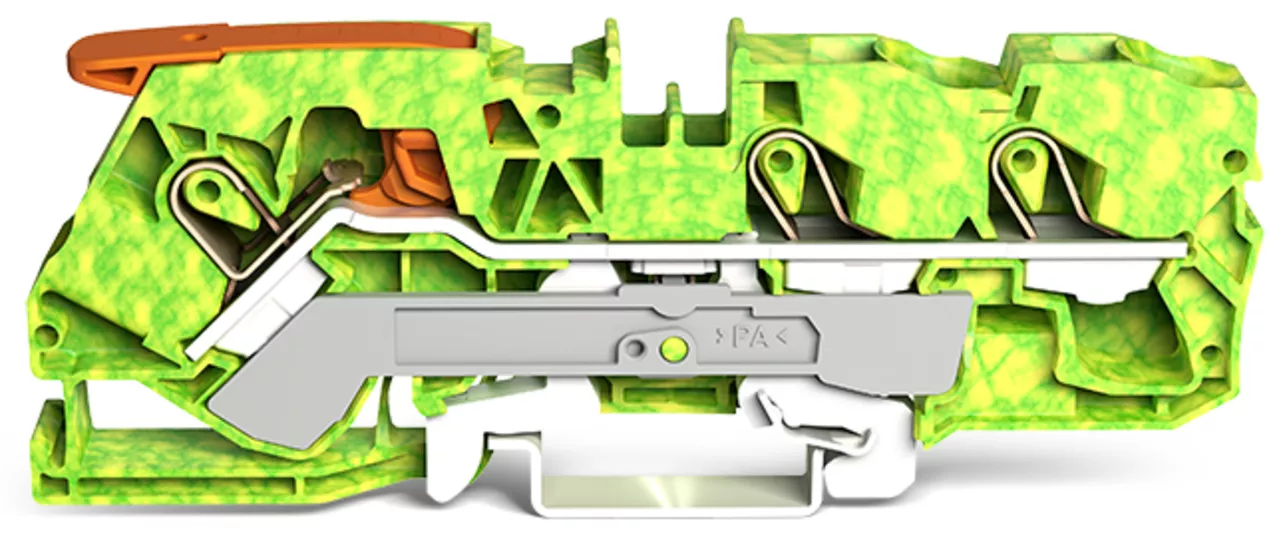

3-przewodowa złączka PE z dźwignią i Push-in CAGE CLAMP® 10 mm², żółto-zielony
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2110-1307 |
| GTIN(EAN) | 4055143904476 |
| Price unit | piece |
| Catalog price | 48,61 zł (39,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka PE 3-przewodowa; z dźwignią i Push-in CAGE CLAMP®; 10 mm²; z otworem pomiarowym; opis z boku i na środku; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 10,00 mm²; żółto-zielony
Additional features:
| Information | Value |
|---|---|
| Net weight: | 43,59 g |
| ETIM class: | Ground terminal block |
| Operating temperature: | 110 - 110 °C |
| PEN function possible: | no |
| Height: | 110.4 mm |
| Number of levels: | 1 |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 16 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.5 - 16 mm² |
| Connectable conductor cross section solid-core: | 4 - 16 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 4 - 10 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 3 |
| Colour: | Green/yellow |
| Width: | 10 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Depth: | 36.9 mm |
