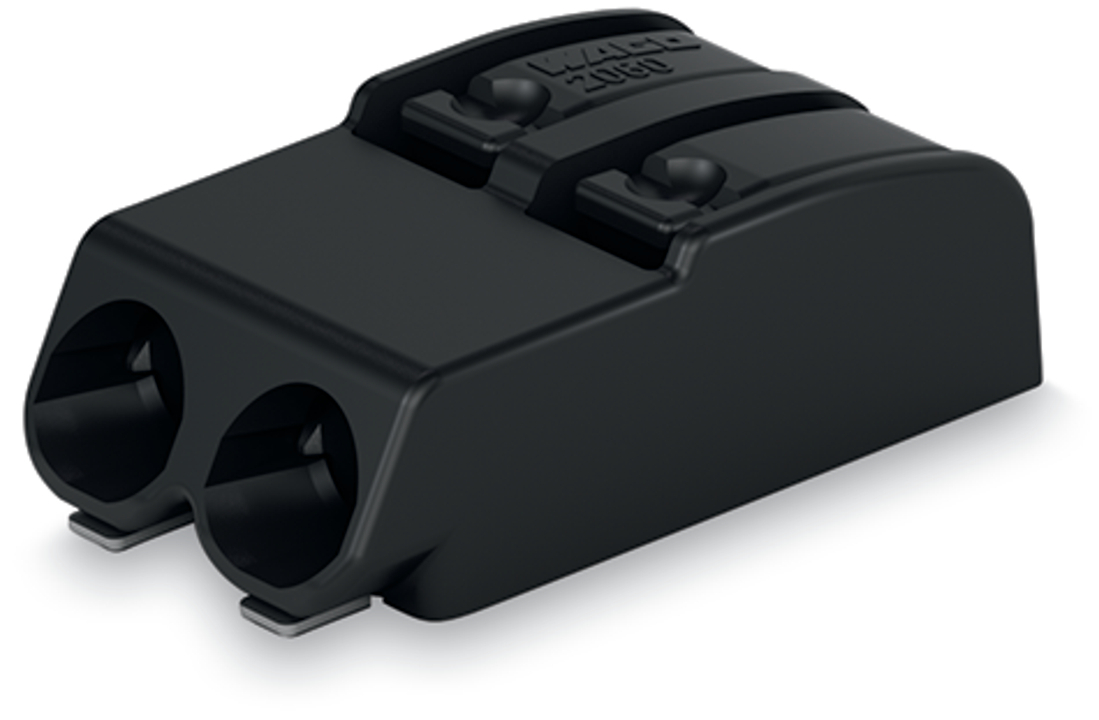

Złączka SMD do płytek drukowanych przycisk 0,75 mm² raster 4mm 2-bieg., czarna
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2060-472/998-404 |
| GTIN(EAN) | 4055143251181 |
| Price unit | piece |
| Catalog price | 3,46 zł (2,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

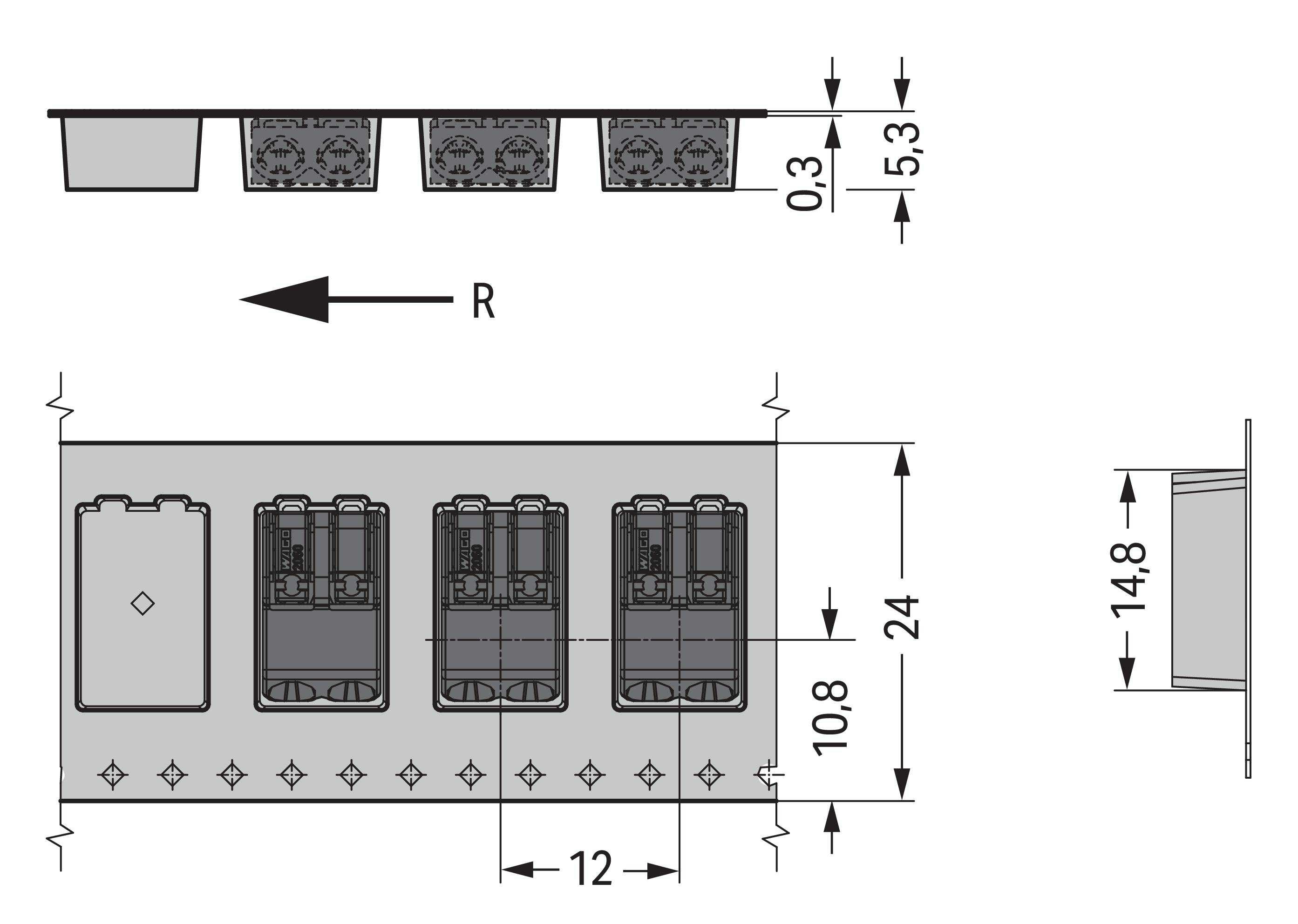

złączka SMD do PCB; przycisk; 0,75 mm²; raster 4 mm; 2-bieg.; Push-in CAGE CLAMP®; w rolce; 0,75 mm²; czarny
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 1 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 105 °C |
| Height: | 4.5 mm |
| Connectable conductor cross section solid-core: | 0.2 - 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 0.34 mm² |
| Mounting method: | Other |
| Rated current In: | 9 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 0.75 mm² |
| Connectable conductor cross section multi-wired: | 0.2 - 0.75 mm² |
| Number of poles: | 2 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Black |
| Width: | 4 mm |
| Rated voltage: | 160 V |
| Depth: | 13.1 mm |
