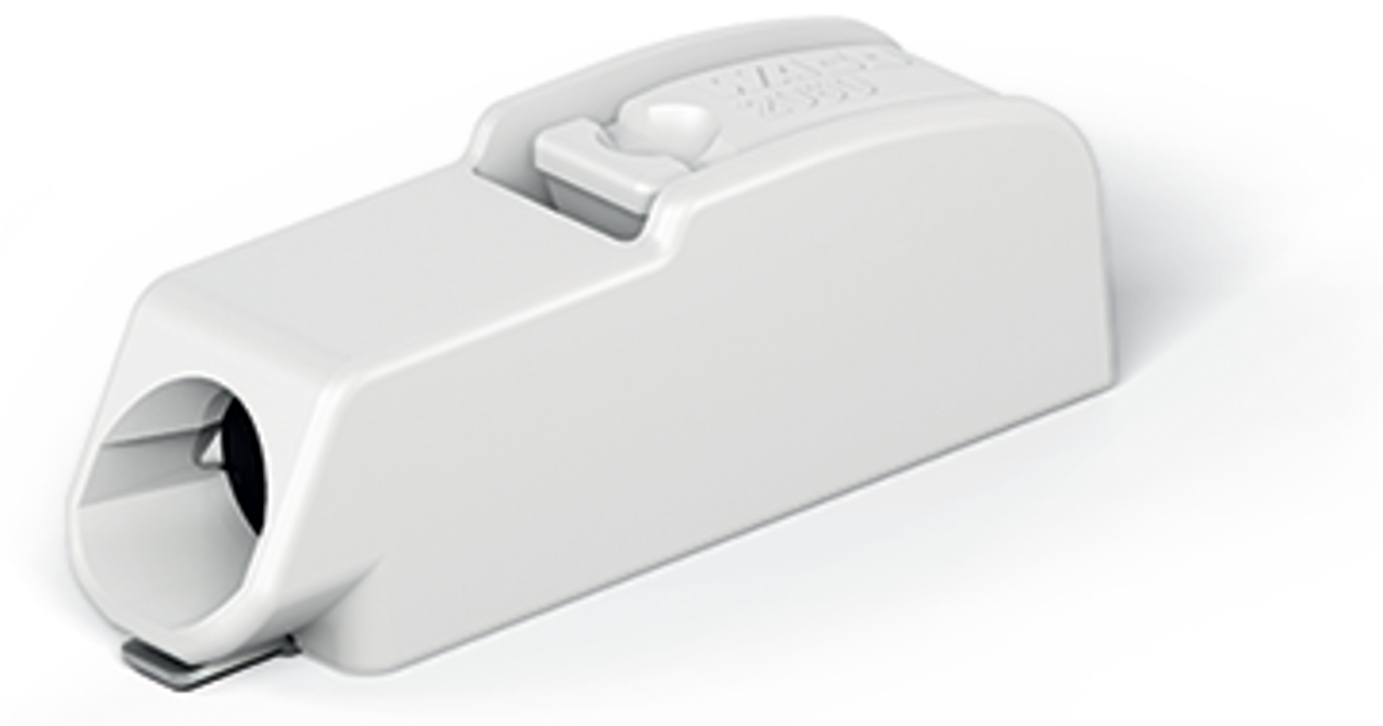

Złączka SMD do płytek drukowanych przycisk 0,75 mm² raster 4mm 1-bieg., biała
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2060-451/998-404 |
GTIN(EAN) | 4055143541237 |
Price unit | piece |
Catalog price | 2,20 zł (1,79 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

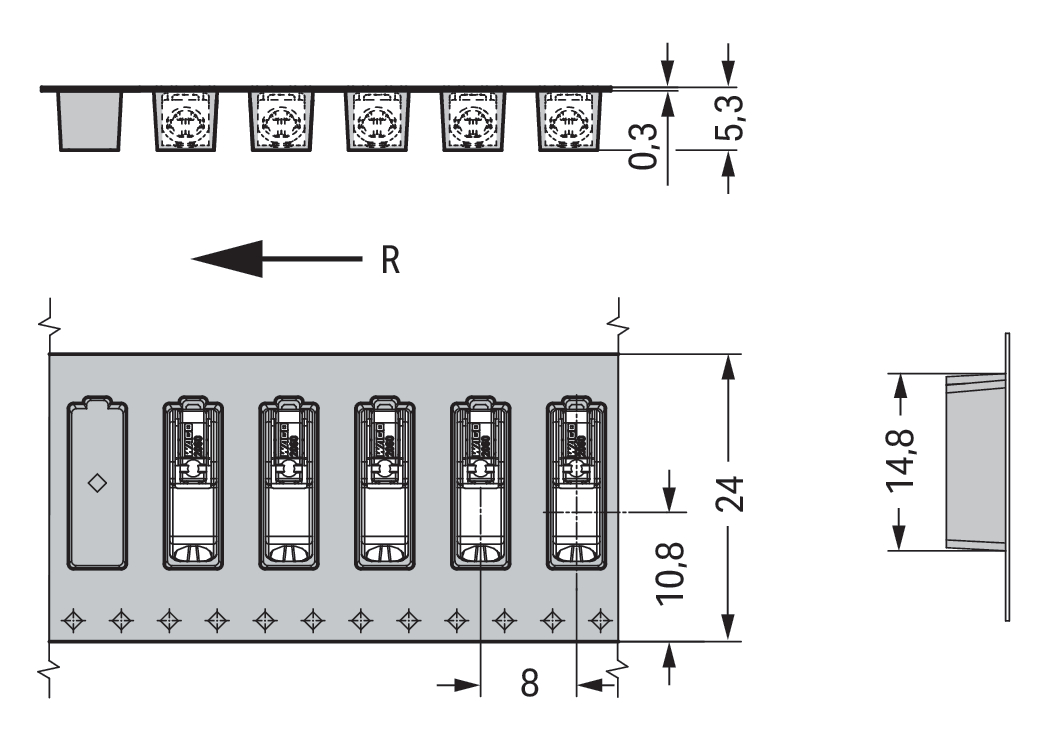

złączka SMD do PCB; przycisk; 0,75 mm²; raster 4 mm; 1-bieg.; Push-in CAGE CLAMP®; w rolce; 0,75 mm²; biały
Additional features:
Information | Value |
---|---|
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 105 °C |
Height: | 4.5 mm |
Connectable conductor cross section solid-core: | 0.2 - 0.75 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 0.34 mm² |
Mounting method: | Other |
Rated current In: | 9 A |
Inflammability class of insulation material according to with UL94: | V0 |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 0.75 mm² |
Connectable conductor cross section multi-wired: | 0.2 - 0.75 mm² |
Number of poles: | 1 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | White |
Width: | 3.9 mm |
Rated voltage: | 160 V |
Depth: | 13.1 mm |
