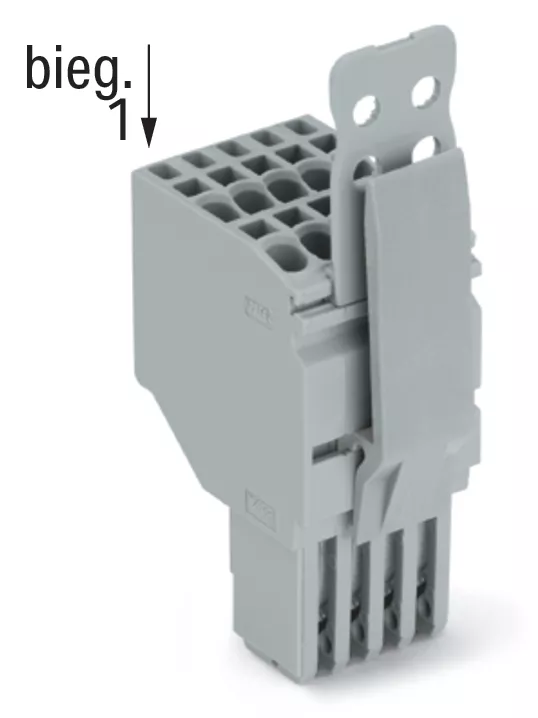

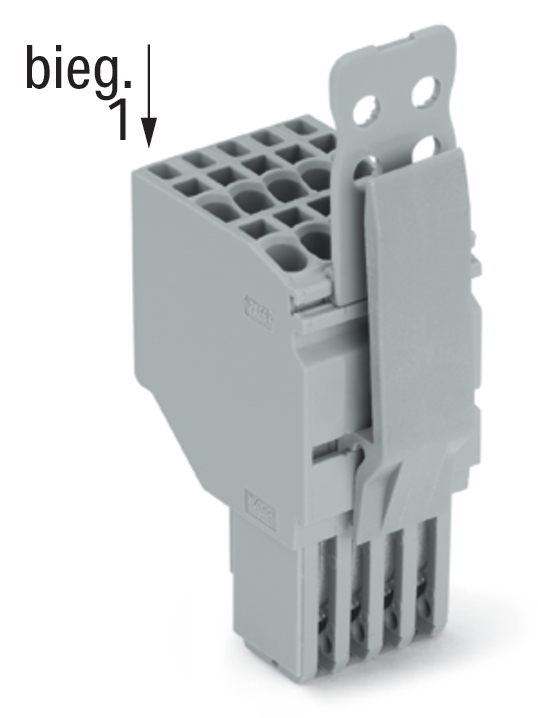

Gniazdo 2-przewodowe Push-in CAGE CLAMP®, szary
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2020-208/144-000 |
| GTIN(EAN) | 4066966420258 |
| Price unit | piece |
| Catalog price | 84,11 zł (68,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo 2-przewodowe; Push-in CAGE CLAMP®; 1,5 mm²; raster 3,5 mm; 8-bieg.; środkowy zaczep ryglujący; płytka odciążająca przewody; 1,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 23,43 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 2 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 25 mm |
| Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
| Halogen free: | yes |
| Mounting method: | Other |
| Rated current In: | 13.5 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
| Number of poles: | 8 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 28.7 mm |
| Rated voltage: | 500 V |
| Depth: | 64 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-04 09:01:27 |
| Files to download: | |
| External links: |
