Złączka rozgałęźna z otworem montażowym 1 x 6 mm² / 6 x 1,5 mm², żółty
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2006-8036 |
GTIN(EAN) | 4066966379020 |
Price unit | piece |
Catalog price | 36,54 zł (29,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

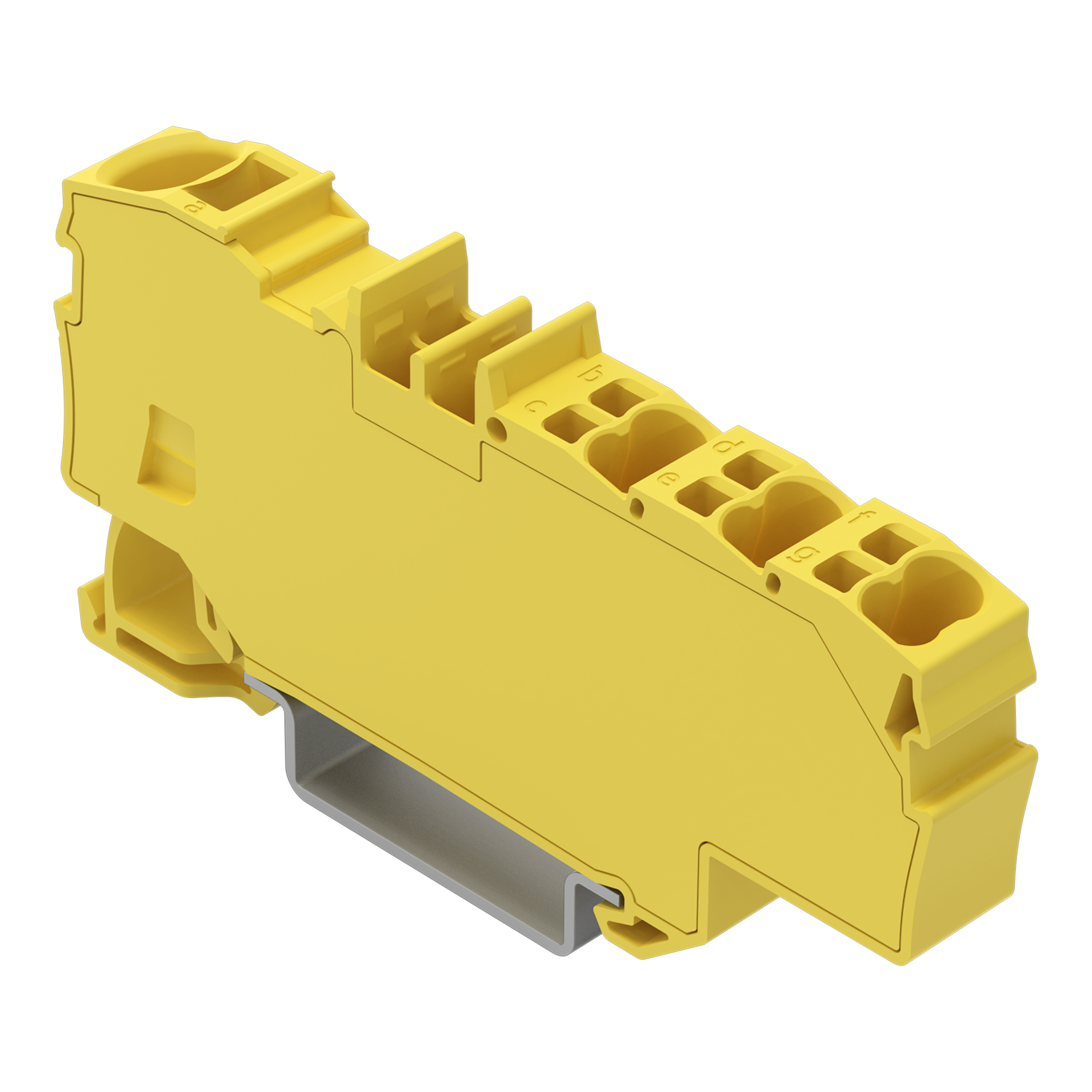

złączka rozgałęźna; z otworem montażowym; 1 x 6 mm² / 6 x 1,5 mm²; ze zintegrowaną ścianką końcową; opis z boku i na środku; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 6,00 mm²; żółty
Additional features:
Information | Value |
---|---|
Net weight: | 16,19 g |
ETIM class: | Feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 73.8 mm |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 41 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Explosion-tested version 'Ex e': | no |
Number of clamp positions per level: | 7 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 9 mm |
Rated voltage: | 800 V |
Depth: | 32.9 mm |
