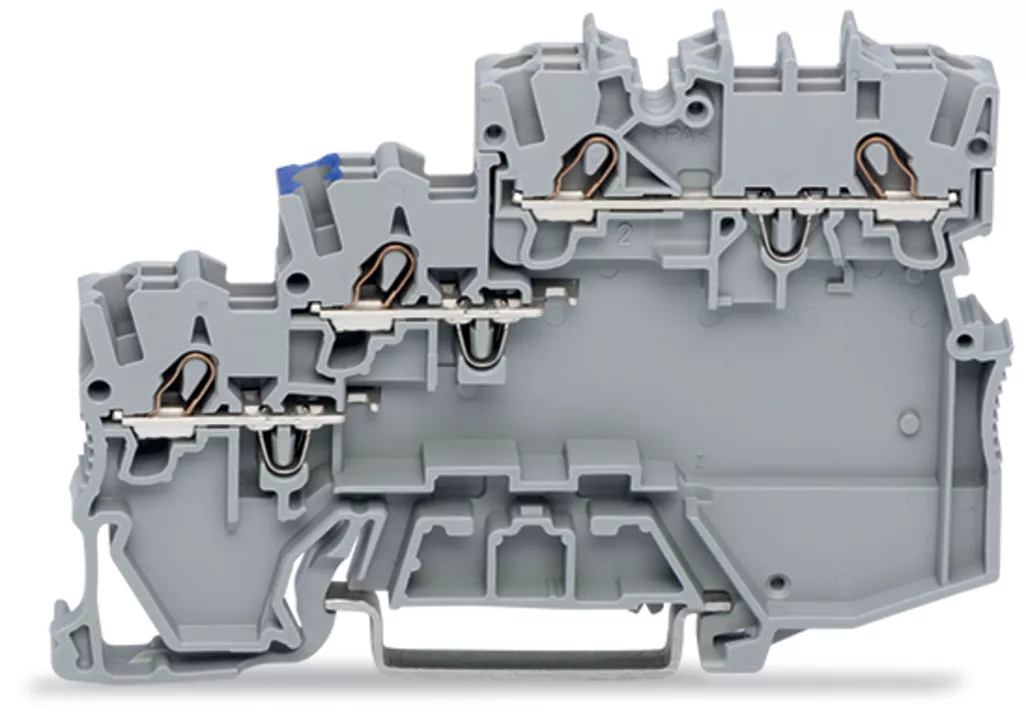

3-przewodowa złączka do elementów wykona do elementów wykonawczych typu PNP z PE przez mostek grzebieniowy, szara
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2000-5310/102-000 |
GTIN(EAN) | 4055143393454 |
Price unit | piece |
Catalog price | 37,90 zł (30,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka sygnałowa 3-piętrowa; typu PNP; z przyłączem PE, bez stopki PE; z otworami na przew. z kolor. nadrukiem; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 14,91 g |
ETIM class: | Sensor/actuator terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Rated current In: | 13.5 A |
Closing plate required: | yes |
Cross connectable: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 7 mm |
Rated voltage: | 250 V |
Depth: | 52.4 mm |
Disconnect function: | no |
Height: | 81.1 mm |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
With PE connection: | yes |
With shield connection: | no |
Inflammability class of insulation material according to with UL94: | V0 |
With power supply function: | no |
LED switching for: | PNP |
Number of levels: | 3 |
Explosion-tested version 'Ex e': | no |
