2-przewodowa złączka PE 6 mm², żółto-zielona 2007-8807
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2007-8807 |
GTIN(EAN) | 4055143074773 |
Price unit | piece |
Catalog price | 52,48 zł (42,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

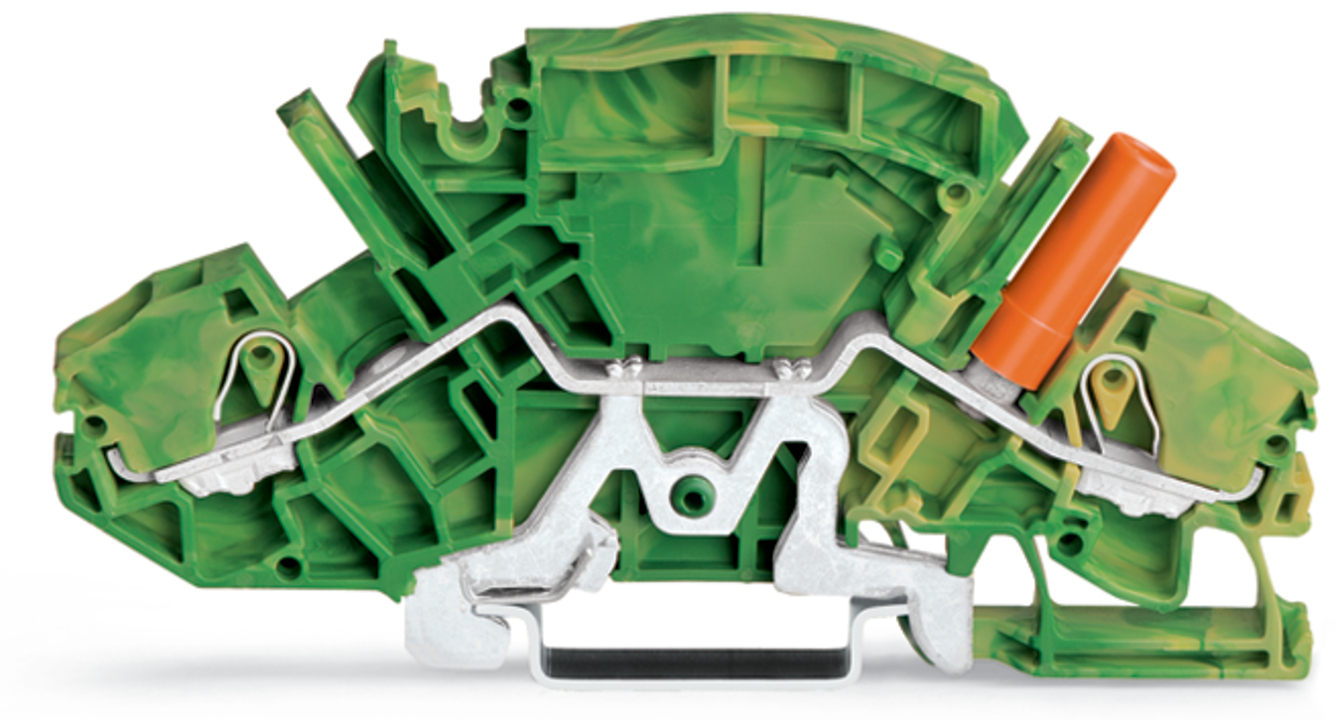

złączka PE 2-przewodowa; 6 mm²; z izolowanym gniazdem pomiarowym; do wtyku pomiarowego Ø 4 mm; opis z boku i na środku; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 6,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 30,01 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
PEN function possible: | no |
Height: | 99.6 mm |
Number of levels: | 1 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 8 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Depth: | 46.8 mm |
