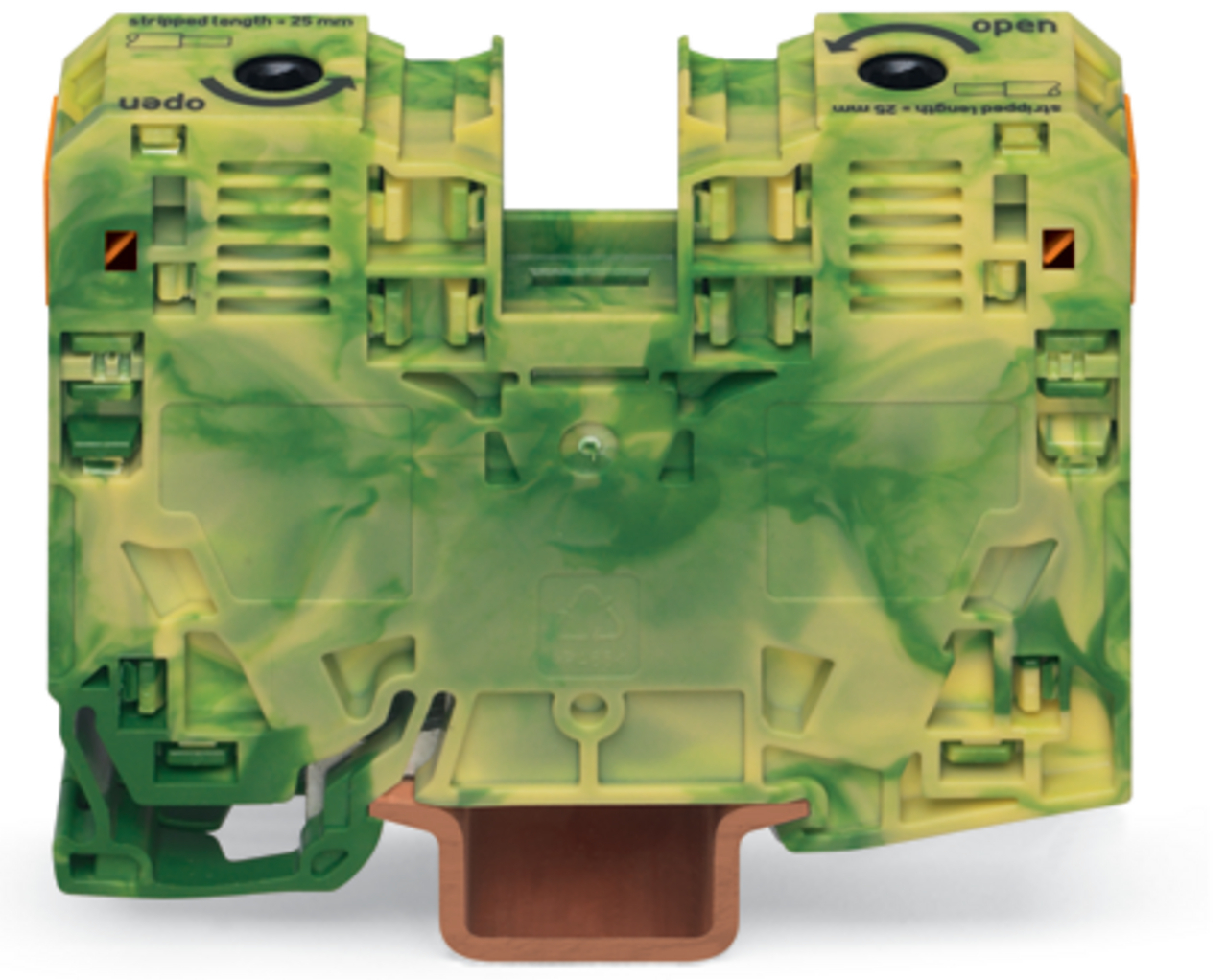

2-przewodowa złączka PE 35mm², żółto-zielona 285-137
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 285-137 |
GTIN(EAN) | 4045454507404 |
Price unit | piece |
Catalog price | 82,56 zł (67,12 zł + 23% VAT) |
Sale price | from 30,06 zł (24,44 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka PE 2-przewodowa; 35 mm²; boczne miejsca na oznaczniki; tylko na szynę TS 35 x 15; POWER CAGE CLAMP; 35,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 108,3 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
PEN function possible: | yes |
Height: | 86 mm |
Number of levels: | 1 |
Closing plate required: | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 6 - 35 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 6 - 35 mm² |
Connectable conductor cross section solid-core: | 6 - 35 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 6 - 35 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 16 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Depth: | 63 mm |
