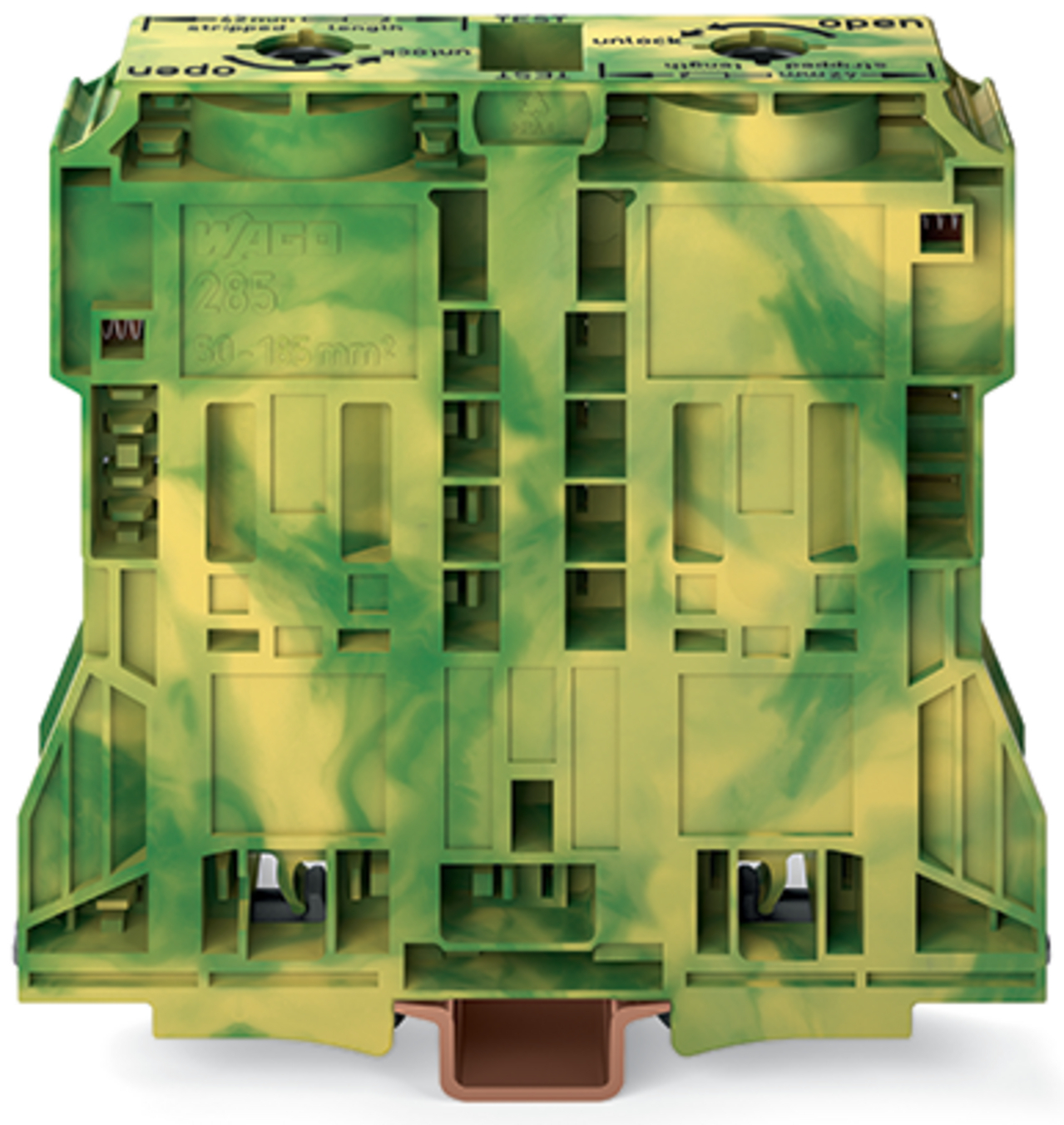

2-przewodowa złączka PE 120 mm², żółto-zielona 285-1187
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 285-1187 |
GTIN(EAN) | 4055143067072 |
Price unit | piece |
Catalog price | 466,05 zł (378,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka PE 2-przewodowa; 120 mm²; boczne miejsca na oznaczniki; tylko na szynę TS 35 x 15; grubość 2,3 mm; miedź; POWER CAGE CLAMP; 120,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 645,4 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
PEN function possible: | yes |
Height: | 130 mm |
Number of levels: | 1 |
Closing plate required: | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 50 - 185 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 50 - 185 mm² |
Connectable conductor cross section solid-core: | 50 - 185 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 50 - 185 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 32 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Depth: | 116 mm |
