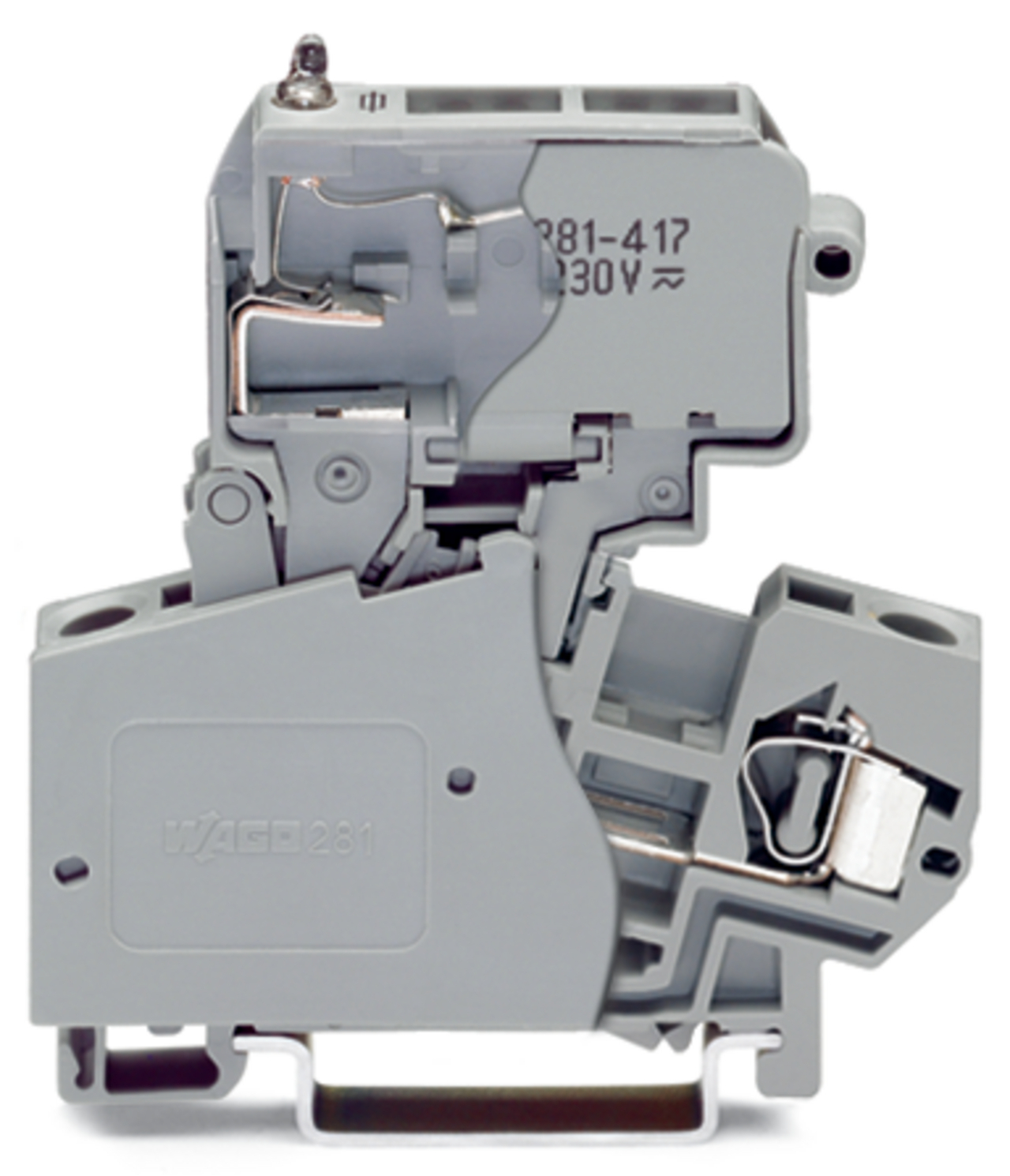

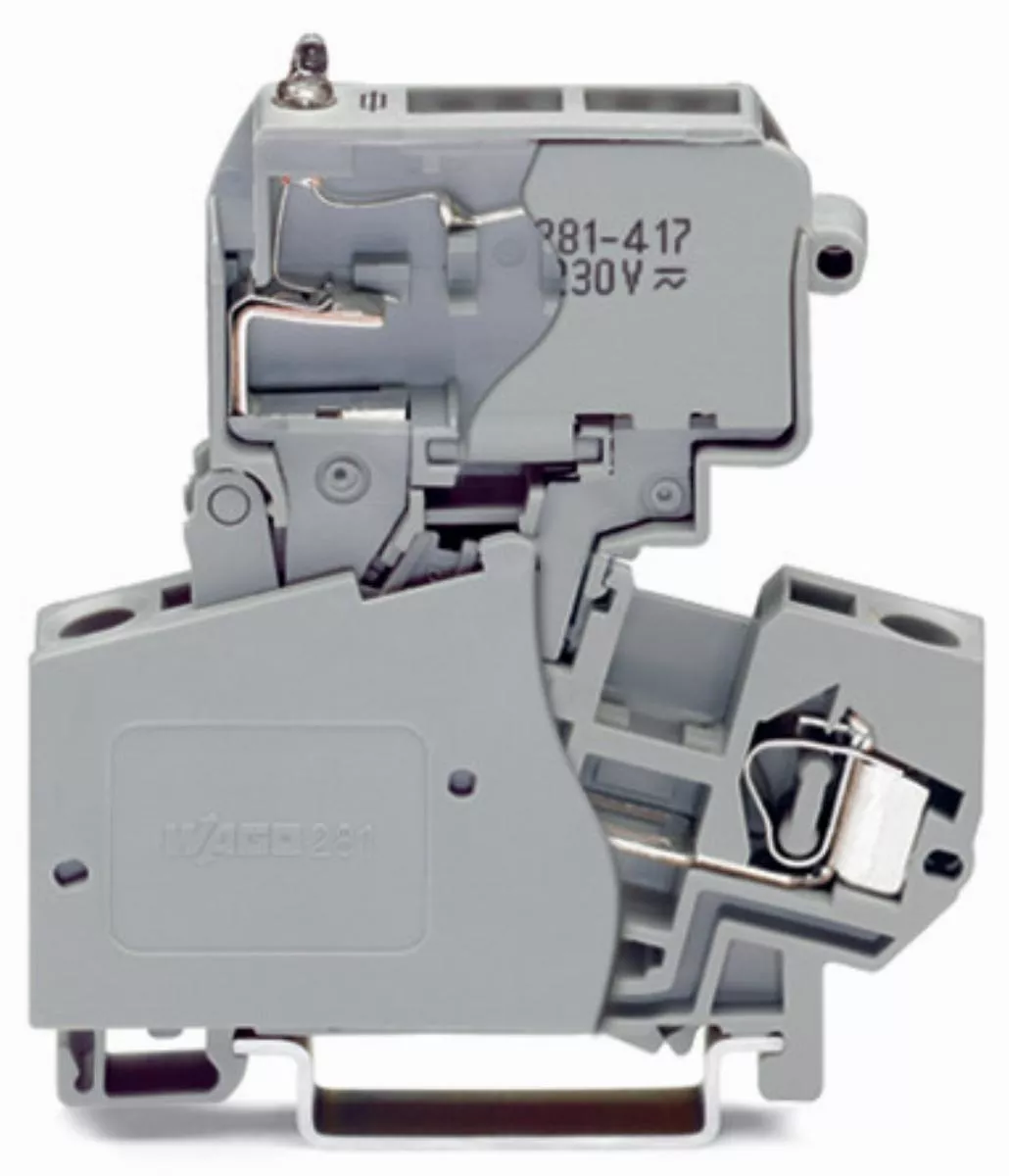

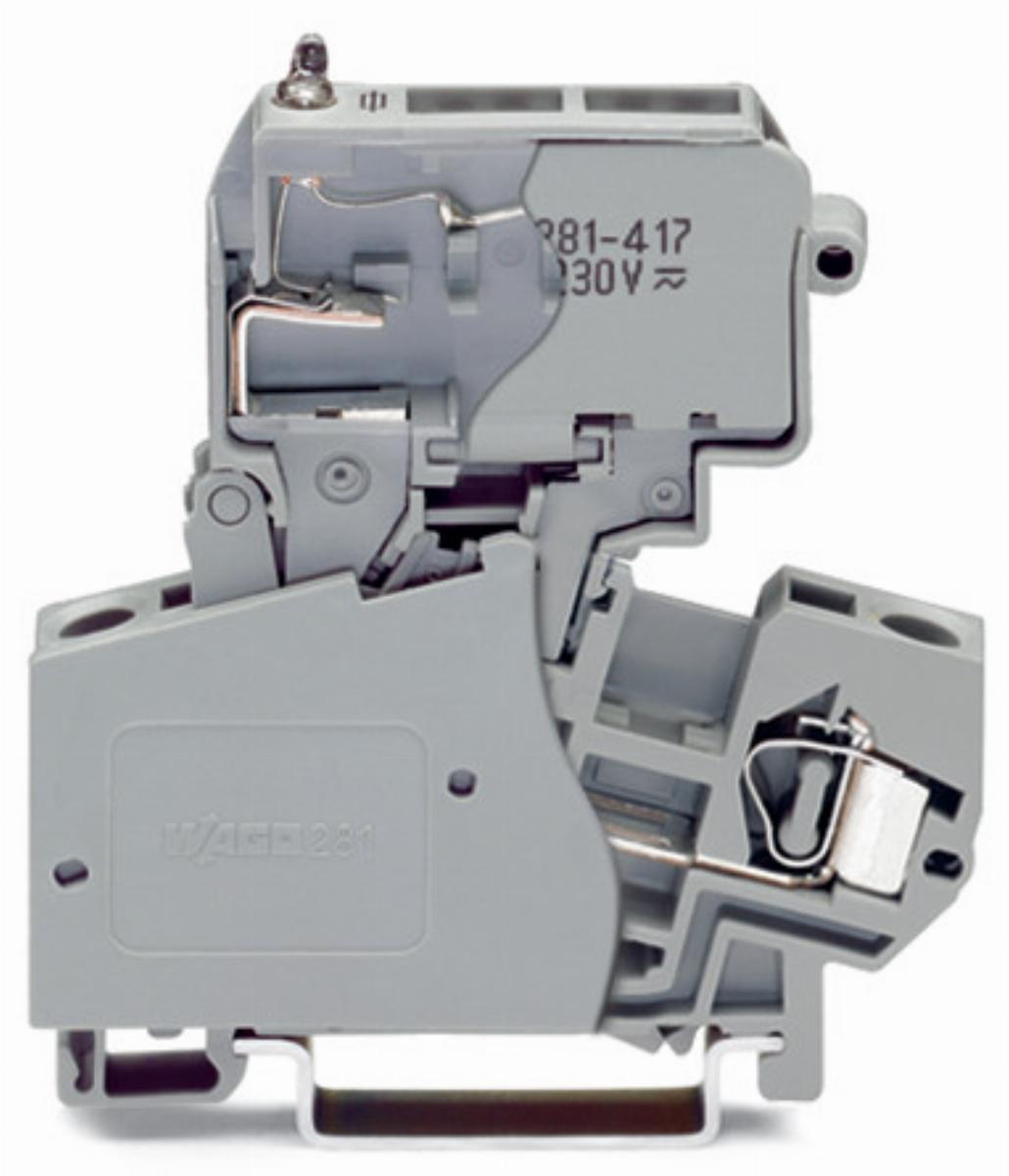

2-przewodowa złączka bezpiecznikowa z uchylną podstawką bezpiecznika, szara 281-623/281-417
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 281-623/281-417 |
| GTIN(EAN) | 4045454197117 |
| Price unit | piece |
| Catalog price | 89,46 zł (72,73 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka bezpiecznikowa 2-przewodowa; z uchylną podstawką bezpiecznika; do aparatowej wkładki bezpiecznikowej ¼" x 1¼"; z sygnalizacją przepalenia wkładki przez neonówkę; 230 V; na szynę TS 35 x 15 i 35 x 7,5; 4 mm²; CAGE CLAMP®; 4,00 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 20,04 g |
| ETIM class: | Fuse terminal block |
| Operating temperature: | 105 - 105 °C |
| Voltage type for defect indication: | AC/DC |
| Rated current In: | 10 A |
| Height: | 60 mm |
| Number of levels: | 1 |
| Closing plate required: | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Colour: | Grey |
| Width: | 10 mm |
| Type of indication element for defect indication: | Glow lamp |
| Type of fuse insert: | Other |
| Type of fuse holder: | Swivelling |
| Supply voltage for defect-indication: | 230 - 230 V |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 800 V |
| Depth: | 60 mm |
