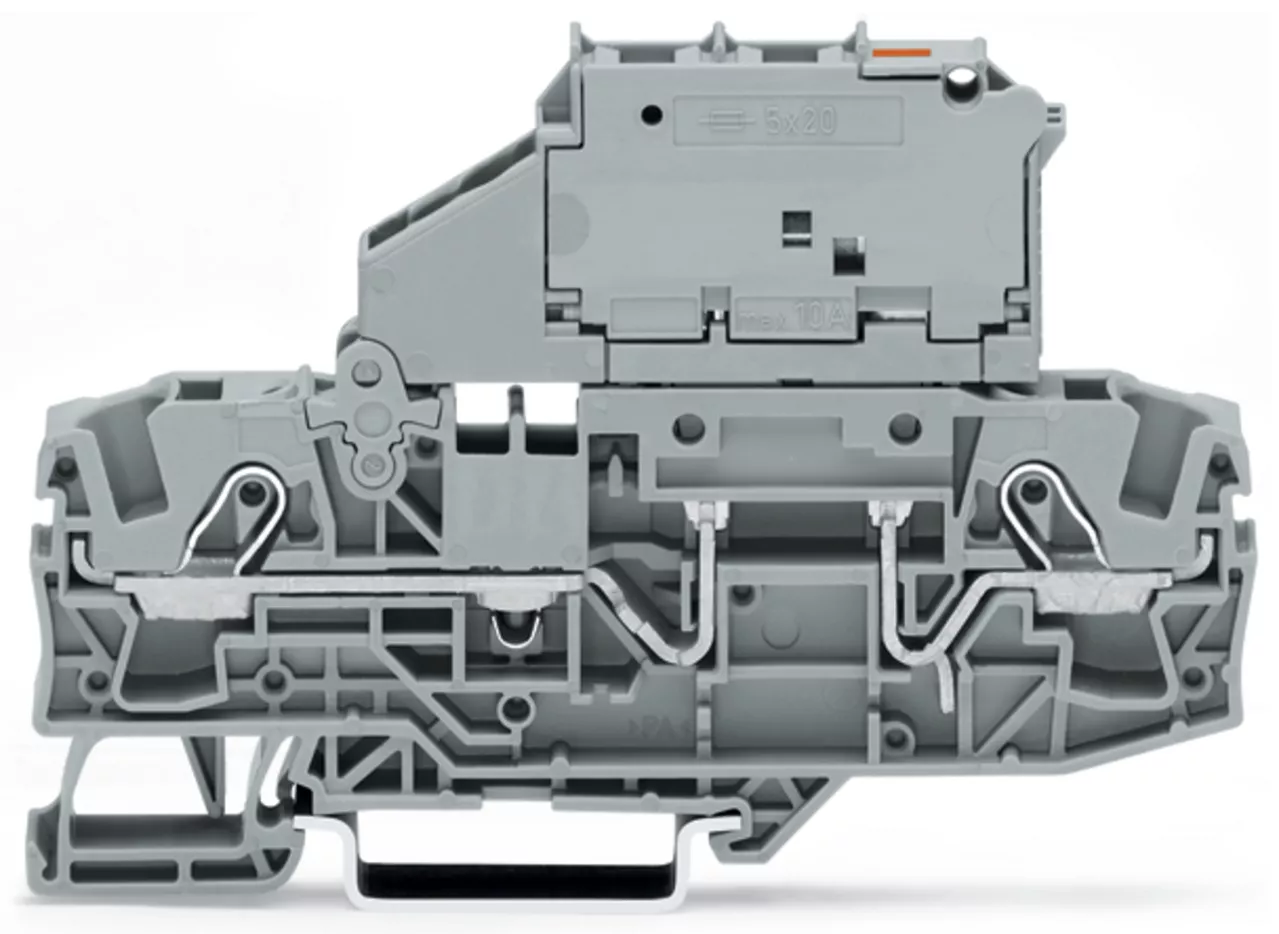

2-przewodowa złączka bezpiecznikowa z uchylną podstawką bezpiecznika, szara 2006-1611/1000-541
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2006-1611/1000-541 |
GTIN(EAN) | 4045454823962 |
Price unit | piece |
Catalog price | 79,97 zł (65,02 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 25 g |
ETIM class: | Fuse terminal block |
Operating temperature: | 105 - 105 °C |
Voltage type for defect indication: | AC |
Rated current In: | 10 A |
Height: | 96.3 mm |
Number of levels: | 1 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Colour: | Grey |
Width: | 7.5 mm |
Type of indication element for defect indication: | LED |
Type of fuse insert: | G-fuse 5x20 mm |
Type of fuse holder: | Swivelling |
Supply voltage for defect-indication: | 12 - 30 V |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 800 V |
Depth: | 59 mm |
Buy online
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:04:24 |
Files to download: | |
External links: |
