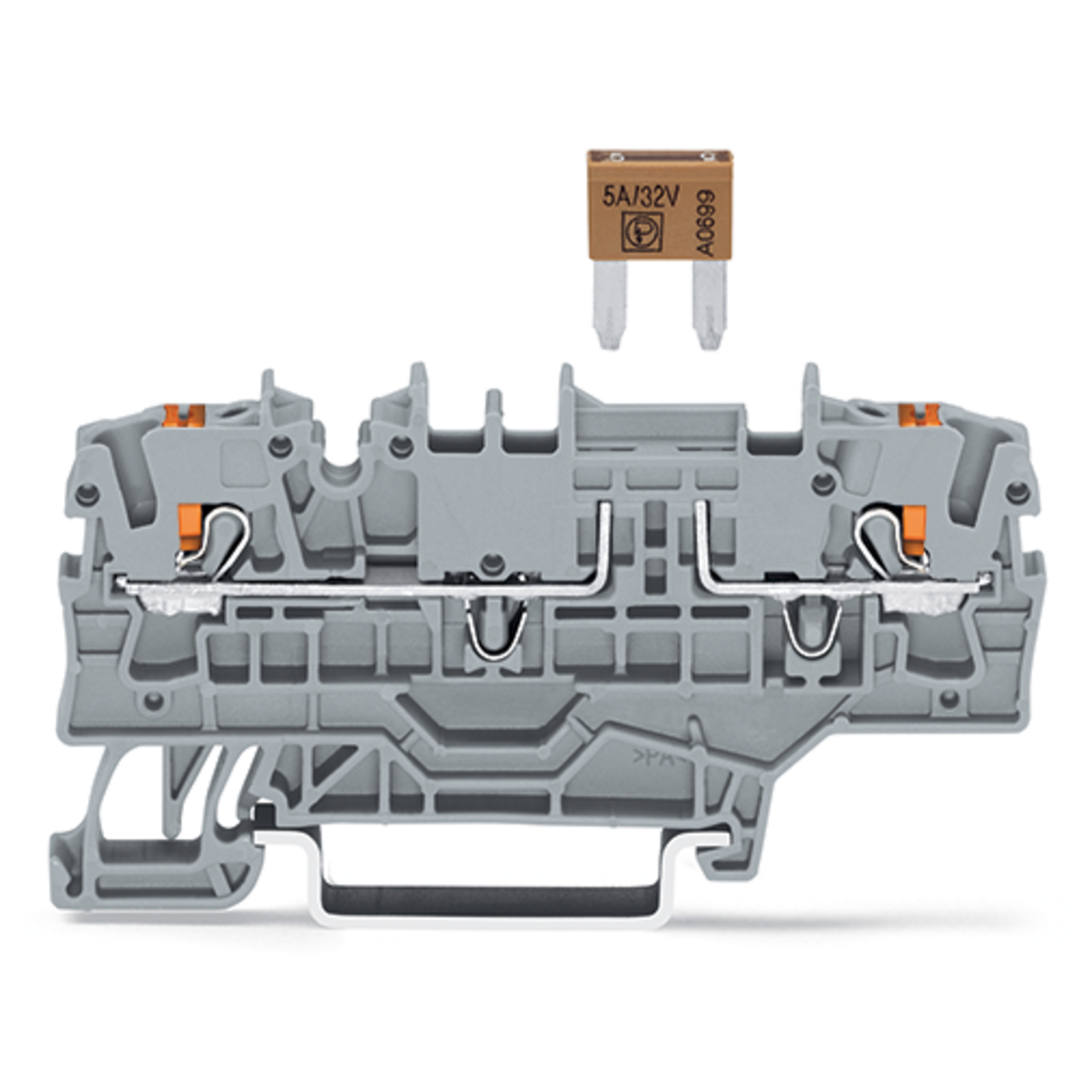

2-przewodowa złączka bezpiecznikowa do pł. bezpiecz. samochod. Mini zgodnie z DIN 7258-3f, ISO 8820-3, szara 2202-1981
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2202-1981 |
GTIN(EAN) | 4066966082968 |
Price unit | piece |
Catalog price | 23,16 zł (18,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka bezpiecznikowa 2-przewodowa; do pł. bezpiecz. samochod. Mini; zgodnie z DIN 7258-3f, ISO 8820-3; z możliwością pomiaru; z dodatkowym mostkowaniem; bez sygnalizacji przepalenia wkładki; z przyciskami; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 7,85 g |
ETIM class: | Fuse terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 72.9 mm |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 10 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Colour: | Grey |
Width: | 5.2 mm |
Rated voltage: | 400 V |
Type of fuse insert: | Blade fuse |
Depth: | 32.9 mm |
Type of fuse holder: | Pluggable |
Type of indication element for defect indication: | None |
