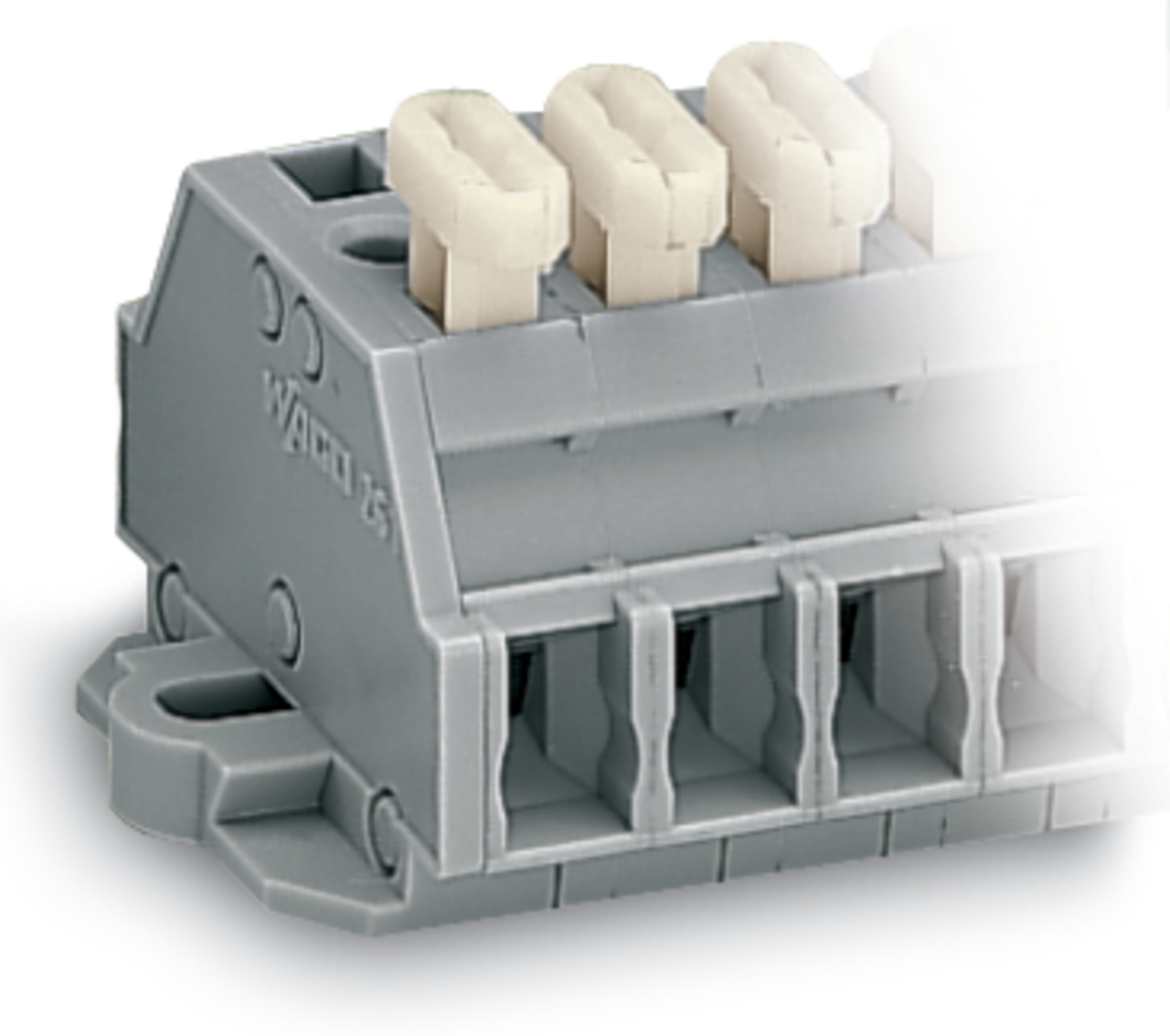

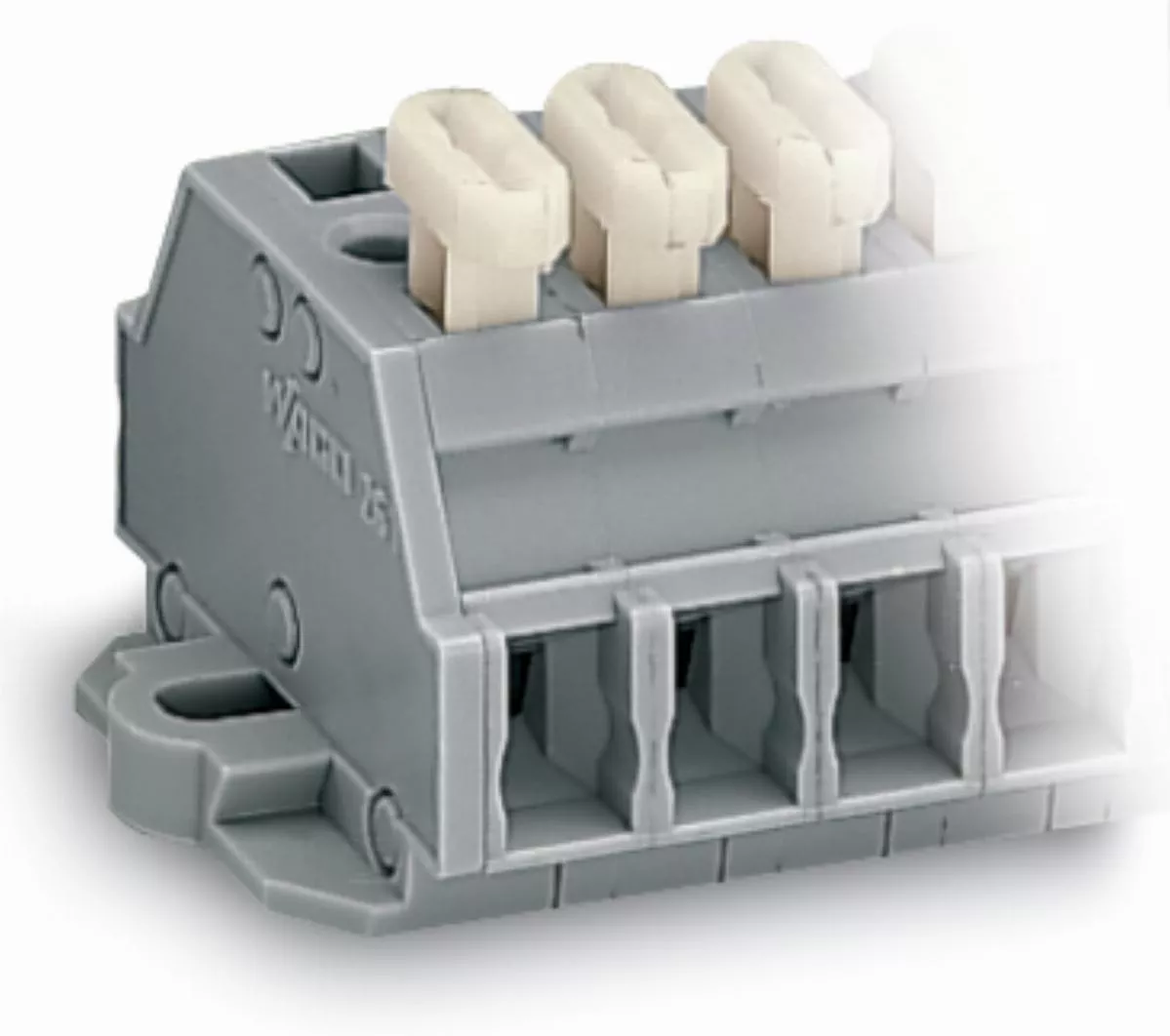

2-przewodowa listwa zaciskowa 3-bieg., szara 261-423/331-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 261-423/331-000 |
GTIN(EAN) | 4044918626798 |
Price unit | piece |
Catalog price | 10,43 zł (8,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
listwa zaciskowa 2-przewodowa; przyciski po jednej stronie; z uchwytami montażowymi; 3-bieg.; do mocowania śrubowego i podobnego typu; otwór montażowy Ø 3,2 mm; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 8,7 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 2 |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 85 °C |

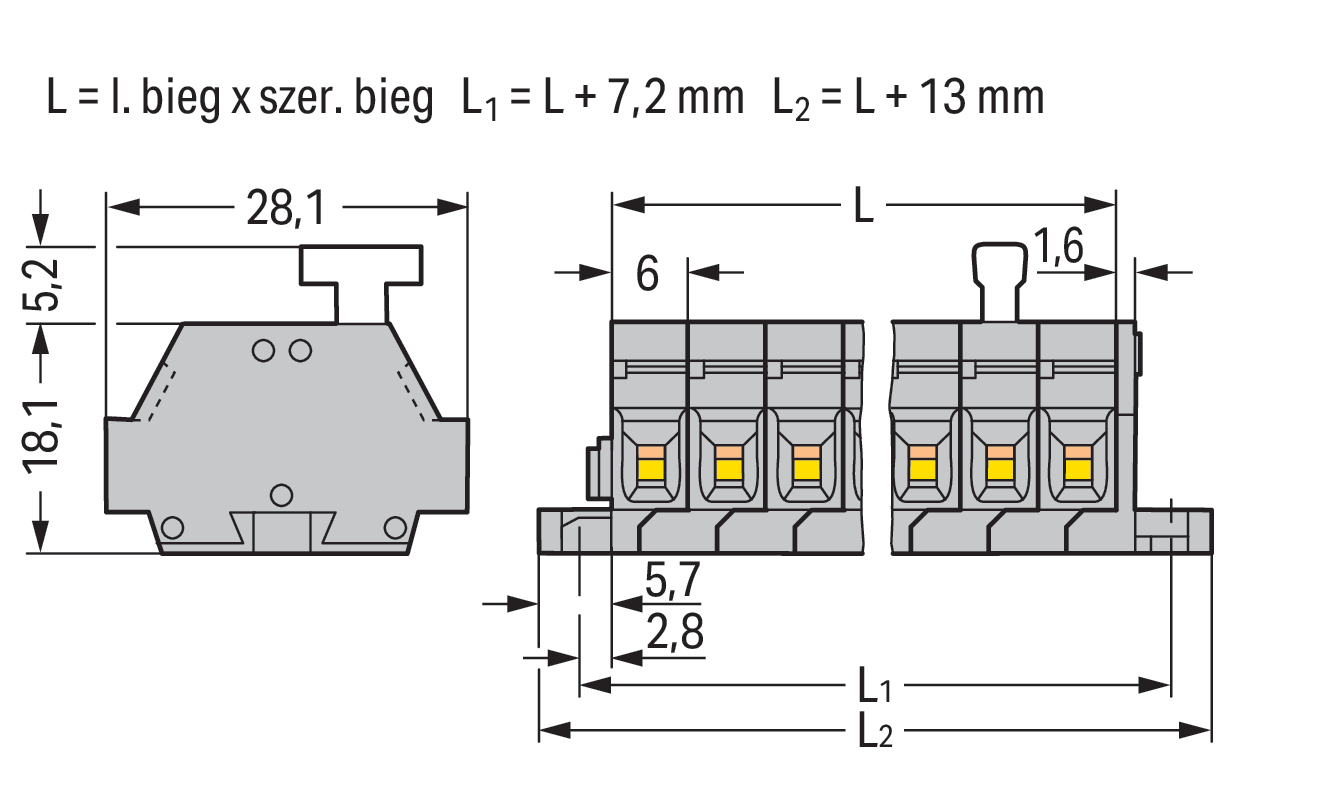

Height: | 28.1 mm |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Drill hole distance centrically: | 25.2 mm |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Number of poles: | 3 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 31 mm |
Rated voltage: | 500 V |
Depth: | 23.3 mm |
