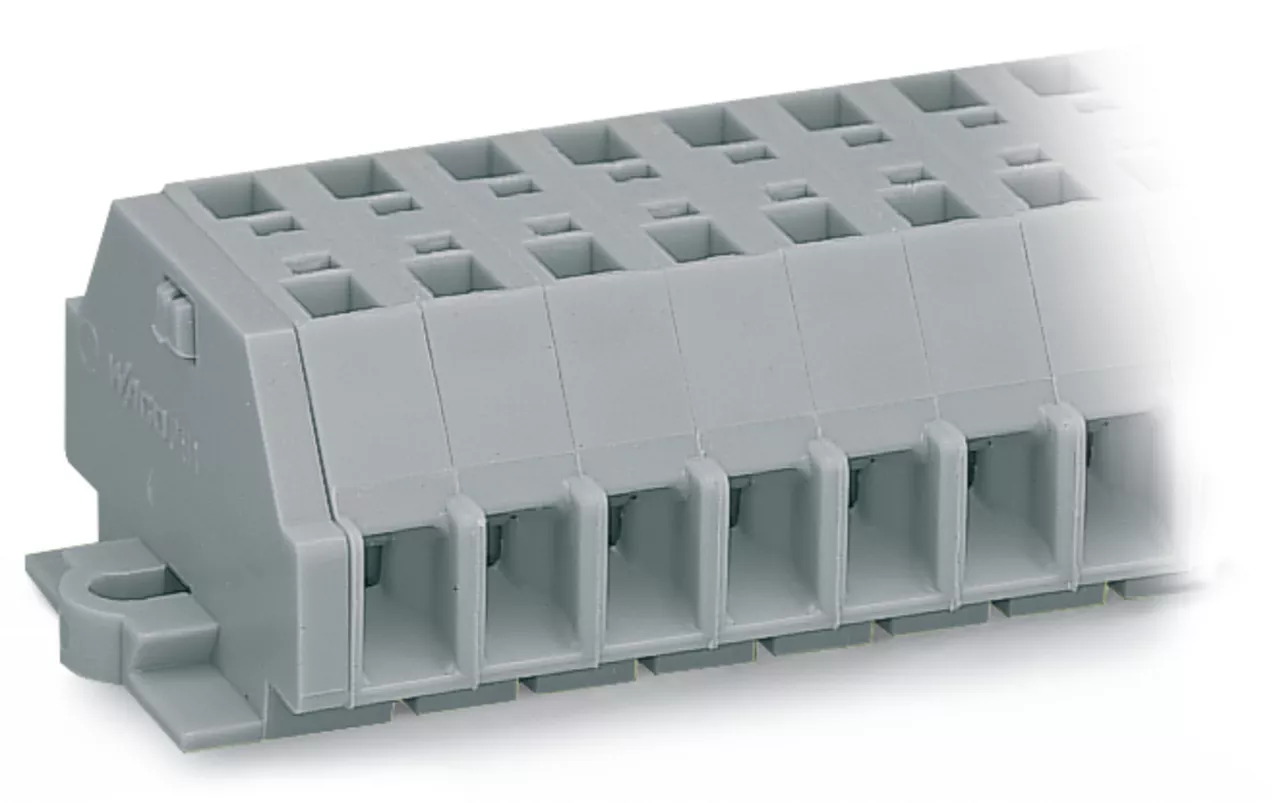

2-przewodowa listwa zaciskowa 2-bieg., szara 261-102
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 261-102 |
| GTIN(EAN) | 4055143764124 |
| Price unit | piece |
| Catalog price | 6,85 zł (5,57 zł + 23% VAT) |
| Sale price | from 2,09 zł / szt. (1,70 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
listwa zaciskowa 2-przewodowa; bez przycisków; z uchwytami montażowymi; 2-bieg.; do mocowania śrubowego i podobnego typu; otwór montażowy Ø 3,2 mm; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,71 g |
| Country of origin | Niemcy |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 2 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -30 - 85 °C |
| Height: | 28.1 mm |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Halogen free: | yes |
| Mounting method: | Other |
| Drill hole distance centrically: | 20.1 mm |
| Rated current In: | 24 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Number of poles: | 2 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 26.1 mm |
| Rated voltage: | 500 V |
| Depth: | 18.1 mm |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
el12 O.Wrocław
Wrocław, ul. Stargardzka 2
Wrocław, ul. Stargardzka 2
Distance:
46 sztuk
2,09 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
WAGO GmbH & Co. KG
Hansastraße 27, 32423 Minden, Niemcy
mail: wago.elwag@wago.com
www: wago.com
|
| Updated: | 2025-01-20 10:49:20 |
| Files to download: | |
| External links: |
