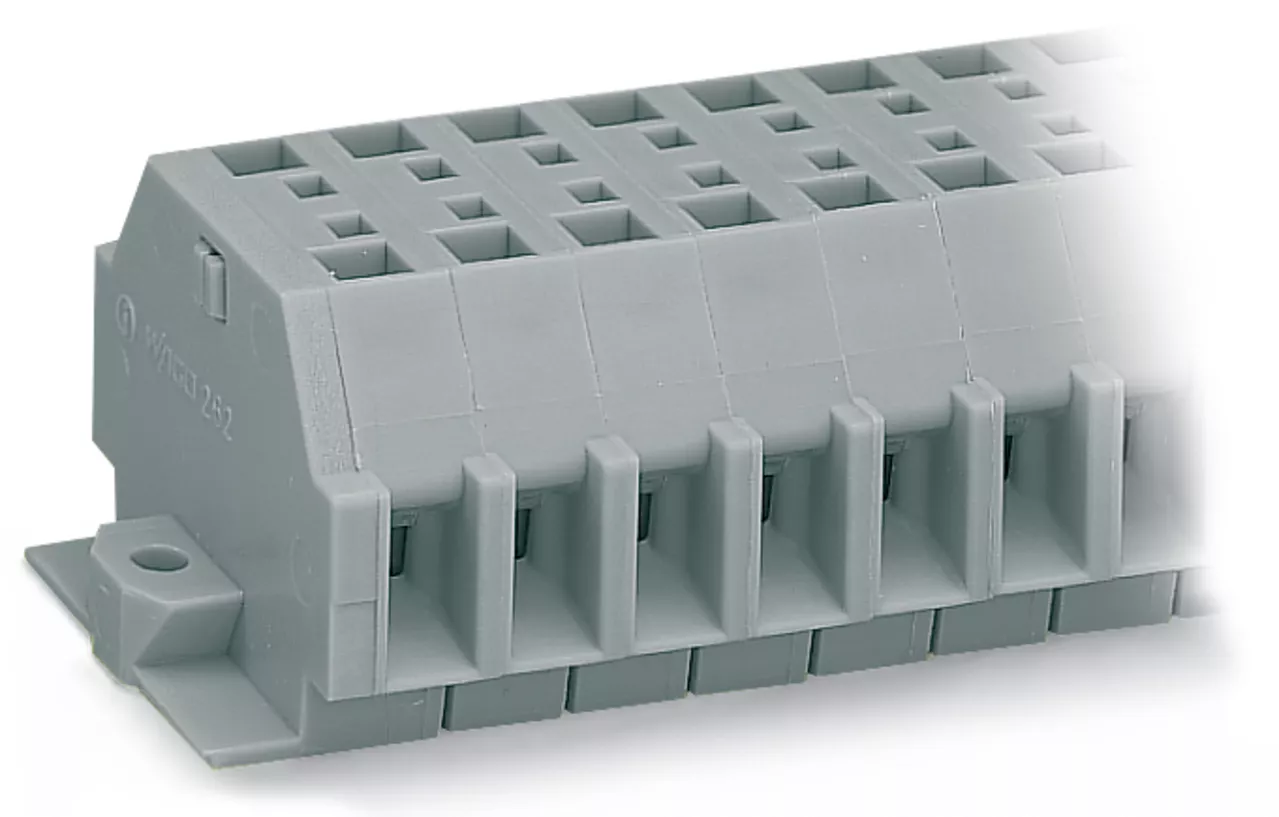

2-przewodowa listwa zaciskowa 10-bieg., szara 262-110
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 262-110 |
GTIN(EAN) | 4044918640244 |
Price unit | piece |
Catalog price | 45,15 zł (36,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
listwa zaciskowa 2-przewodowa; bez przycisków; z uchwytami montażowymi; 10-bieg.; do mocowania śrubowego i podobnego typu; otwór montażowy Ø 3,2 mm; 4 mm²; CAGE CLAMP®; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 43,57 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 2 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |

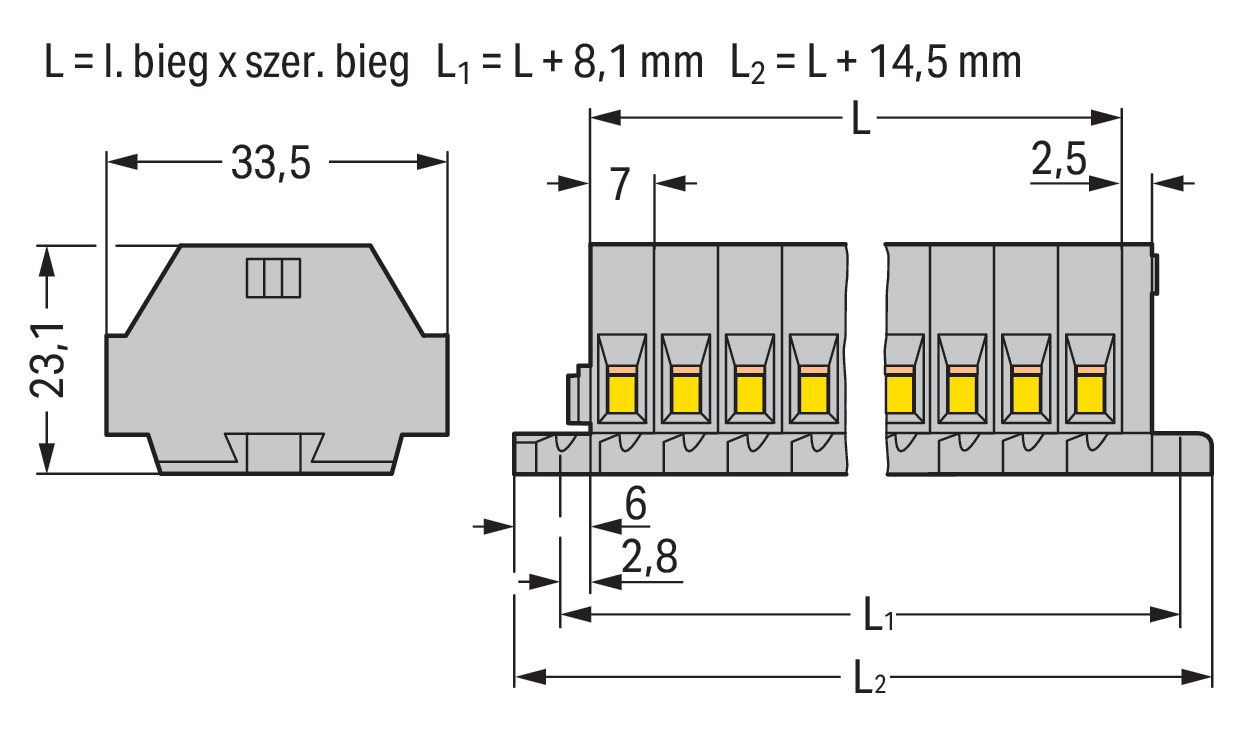

Height: | 33.5 mm |
Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
Halogen free: | yes |
Mounting method: | Other |
Drill hole distance centrically: | 78.1 mm |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
Number of poles: | 10 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 84.4 mm |
Rated voltage: | 630 V |
Depth: | 23.1 mm |
