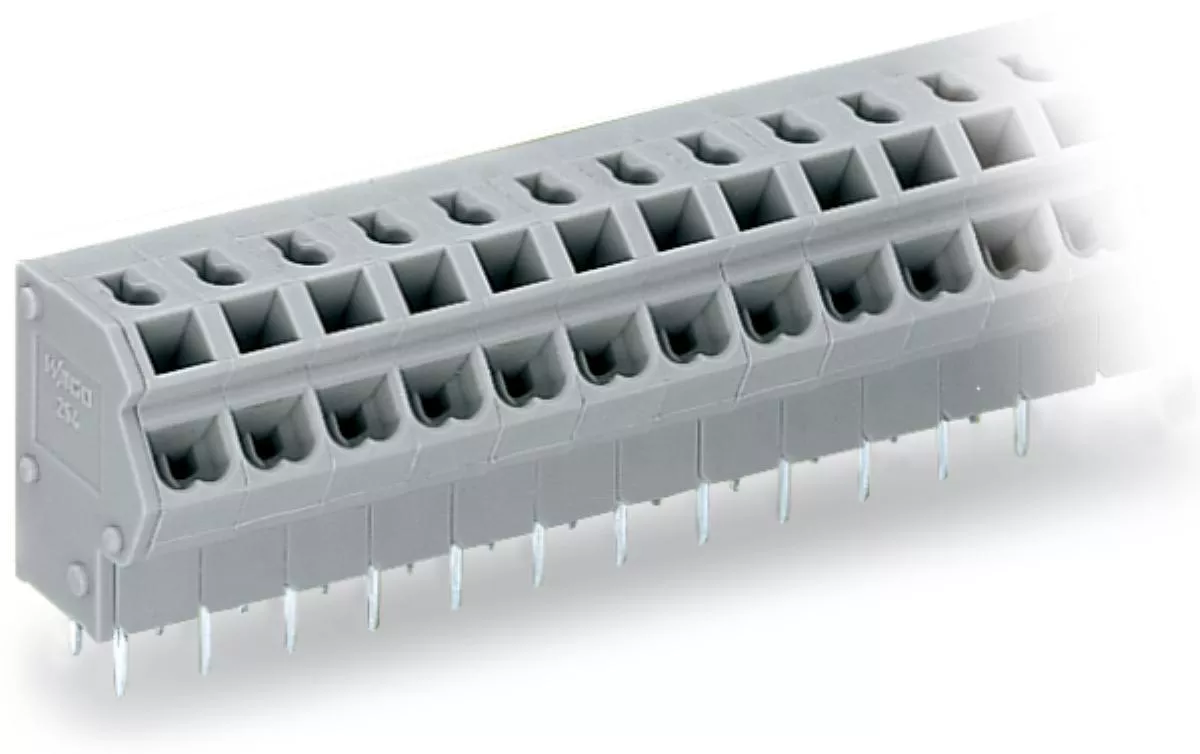

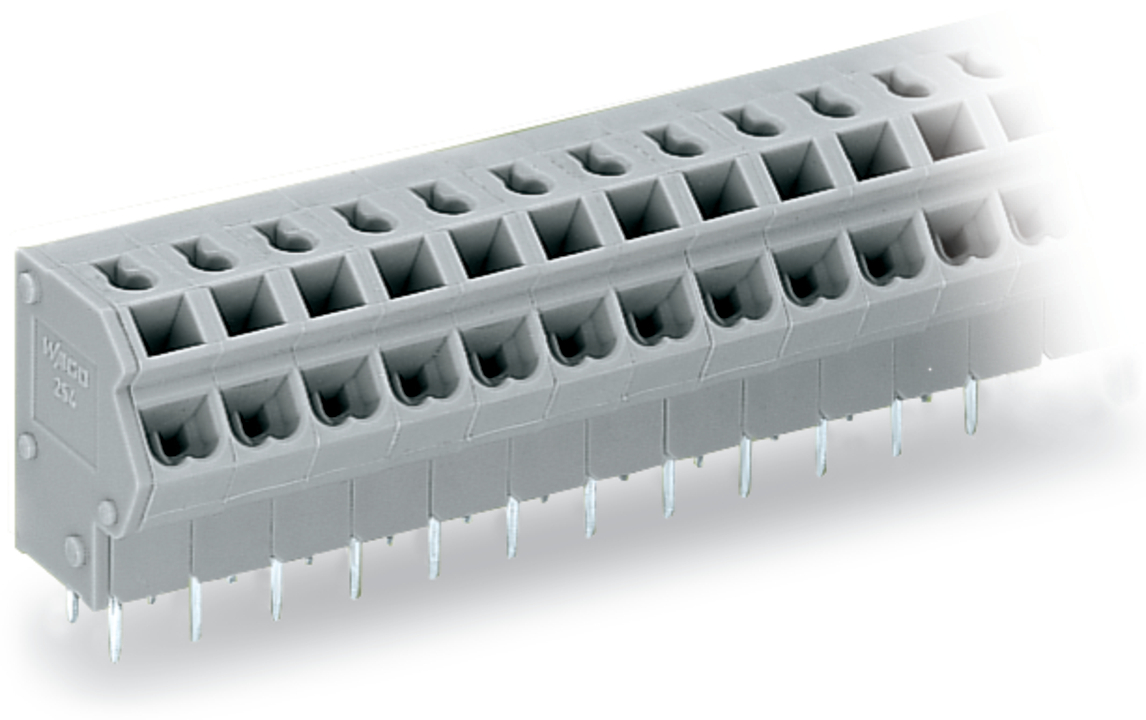

2-przew złączka do płytek drukowanych 0,75 mm² RM 5/5,08 mm 6-bieg, szara 254-156
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 254-156 |
| GTIN(EAN) | 4044918941181 |
| Price unit | piece |
| Catalog price | 11,09 zł (9,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złącze 2-przewodowe do PCB; 0,75 mm²; raster 5/5,08 mm; 6-bieg.; PUSH WIRE®; 0,75 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7,02 g |
| ETIM class: | Printed circuit board terminal |
| Operating temperature: | -60 - 105 °C |
| Material insulation body: | Thermoplastic |
| Housing colour: | Grey |
| Rated current In: | 10 A |
| Material connection surface: | Tin |
| Rated surge voltage: | 4 kV |
| Type of PCB fastening: | Connecting contact |
| Rated voltage: | 320 V |
| Pollution degree: | 3 |
| Connection type PCB: | Soldering connection |
| Connection type conductor: | Push-in clamp connection |
| Length pin: | 4 mm |
| Modular spacing connections: | 5 mm |
| Type of banding: | None |
| Over voltage category: | III |
| Height: | 16.5 mm |
| Connectable conductor cross section solid-core: | 0.25 - 0.75 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Type of fastening: | Solder |
| Number of levels: | 1 |
| Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
| Number of electrical connections: | 6 |
