2-przew modul zł do płytek druk 0,75 mm² RM 5/5,08 mm 1-bieg, pomarańczowa 235-716
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 235-716 |
GTIN(EAN) | 4044918331982 |
Price unit | piece |
Catalog price | 1,49 zł (1,21 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

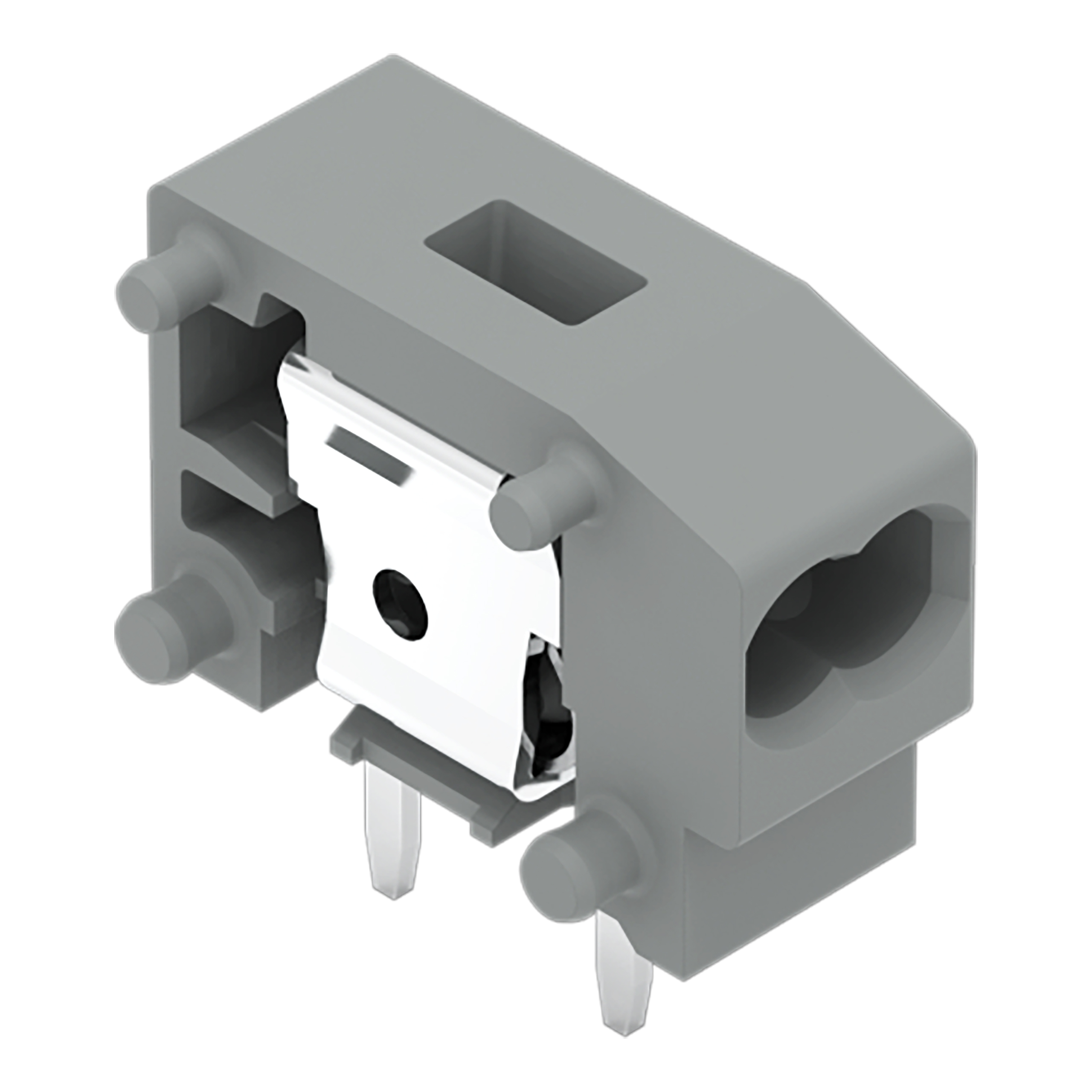

złączka modułowa 2-przewodowa do PCB; 0,75 mm²; raster 5/5,08 mm; 1-bieg.; PUSH WIRE®; 0,75 mm²; pomarańczowy
Additional features:
Information | Value |
---|---|
Net weight: | 0,67 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Orange |
Rated current In: | 10 A |
Material connection surface: | Tin |
Rated surge voltage: | 4 kV |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Push-in clamp connection |

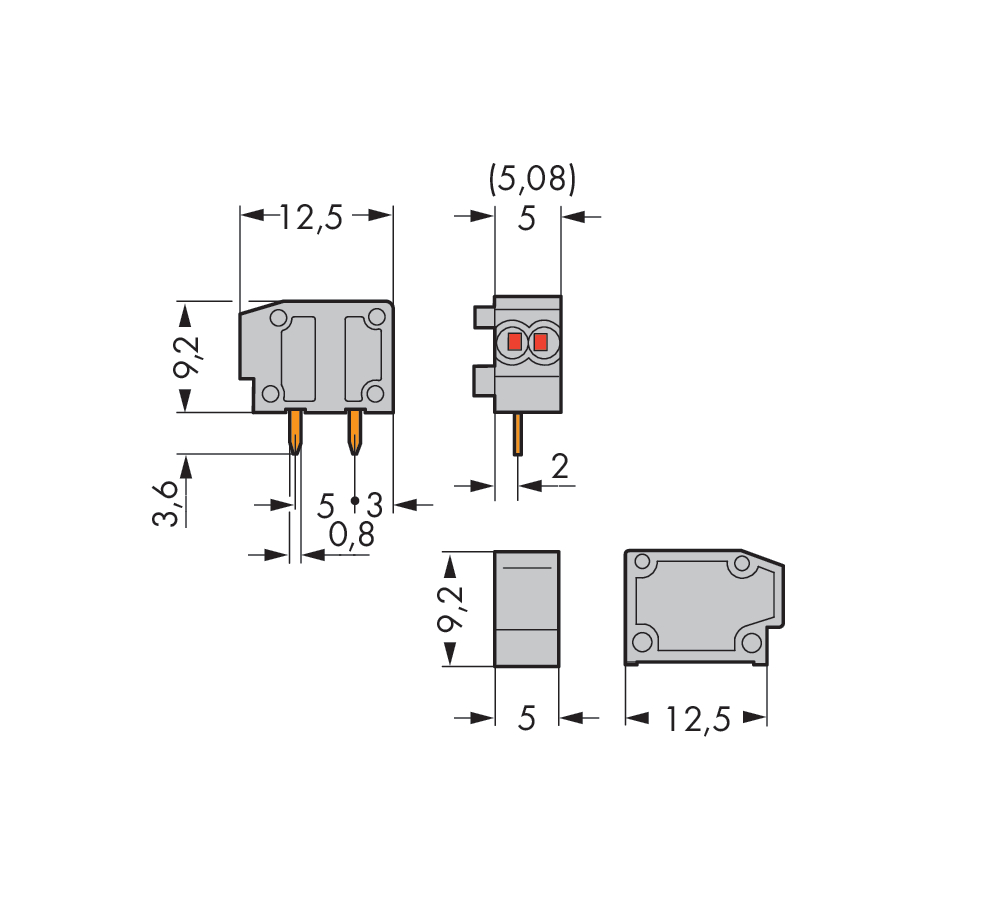

Length pin: | 3.6 mm |
Modular spacing connections: | 5 mm |
Type of banding: | None |
Over voltage category: | III |
Height: | 9.2 mm |
Connectable conductor cross section solid-core: | 0.25 - 0.75 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 0.34 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 0°/180° (horizontal) |
Number of electrical connections: | 1 |
