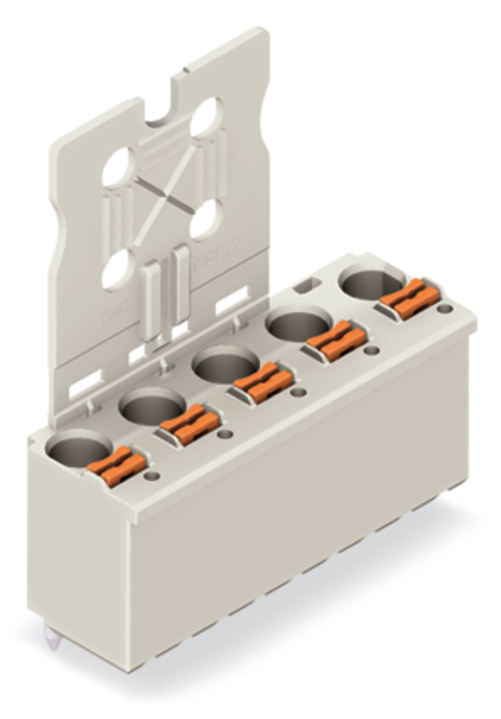

1-przewodowe gniazdo THT, proste, przycisk Push-in CAGE CLAMP®, jasnoszary 2092-3155
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2092-3155 |
GTIN(EAN) | 4050821164463 |
Price unit | piece |
Catalog price | 22,28 zł (18,11 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo THT 1-przewodowe proste; przycisk; Push-in CAGE CLAMP®; 2,5 mm²; raster 7,5 mm; 5-bieg.; pin lutowniczy Ø 1,4 mm; płytka uchwytowa; 2,50 mm²; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 7,63 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 100 °C |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 90° (upwards vertical) |
Contact type: | Pin |
Type of fastening: | Solder |
Type of PCB fastening: | Connecting contact |
Rated current In: | 16 A |
Type of electric connection: | Soldering connection |
Type of banding: | None |
Over voltage category: | III |
Rated surge voltage: | 6 kV |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Modular spacing contacts: | 7.5 mm |
Connector model: | Free connector |
Suitable for PCB thickness: | 2 mm |
Pollution degree: | 2 |
Material of contact surface: | Tin |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 630 V |
Number of poles: | 5 |
Number of plug-in contact rows: | 1 |
Modular spacing connections: | 7.5 mm |
Length pin: | 3.6 mm |
Diameter connection pin: | 1.4 mm |
