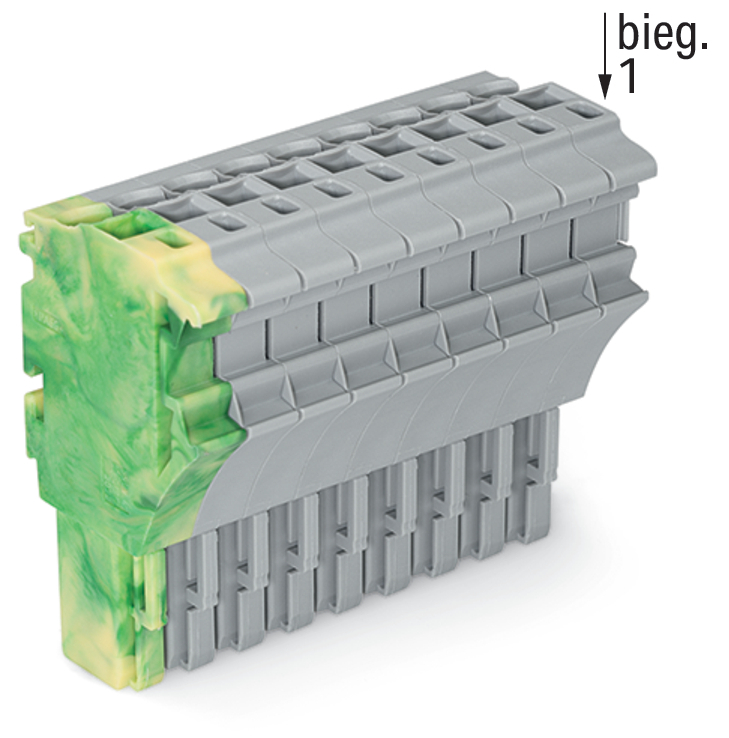

1-przewodowe gniazdo Push-in CAGE CLAMP®, żłt-ziel/szary 2022-109/000-037
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2022-109/000-037 |
GTIN(EAN) | 4045454913045 |
Price unit | piece |
Catalog price | 46,89 zł (38,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo 1-przewodowe; Push-in CAGE CLAMP®; 4 mm²; raster 5,2 mm; 9-bieg.; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 29,8 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 22.4 mm |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 24 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Number of poles: | 9 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Multi-coloured |
Width: | 46.8 mm |
Rated voltage: | 690 V |
Depth: | 40.5 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:06:48 |
Files to download: | |
External links: |
