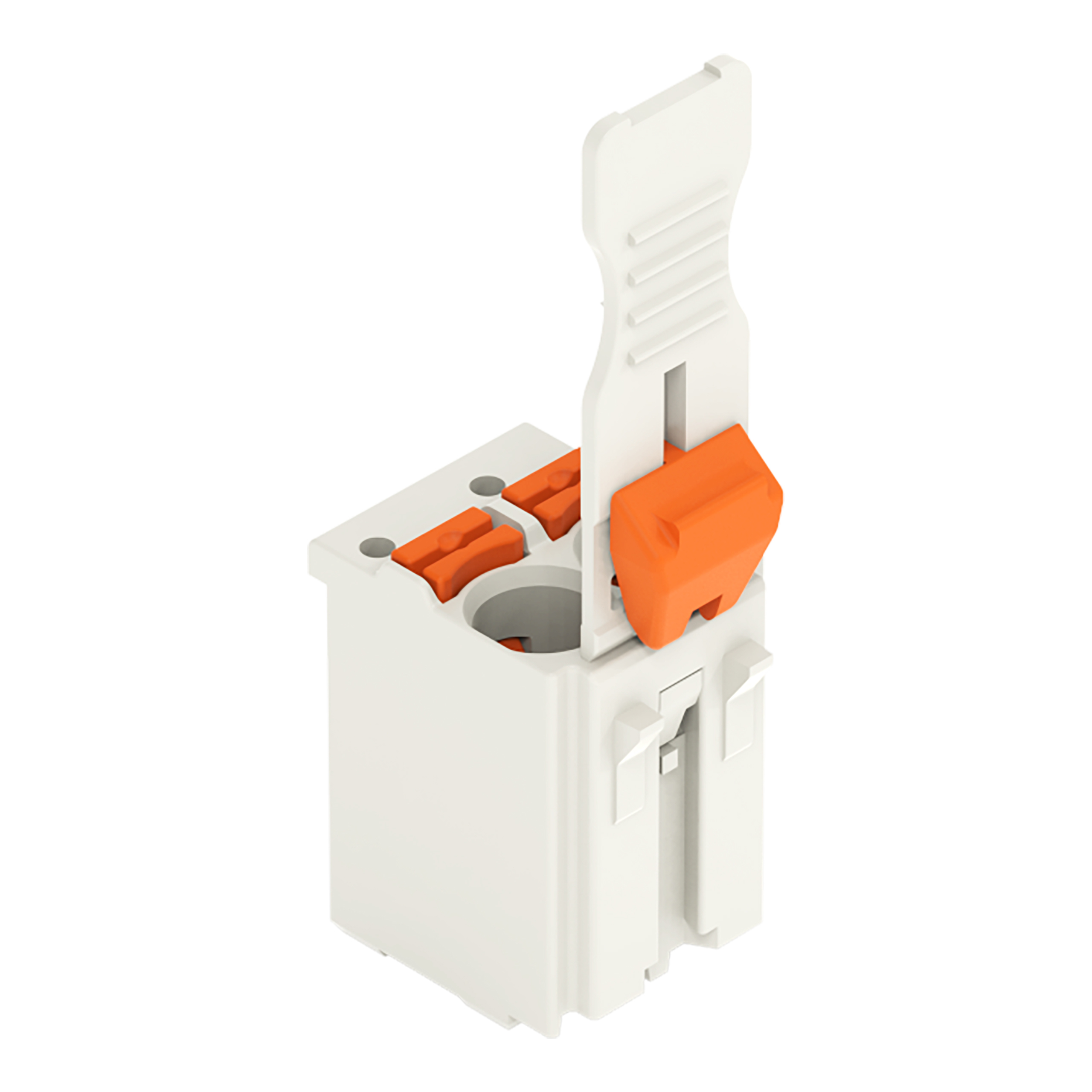

1-przewodowe gniazdo przycisk Push-in CAGE CLAMP®, jasnoszary 2092-1104/002-1000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2092-1104/002-1000 |
GTIN(EAN) | 4050821487784 |
Price unit | piece |
Catalog price | 18,75 zł (15,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo 1-przewodowe; przycisk; Push-in CAGE CLAMP®; 2,5 mm²; raster 5 mm; 4-bieg.; płytka uchwytowa i suwak zwalniający; z nadrukiem bezpośrednim; 2,50 mm²; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 3,8 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 100 °C |
Height: | 13.4 mm |
Connectable conductor cross section solid-core: | 0.2 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Rated current In: | 16 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.2 - 2.5 mm² |
Number of poles: | 4 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 5 mm |
Rated voltage: | 320 V |
Depth: | 14.4 mm |
