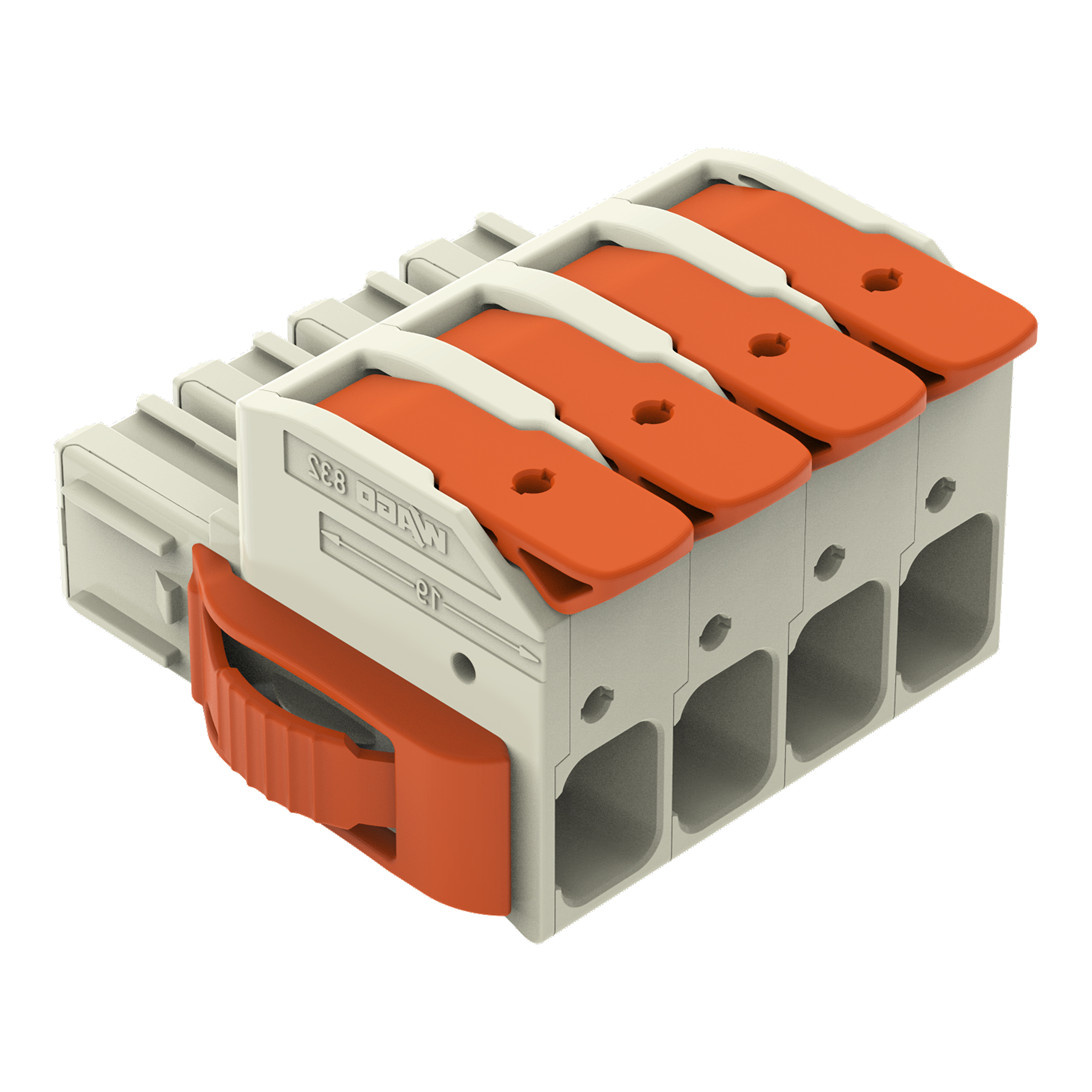

1-przewodowe gniazdo dźwignia Push-in CAGE CLAMP®, jasnoszary 832-1104/037-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 832-1104/037-000 |
| GTIN(EAN) | 4055143921275 |
| Price unit | piece |
| Catalog price | 77,76 zł (63,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
gniazdo 1-przewodowe; dźwignia; Push-in CAGE CLAMP®; 16 mm²; raster 10,16 mm; 4-bieg.; 100% ochrona przed błędnym połączeniem; boczne zaczepy ryglujące; zestyki posrebrzane; 16,00 mm²; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 55,4 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 1 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 120 °C |
| Height: | 29.1 mm |
| Connectable conductor cross section solid-core: | 0.75 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 16 mm² |
| Rated current In: | 76 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.75 - 25 mm² |
| Connectable conductor cross section multi-wired: | 0.75 - 25 mm² |
| Number of poles: | 4 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 10.16 mm |
| Rated voltage: | 1000 V |
| Depth: | 49.8 mm |
