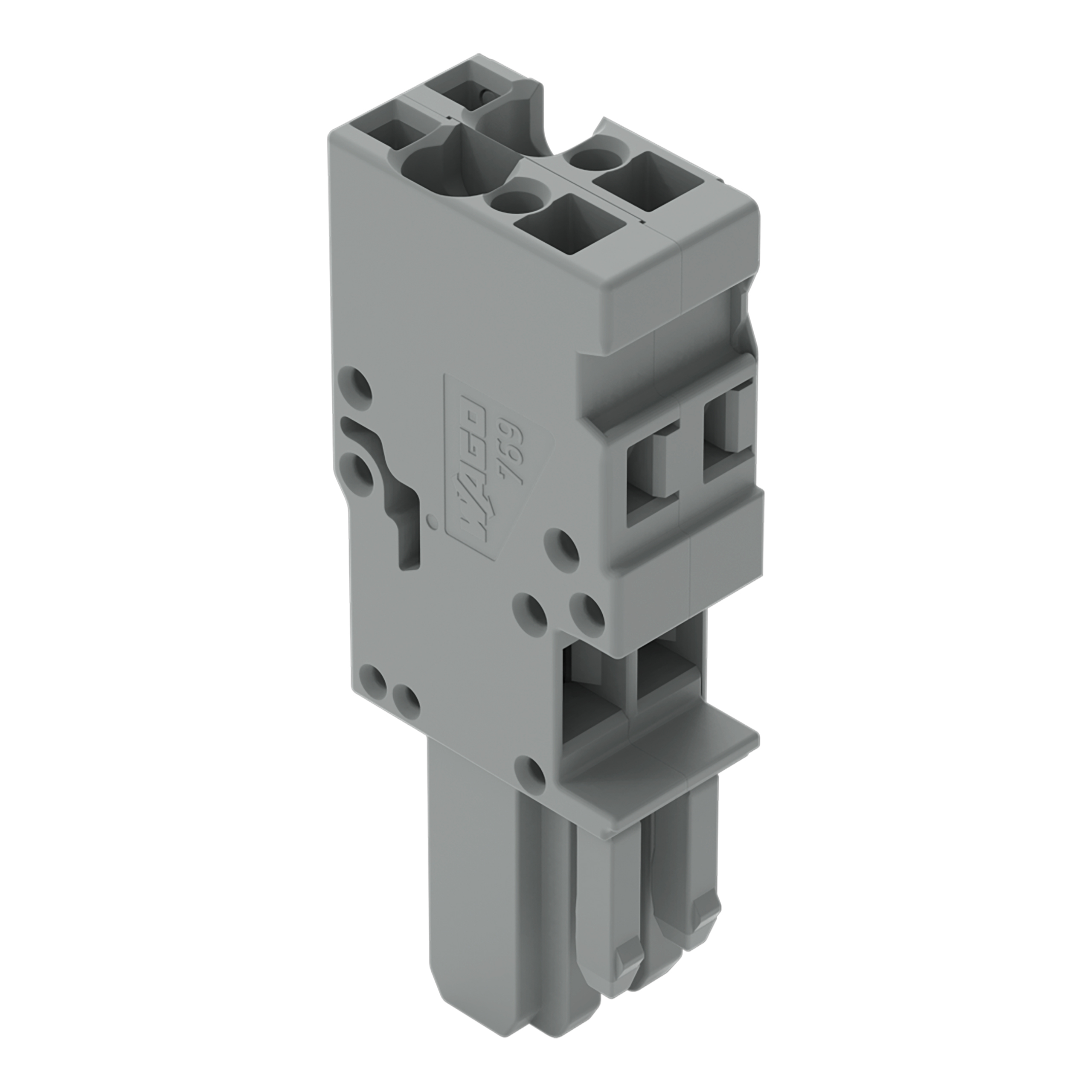

1-przewodowe gniazdo CAGE CLAMP®, szara 769-102
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 769-102 |
GTIN(EAN) | 4044918471329 |
Price unit | piece |
Catalog price | 12,63 zł (10,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo 1-przewodowe; CAGE CLAMP®; 4 mm²; raster 5 mm; 2-bieg.; wypust kodujący; 4,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 6,27 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |

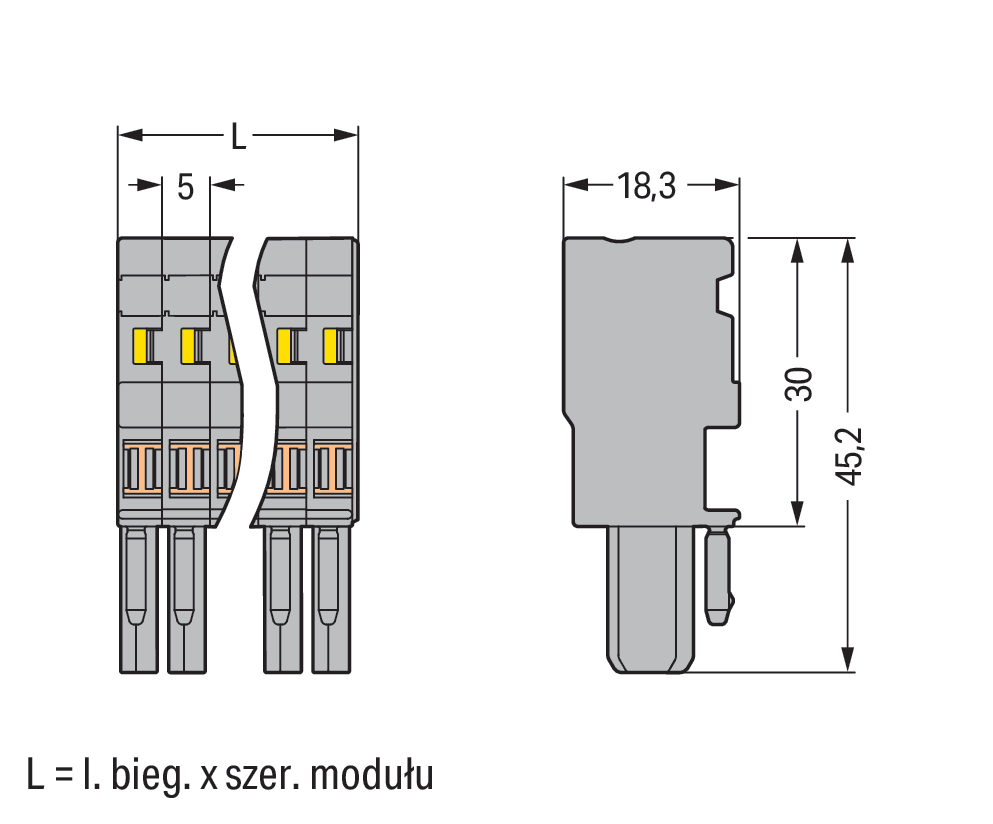

Height: | 18.3 mm |
Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 32 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
Number of poles: | 2 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 10 mm |
Rated voltage: | 500 V |
Depth: | 45.2 mm |
