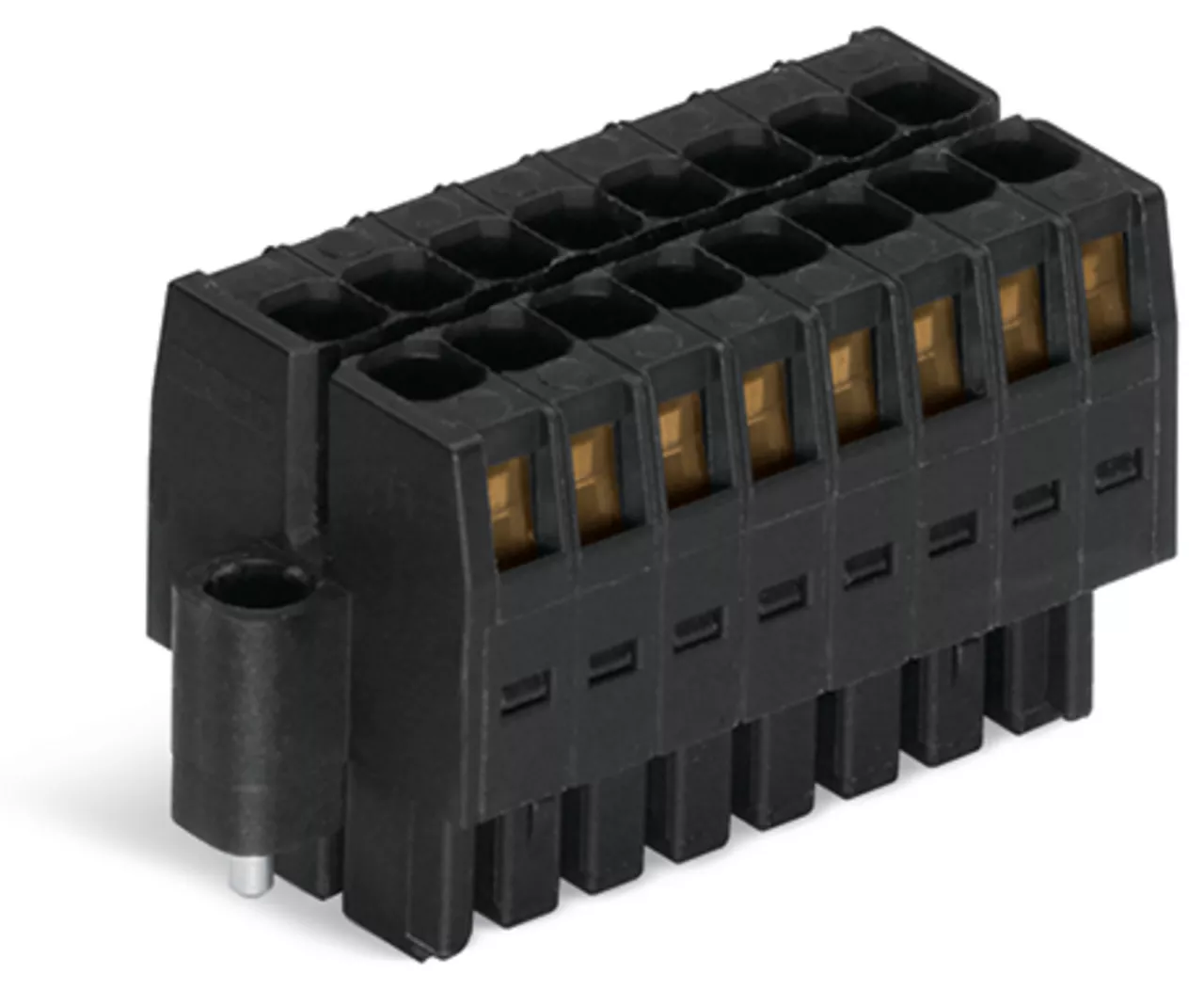

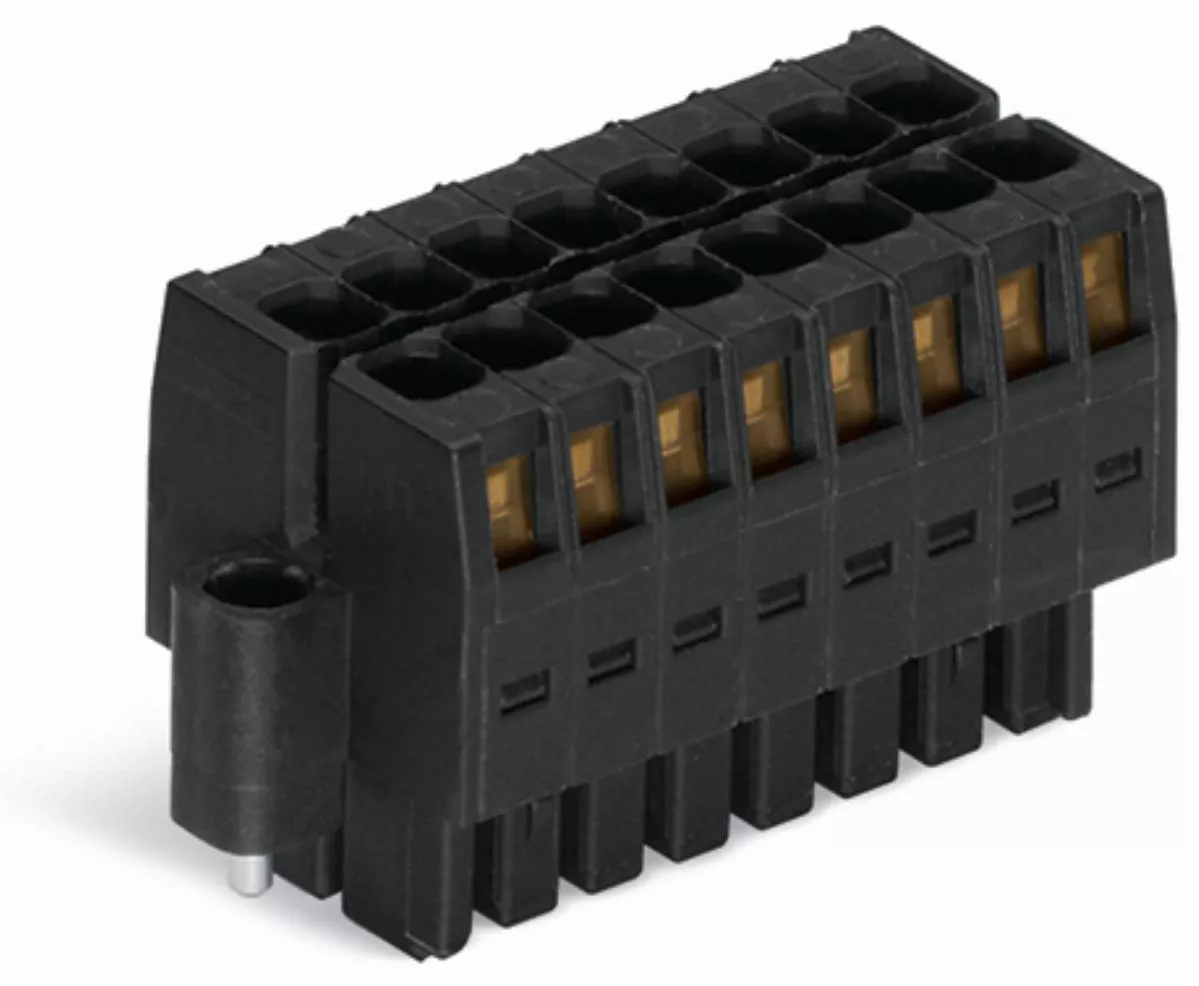

1-przewodowe gniazdo, 2-rzędowe CAGE CLAMP®, pełna ochrona przed błędnym wetknięciem, czarny 713-1109/107-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 713-1109/107-000 |
| GTIN(EAN) | 4045454806804 |
| Price unit | piece |
| Catalog price | 83,49 zł (67,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
gniazdo 1-przewodowe, 2-rzędowe; CAGE CLAMP®; 1,5 mm²; raster 3,5 mm; 18-bieg.; 100% ochrona przed błędnym połączeniem; śrubowy uchwyt montażowy; 1,50 mm²; czarny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,91 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 1 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 100 °C |

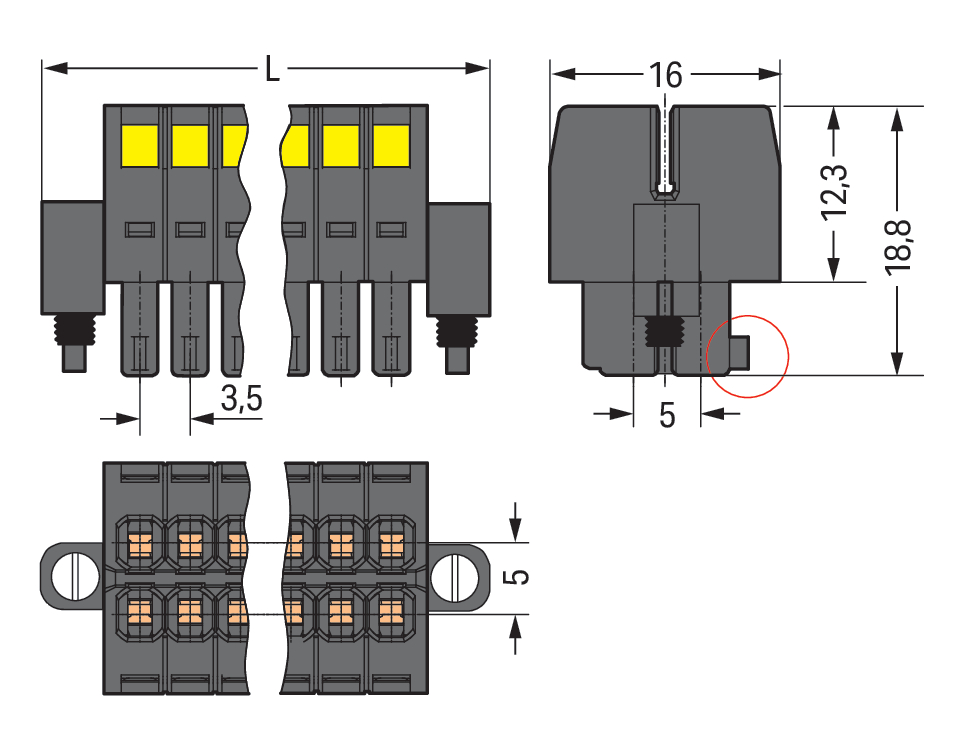

| Height: | 18.8 mm |
| Connectable conductor cross section solid-core: | 0.08 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1 mm² |
| Mounting method: | Other |
| Rated current In: | 10 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 1.5 mm² |
| Number of poles: | 18 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Black |
| Width: | 3.5 mm |
| Rated voltage: | 160 V |
| Depth: | 16 mm |
