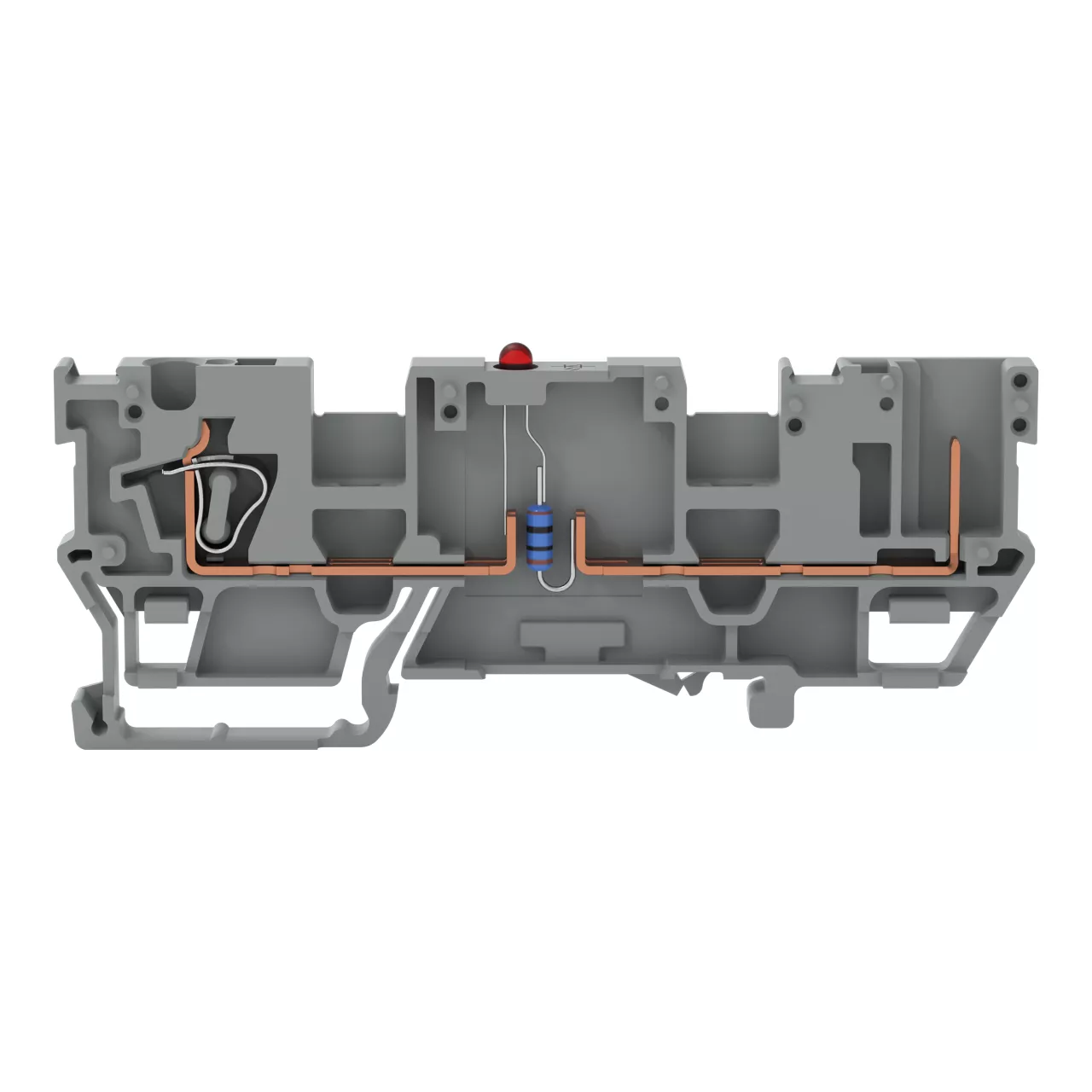

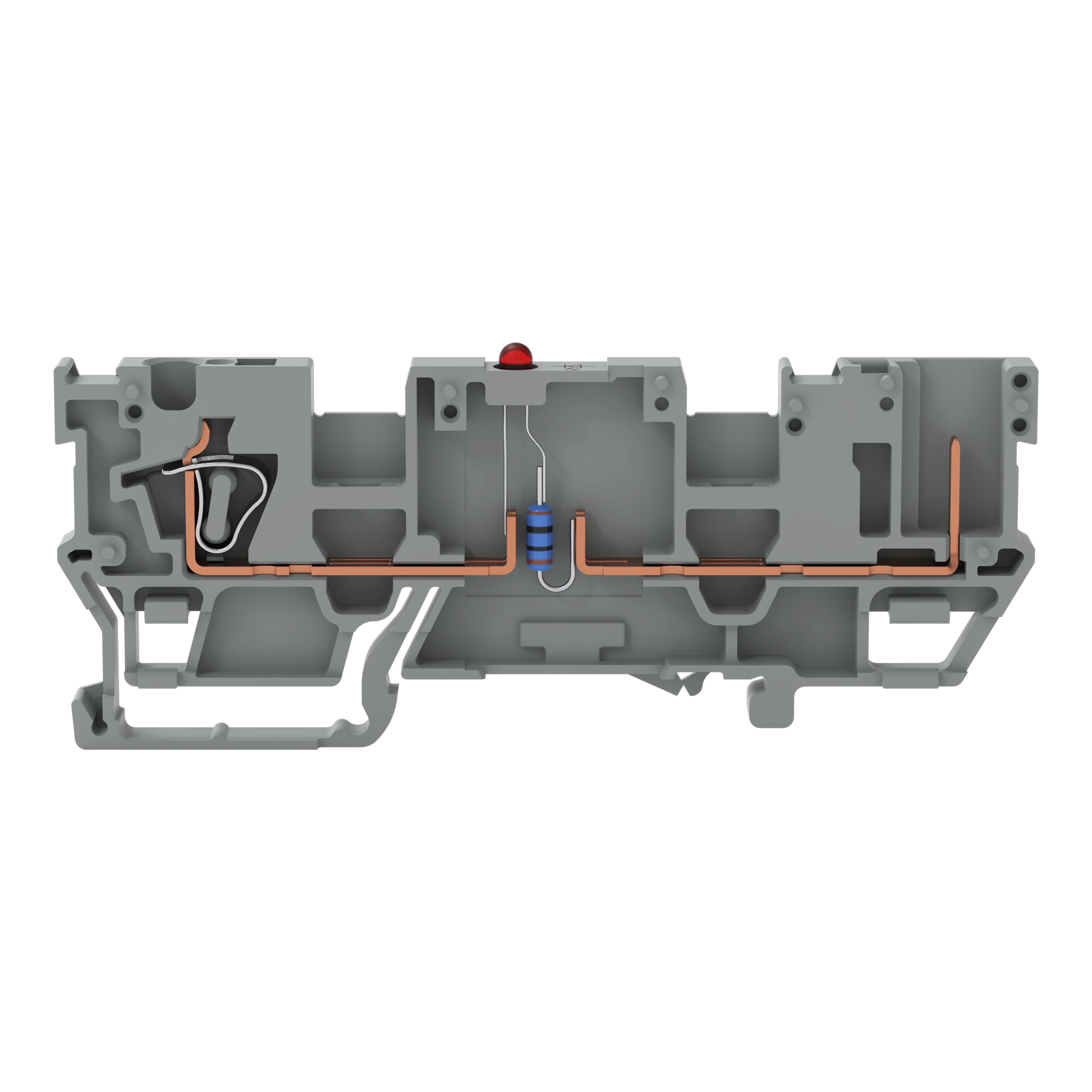

1-przewodowa/1-pinowa złączka bazowa do zabudowy elementów z podwójnym mostkowaniem, szara 769-219/281-413
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 769-219/281-413 |
| GTIN(EAN) | 4050821418504 |
| Price unit | piece |
| Catalog price | 31,92 zł (25,95 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

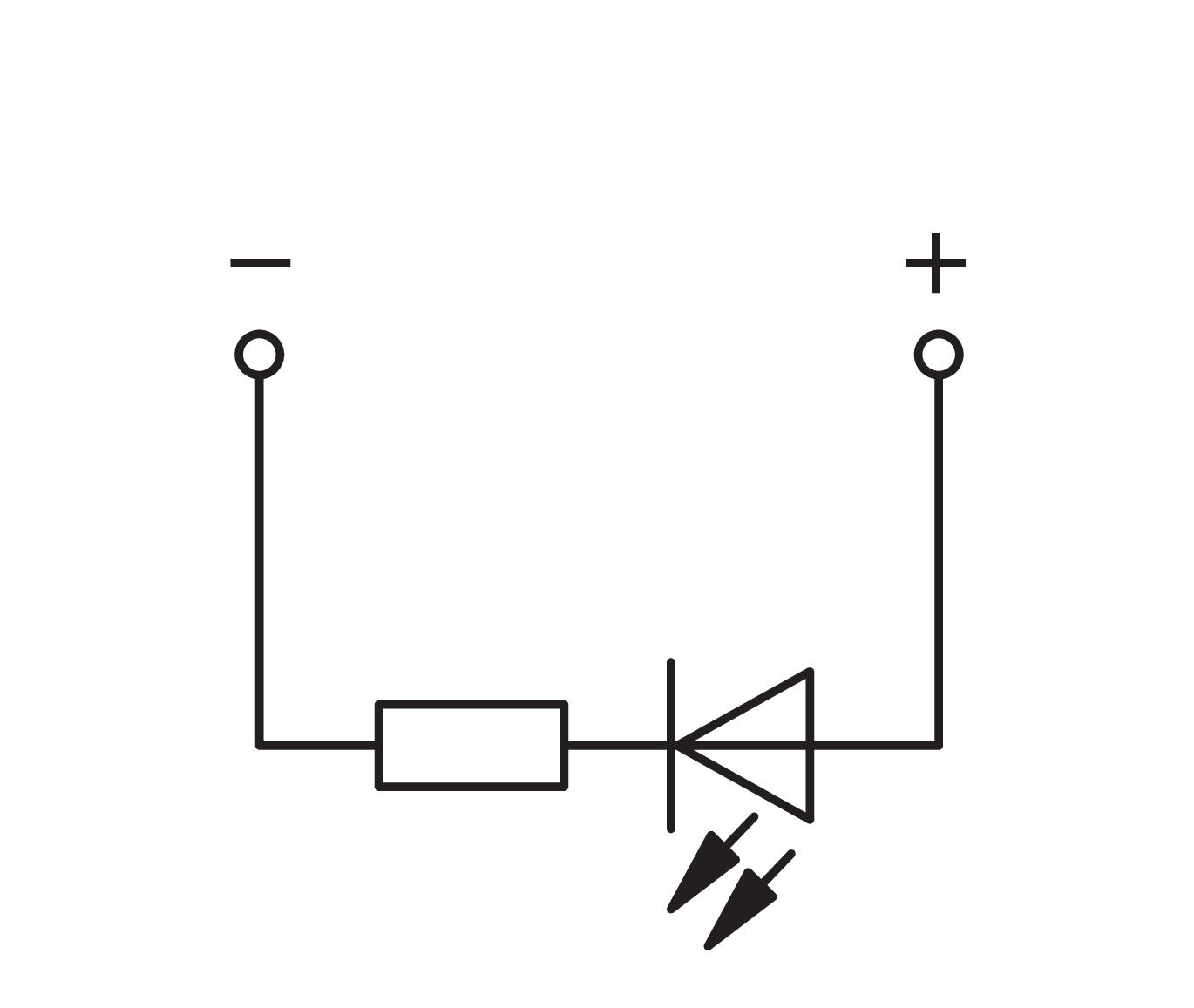

zł. baz. do zab. el. 1-przew./1-pinowa; z podwójnym mostkowaniem; LED czerwona; 24 V DC; na szynę TS 35 x 15 i 35 x 7,5; 4 mm²; CAGE CLAMP®; 4,00 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8,23 g |
| ETIM class: | Component terminal block |
| Operating temperature: | 105 - 105 °C |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 0.025 A |
| Height: | 87.5 mm |
| Number of levels: | 1 |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 4 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Plug-in connection |
| Connectable conductor cross section multi-wired: | 0.08 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.08 - 4 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Grey |
| Width: | 5 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 24 V |
| Depth: | 28.5 mm |
| Type of component: | LED |
