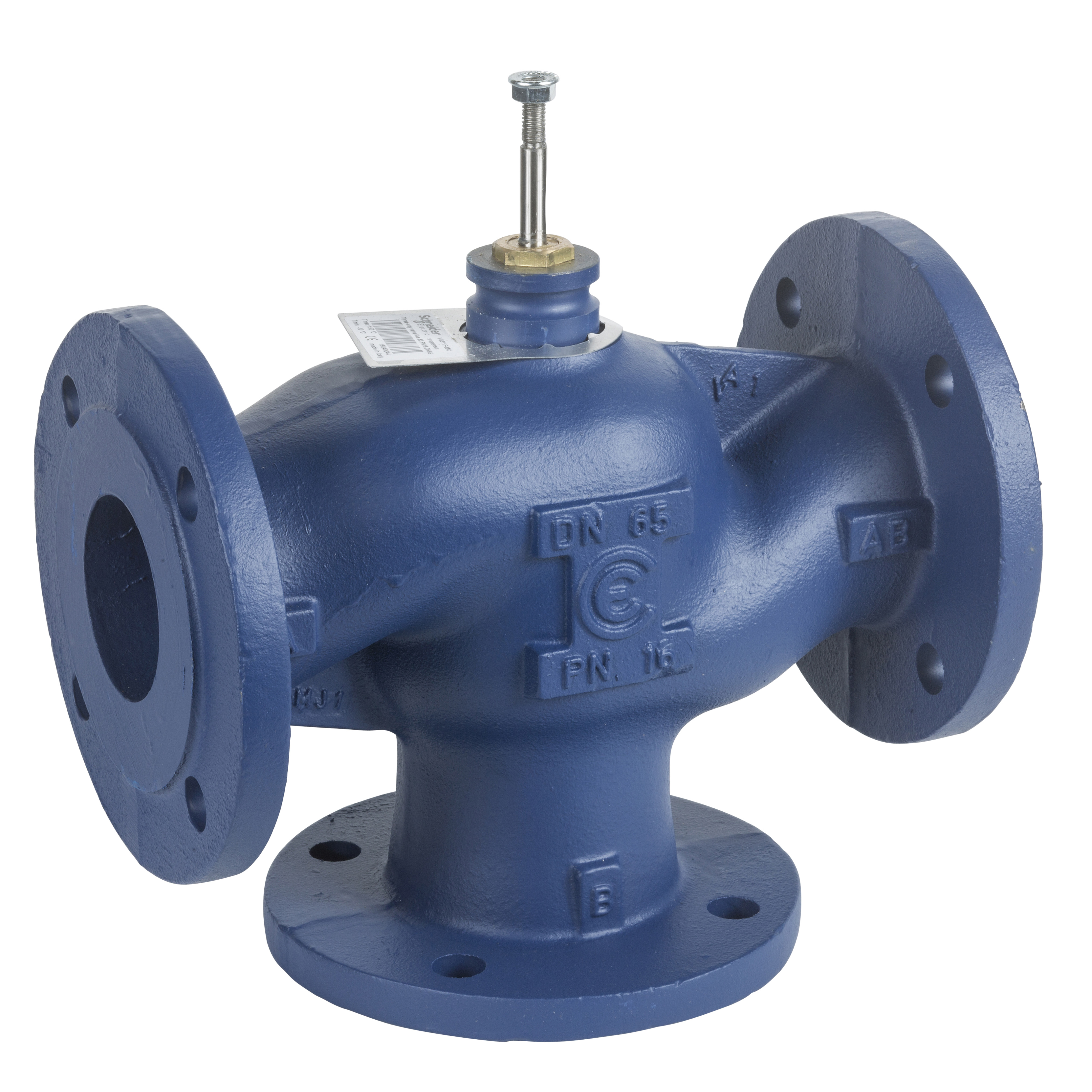

VG311F, zawór regulacyjny, 3-drogowy, DN65, kvs 63, przyłącze kołnierzowe, medium -10…150˚C, PN16
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | VG311F-65C |
GTIN(EAN) | 3606489646318 |
Price unit | piece |
Catalog price | 4 674,00 zł (3 800,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zawór kulowy VG311F to duży 3-drogowy zawór mieszający kulowy przeznaczony do szerokiej gamy zastosowań grzewczych i chłodniczych. Zawór jest wyposażony w koronkę, która zapewnia szeroki zakres nośników
Additional features:
Information | Value |
---|---|
Gross weight: | 18,05 kg |
ETIM class: | Three-way control valve |
Flange compression class: | PN 16 |
Surface protection: | Untreated |
Characteristic curve: | Equal percentage |
Leakage loss of Kvs value: | 0.03 % |
Nominal diameter: | 2 1/2 inch (65) |
Kvs value: | 65.00 |
Article compression class: | PN 16 |
Outer pipe diameter all connections: | 65 mm |
Material quality: | Other |
Connections: | Flange |
Stroke length: | 25 mm |
Max. medium temperature (continuous): | 150 °C |
Housing material: | Cast iron |
Min. medium temperature (continuous): | -10 °C |
