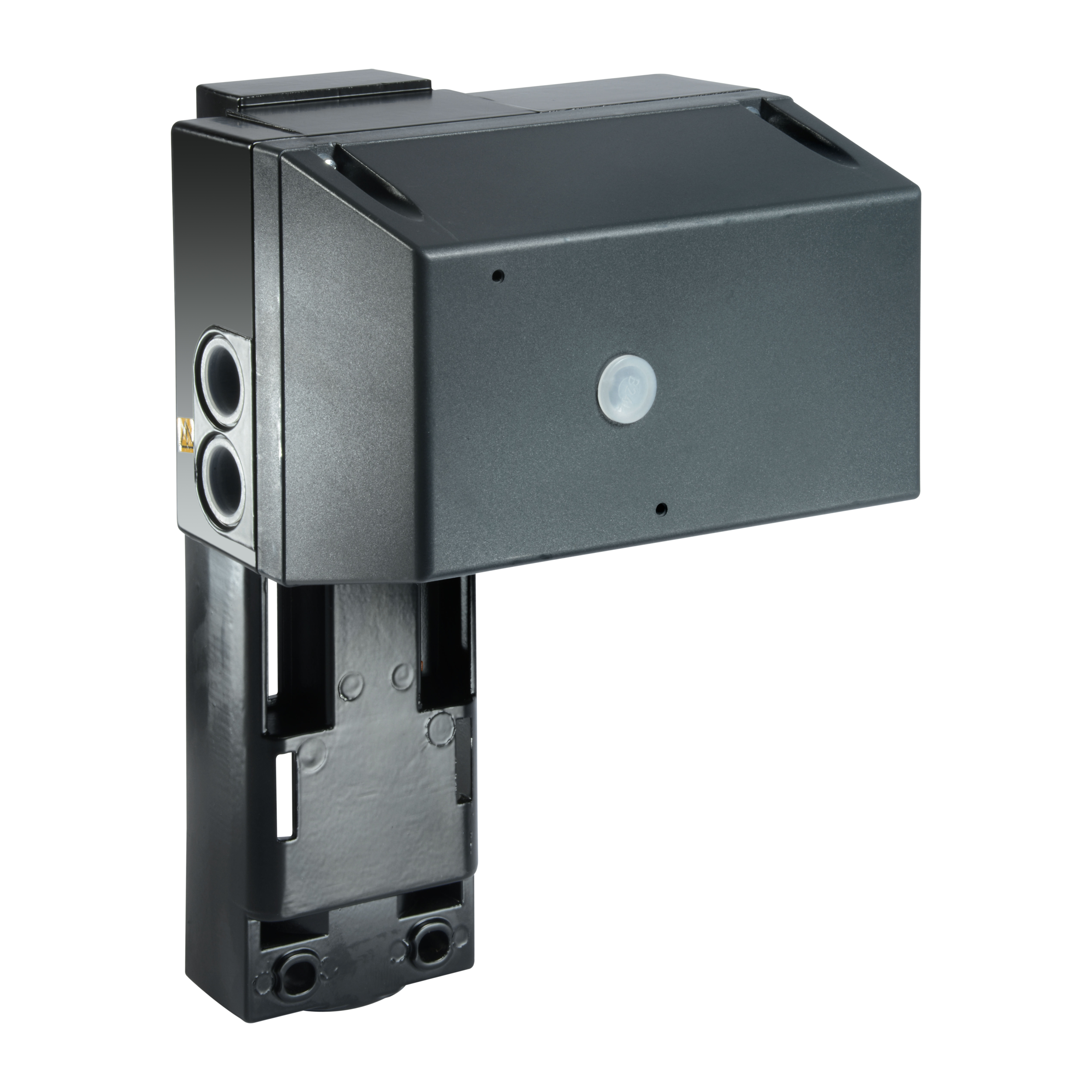

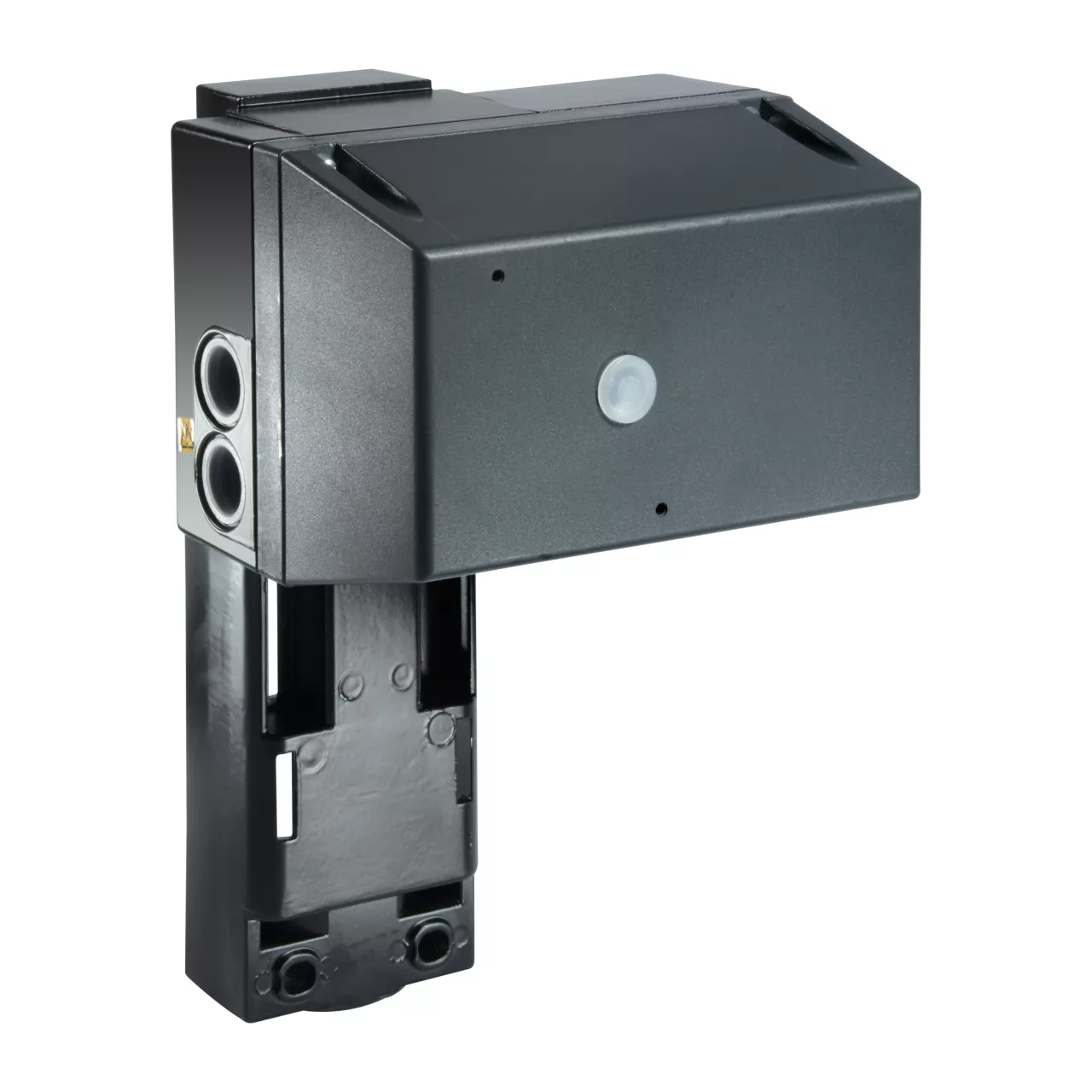

MV15, siłownik zaworu, 1500 N, sterowanie 3-punktowe, zasilanie 24 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | 8800462000 |
| GTIN(EAN) | 3606489659424 |
| Price unit | piece |
| Catalog price | 4 674,00 zł (3 800,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MV15B to wydajny 3-punktowy siłownik pływakowy do sterowania 2- i 3-drogowymi zaworami kulowymi. Siłownik samoczynnie dostosowuje się do skoku dowolnego zaworu, do którego jest podłączony. Montaż za pomocą śruby U zapewnia bardzo łatwy i szybki montaż. We wszystkich modelach standardowe jest ręczne odblokowanie. Napięcie zasilania: 24 Vac +/- 10%. Wymuś: 1500 N, stopień ochrony IP 54. EMC 2014/30/EU, LVD 2014/35/EU. Przyłącze kablowe 2 x M20 przykręcane.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 3,8 kg |
| ETIM class: | Electric servomotor |
| Auxiliary contacts: | yes |
| Explosion-proof: | no |
| Housing material: | Aluminium |
| With top flange direct mount according to ISO 5211: | no |
| Adjusting force: | 1500 N |
| Self-adjusting travel length: | yes |
| Degree of protection (IP): | IP40 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | yes |
| Allowable relative humidity: | 0 - 90 % |
| Suitable for air accessory: | no |
| Type of safety function: | Other |
| Automatic stroke recognition: | no |
| With safety function: | no |
| Depth: | 312 mm |
| Width: | 225 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | no |
| Model: | Linear |
| Deactivated when closed: | yes |
| Max. electric power input: | 15 VA |
| Connection to stop valve: | Other |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | yes |
| Suitable for manual operation: | no |
| Control signal: | Other |
| Potential free switch contact: | no |
| Ambient temperature: | -15 - 50 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | yes |
| Regulation type on/off: | no |
| Height: | 228 mm |
| Stroke length: | 52 mm |
| Operating time: | 27 s |
| Position reporting system: | None |
| Supply voltage: | 24 V AC |
| Degree of protection (NEMA): | 3 |
