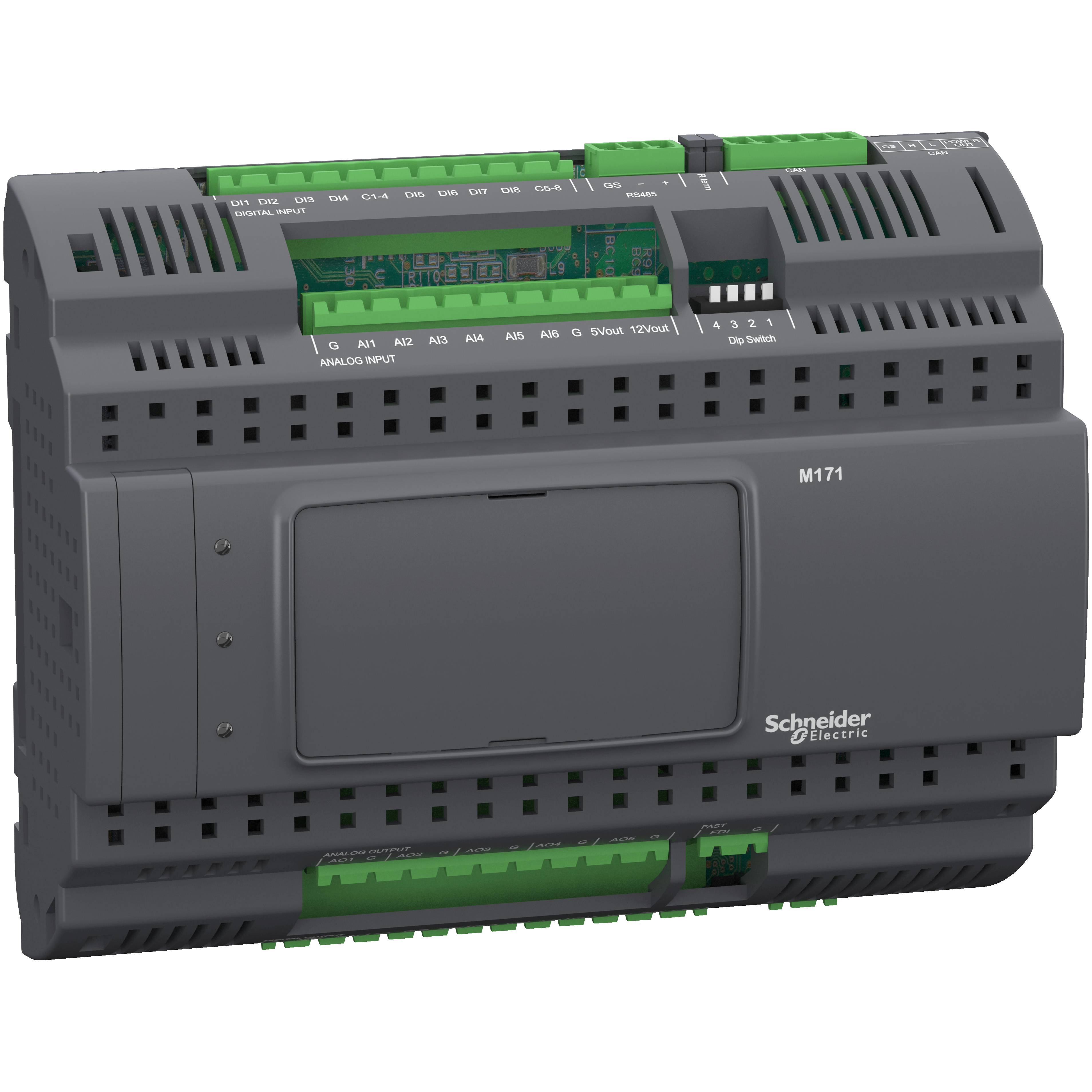

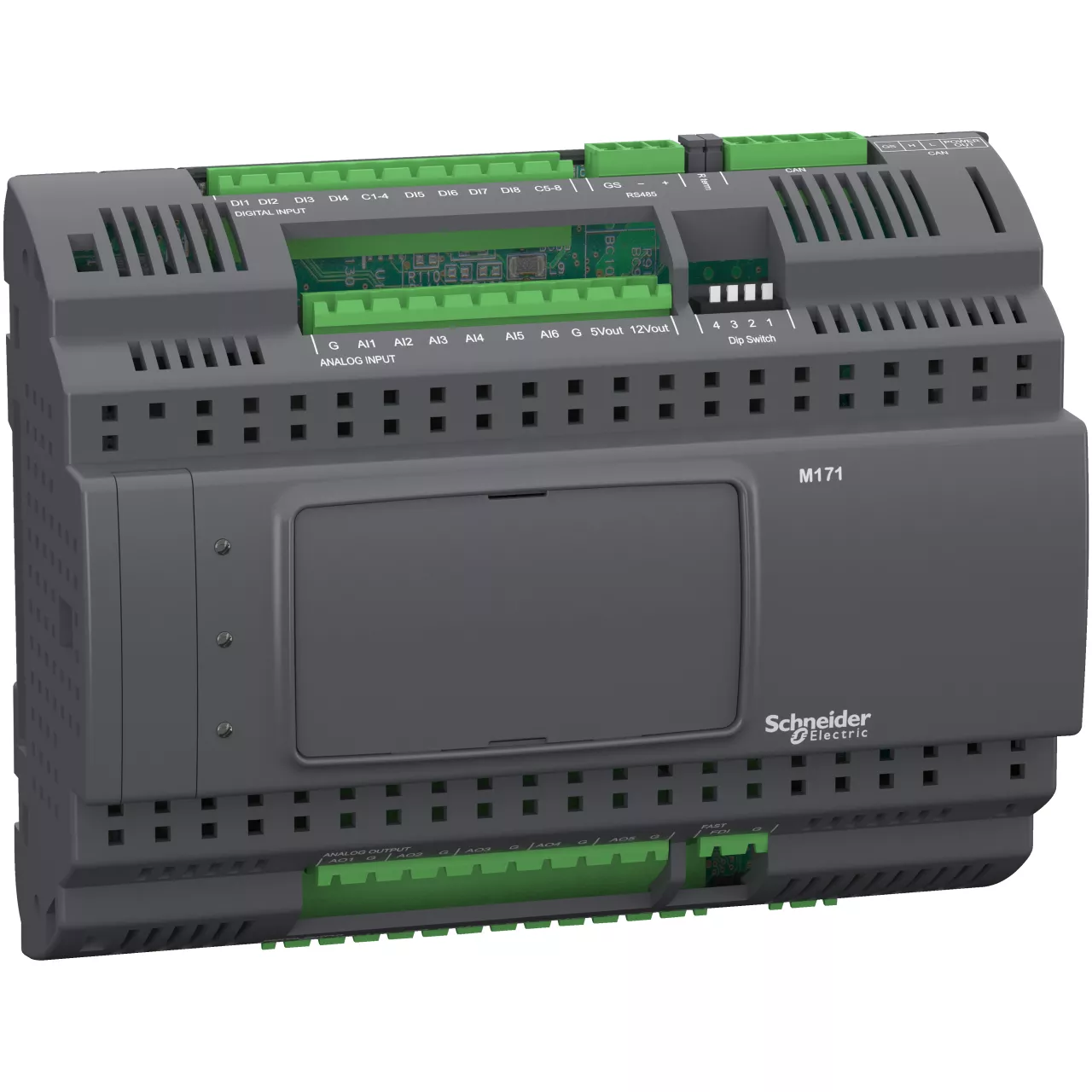

Modicon M171, Sterownik PLC HVAC, 9xDI 6xAI 7xDO 5xAO CAN Modbus SL zasilanie 24 48V
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TM171PBM27R |
| GTIN(EAN) | 3606480752827 |
| Price unit | piece |
| Catalog price | 2 617,44 zł (2 128,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 496 g |
| ETIM class: | PLC CPU-module |
| Number of digital inputs: | 9 |
| Suitable for safety functions: | no |
| Number of digital outputs: | 7 |
| Number of analogue inputs: | 6 |
| Number of analogue outputs: | 5 |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 140 mm |
| Model: | Compact |
| Processing time (1K, binary operation): | 0.3 ms |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Explosion safety category for gas: | None |
| Radio standard UMTS: | no |
| Performance level according to EN ISO 13849-1: | None |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Memory size: | 0.512 kB |
| With display: | no |
| Rack-assembly possible: | no |
| Supply voltage DC: | 20 - 48 V |
| Supporting protocol for KNX: | no |
| Supporting protocol for Data-Highway: | no |
| Supply voltage AC 60 Hz: | 24 - 24 V |
| Front built-in possible: | no |
| Supply voltage AC 50 Hz: | 24 - 24 V |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | yes |
| Supporting protocol for TCP/IP: | no |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | yes |
| Appendant operation agent (Ex ia): | no |
| Depth: | 61.6 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Voltage type (supply voltage): | AC/DC |
| Supporting protocol for SafetyBUS p: | no |
| Type of memory: | Other |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Redundancy: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 110 mm |
| Number of relay outputs: | 7 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 2 |
| Number of HW-interfaces other: | 1 |
| Number of HW-interfaces wireless: | 0 |
| System accessory: | yes |
| Number of HW-interfaces parallel: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| Additional program memory possible: | no |
| Max. number of time switches: | 0 |
| With optical interface: | no |
| SIL according to IEC 61508: | None |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Supporting protocol for IEC 60870: | no |
| Supporting protocol for DNP3: | no |
| Long-Term Evolution (LTE): | no |
| Supporting protocol for IEC 61850 Ethernet: | no |
