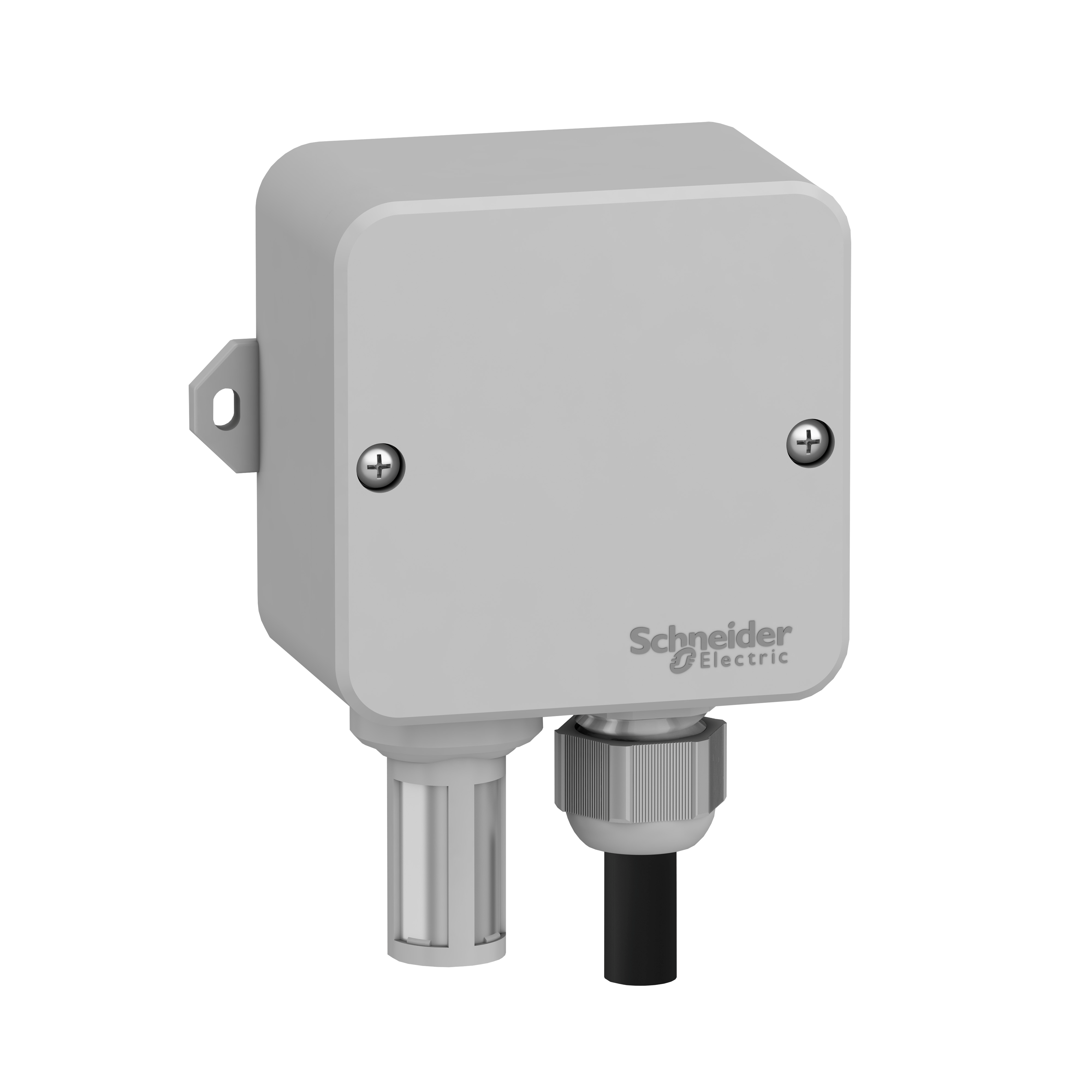

Modicon M171/172, Czujnik wilgotności i temperatury, 4-20 mA, montaż ścienny, IP65
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | TM1SHTCC4 |
| GTIN(EAN) | 3606481390165 |
| Price unit | piece |
| Catalog price | 2 099,61 zł (1 707,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 250 g |
| ETIM class: | Sensor (HVAC) |
| Type of power supply: | Other |
| Wi-Fi-compatible: | no |
| NFC (Near Field Communication): | no |
| Cover attachment: | Screwed |
| Bluetooth: | no |
| Supporting protocol for BACnet: | no |
| With mounting material: | no |
| UV resistant: | no |
| Suitable for wall mounting: | yes |
| Standby push button: | no |
| Material element: | Other |
| Fixed cable to sensor: | yes |
| Sensor type: | Other |
| With housing: | no |
| Tolerance: | 5 % |
| Housing colour: | Black |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| Ambient temperature: | -40 - 70 °C |
| Max. ambient humidity (non-condensing): | 100 % |
| Average temperature measuring: | no |
| Number of output ranges 0 mA ... 20 mA: | 1 |
| Supporting protocol for MP (multi point): | no |
| Number of output signals: | 1 |
| Technology: | Other |
| IFTTT support available: | no |
| Suitable for tube mounting: | no |
| With display: | no |
| Sensor element inside housing: | no |
| Explosion-proof: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| LoRa technology: | no |
| Degree of protection (IP): | IP65 |
| Number of measuring points: | 1 |
| Passive temperature measurement: | yes |
| Offset setting possible: | no |
| Enthalpy measurement: | no |
| Potentiometer with adjustment knob: | no |
| Particulate matter measurement (PM): | no |
| Measurement of absolute air humidity: | yes |
| With reverse polarity protection: | no |
| Suitable for gases: | no |
| Type of electric connection: | Other |
| Measurement of dewpoint: | no |
| Measurement of VOC: | no |
| Sensor element outside housing: | no |
| Active temperature measurement: | no |
| Suitable for liquids: | no |
| Scope of application: | Other |
| Measurement of CO2: | no |
| Suitable for ceiling mounting: | no |
| Measurement of relative air humidity: | no |
| Suitable for duct mounting: | no |
| Trend representation: | no |
| Wireless: | no |
| Rated supply voltage DC: | 8 - 32 V |
| Suitable for air: | yes |
| Error registration possible: | no |
