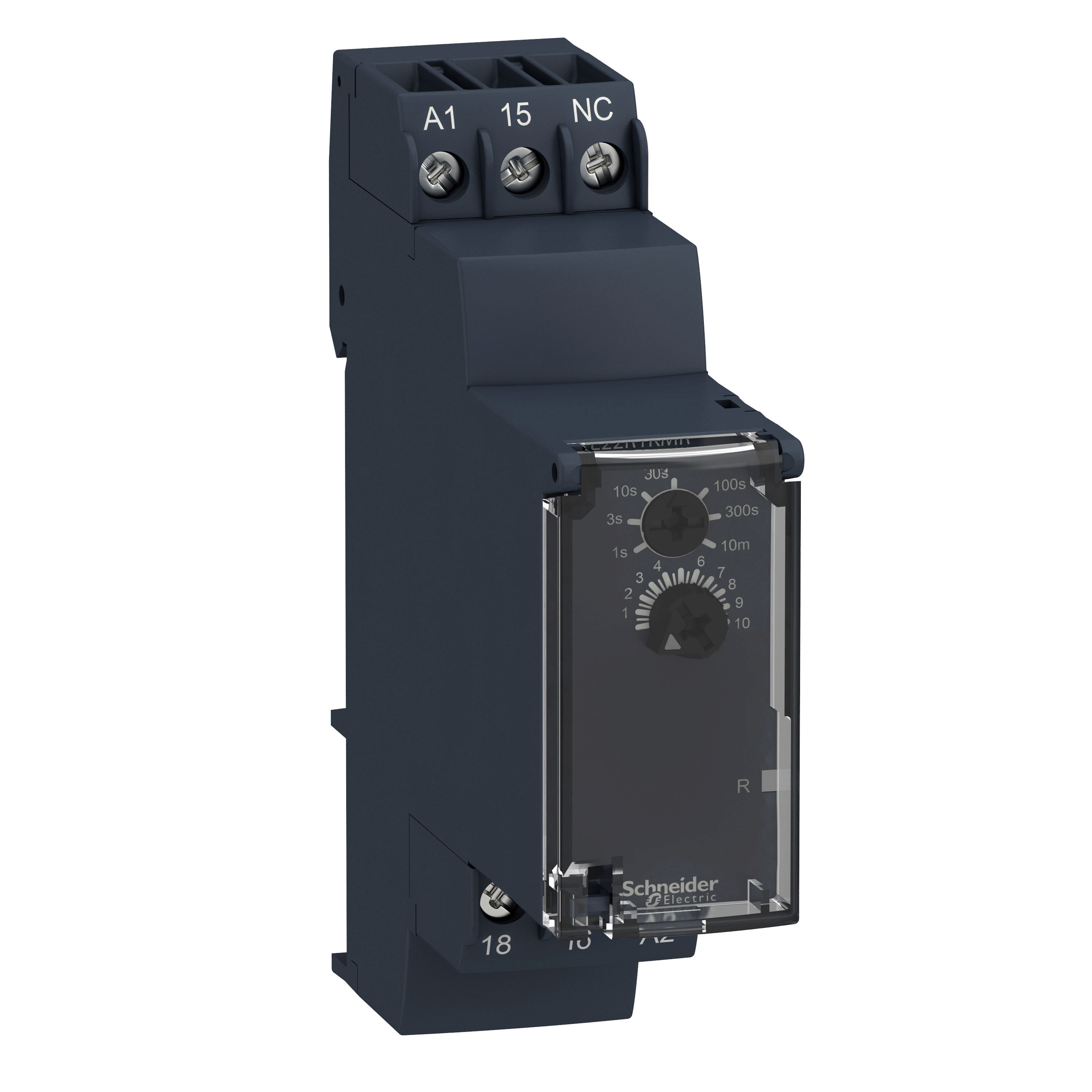

Harmony Time Przekaźnik czasowy z opóźnieniem 24 240V AC/DC, 0.05s/ 300h, styk 1C/O 8A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RE22R1KMR |
| GTIN(EAN) | 3606480792458 |
| Price unit | piece |
| Catalog price | 425,37 zł (345,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Modułowy dwufunkcyjny przekaźnik czasowy jest idealny do zarządzania czasem w systemach automatyki takich jak automatyczne otwieranie drzwi, alarmach, oświetlenie w toaletach i szlabanach parkingowych. Jego budowa jest jedną z najsmuklejszych na rynku (22.5mm szerokości ), pozwalając na elastyczny i prosty montaż w szynie DIN, tak jak dowolne 2-biegunowe urządzenie DIN. Oferuje także zamykaną pokrywę, proste i precyzyjne ustawienia za pomocą obrotowych trymerów.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 29 |
| Gross weight: | 92 g |
| ETIM class: | Timer relay |
| Number of outputs, delayed, normally open contact: | 1 |
| Number of outputs, delayed, normally closed contact: | 1 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Function delay-on energization: | no |
| Number of outputs, delayed, change-over contact: | 1 |
| Function floating contact on energization: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| With semiconductor output: | no |
| Depth: | 73 mm |
| Width: | 22.5 mm |
| Pluggable on auxiliary contact block: | no |
| Function flashing, starting with pulse, fixed time: | no |
| Function flashing, starting with pause, fixed time: | no |
| Clock function, starting with pulse, variable: | no |
| Clock function, starting with pause, variable: | no |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Function delay on de-energization: | yes |
| Type of electric connection: | Screw connection |
| Function pulse shaping: | no |
| Function floating contact on de-energization: | no |
| Suitable as remote control: | no |
| Remote operation possible: | no |
| Nominal current: | 5 A |
| Outputs, reversible delayed/undelayed: | no |
| Voltage type for actuating: | AC/DC |
| Height: | 90 mm |
| Rated control supply voltage AC 60 Hz: | 24 - 240 V |
| Rated control supply voltage AC 50 Hz: | 24 - 240 V |
| Rated control supply voltage DC: | 24 - 240 V |
| Function star-delta: | no |
| Time range: | 0.05 - 600 s |
| Suitable for front mounting: | no |
| With plug-in socket: | no |
