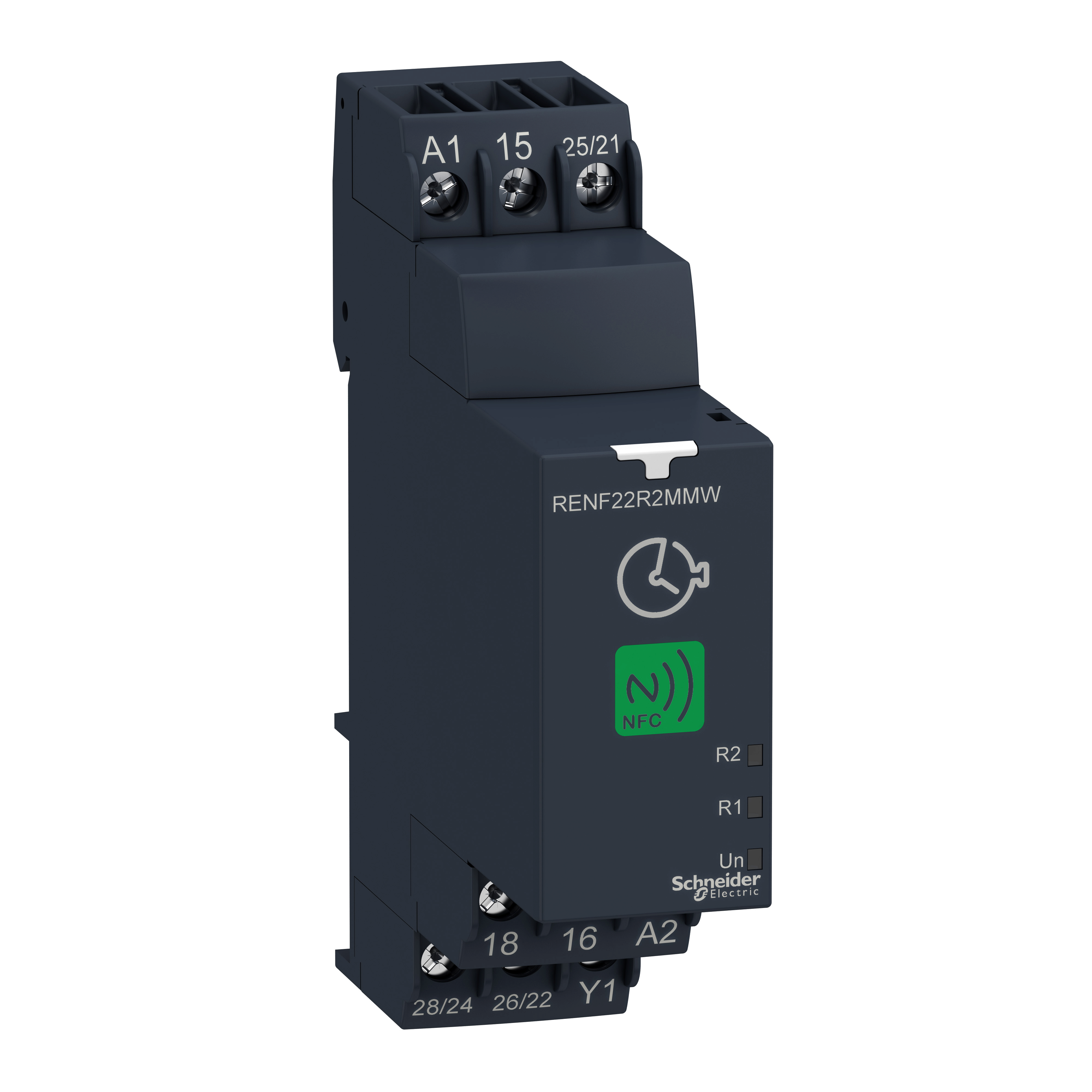

Harmony Time NFC Modułowy przekaźnik czasowy 8 A 2 CO 0.1 s…999 h wielofunkcyjny 24...240 V AC/DC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RENF22R2MMW |
| GTIN(EAN) | 3606480936203 |
| Price unit | piece |
| Catalog price | 572,12 zł (465,14 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 103,6 g |
| ETIM class: | Timer relay |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 1 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Function delay-on energization: | no |
| Number of outputs, delayed, change-over contact: | 2 |
| Function floating contact on energization: | no |
| With semiconductor output: | no |
| Depth: | 73 mm |
| Width: | 22.5 mm |
| Pluggable on auxiliary contact block: | no |
| Function flashing, starting with pulse, fixed time: | yes |
| Function flashing, starting with pause, fixed time: | yes |
| Clock function, starting with pulse, variable: | yes |
| Clock function, starting with pause, variable: | yes |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Function delay on de-energization: | no |
| Type of electric connection: | Screw connection |
| Function pulse shaping: | yes |
| Function floating contact on de-energization: | no |
| Suitable as remote control: | no |
| Remote operation possible: | yes |
| Nominal current: | 8 A |
| Outputs, reversible delayed/undelayed: | yes |
| Voltage type for actuating: | AC/DC |
| Height: | 90 mm |
| Rated control supply voltage AC 60 Hz: | 24 - 240 V |
| Rated control supply voltage AC 50 Hz: | 24 - 240 V |
| Rated control supply voltage DC: | 24 - 240 V |
| Function star-delta: | yes |
| Time range: | 0.1 - 3600000 s |
| With plug-in socket: | no |
