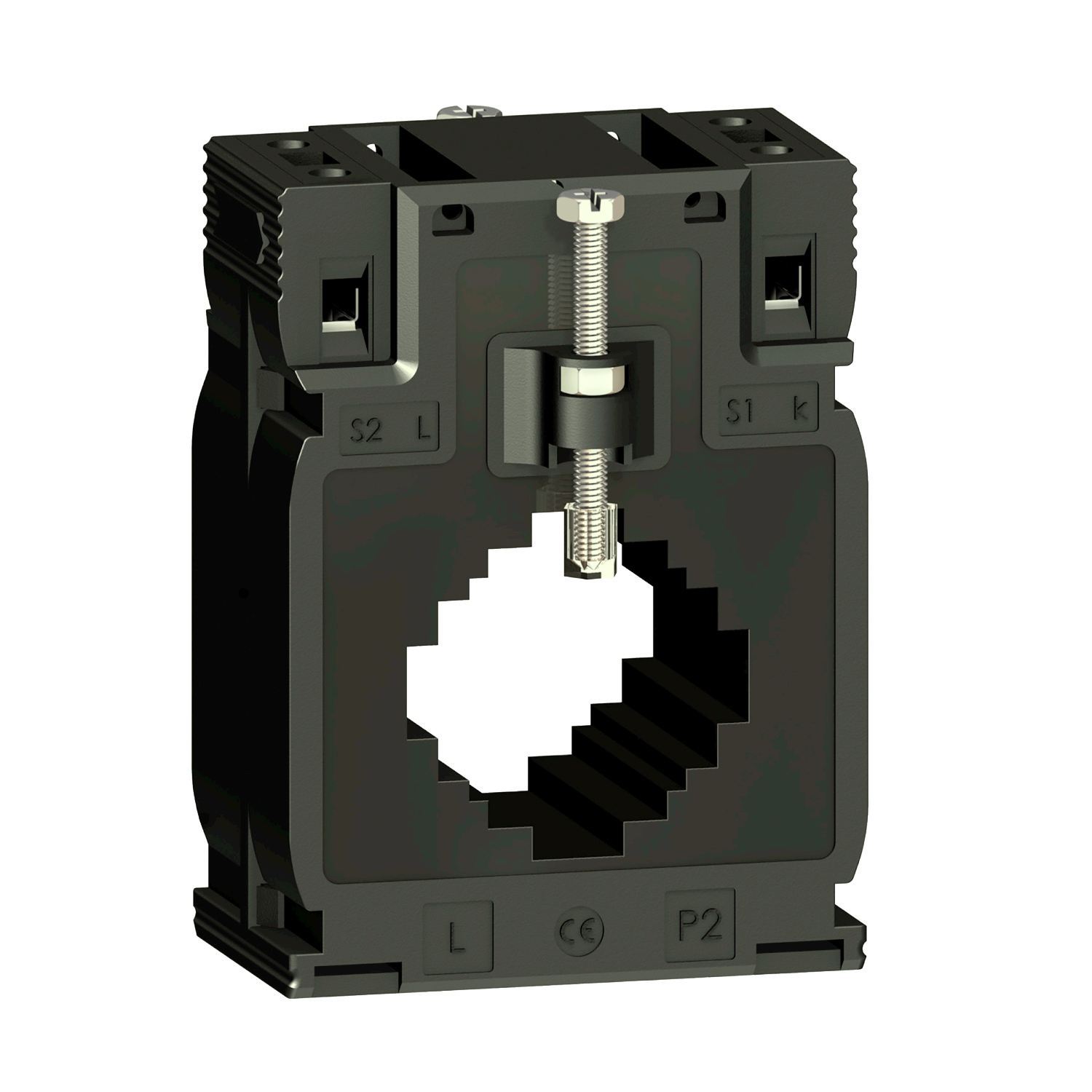

PowerLogic Przekładnik prądowy DIN 600/5 lub szynoprzewód
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | METSECT5MC060 |
| GTIN(EAN) | 3606480618864 |
| Price unit | piece |
| Catalog price | 526,44 zł (428,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten transformator prądowy, tropikalizowany dla szyn zbiorczych i kabli, ma prąd znamionowy linii 600 A i prąd wtórny 5 A. Przekładnik prądowy ma otwór 41 mm x 41 mm. Kompatybilny z potrójnym wyjściem dla pręta: 40,5 mm x 10,5 mm lub 32,5 mm x 20,5 mm lub 25,5 mm x 25,5 mm. Klasa obciążenia i dokładności: klasa 0.5 moc maksymalna: 12 VA, maksymalna moc klasy 1: 15 VA.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 450 g |
| ETIM class: | Current transformer |
| Overcurrent limiting factor: | FS 5 |
| Width opening: | 41 - 41 mm |
| Height opening: | 41 - 41 mm |
| Accuracy class: | 1 |
| With shock protection: | no |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 15 VA |
| Opening diameter: | 32 mm |
| With copper rail: | no |
| Number of primary inputs: | 1 |
| Calibrated: | no |
| Secondary connection: | Screw connection |
| Model: | Through-feed current converter |
| Rated primary current: | 600 A |
| Snap mounting: | no |
