Zestaw bloku zaciskowego
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LVSXK724 |
| GTIN(EAN) | 3606481072856 |
| Price unit | piece |
| Catalog price | 236,16 zł (192,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

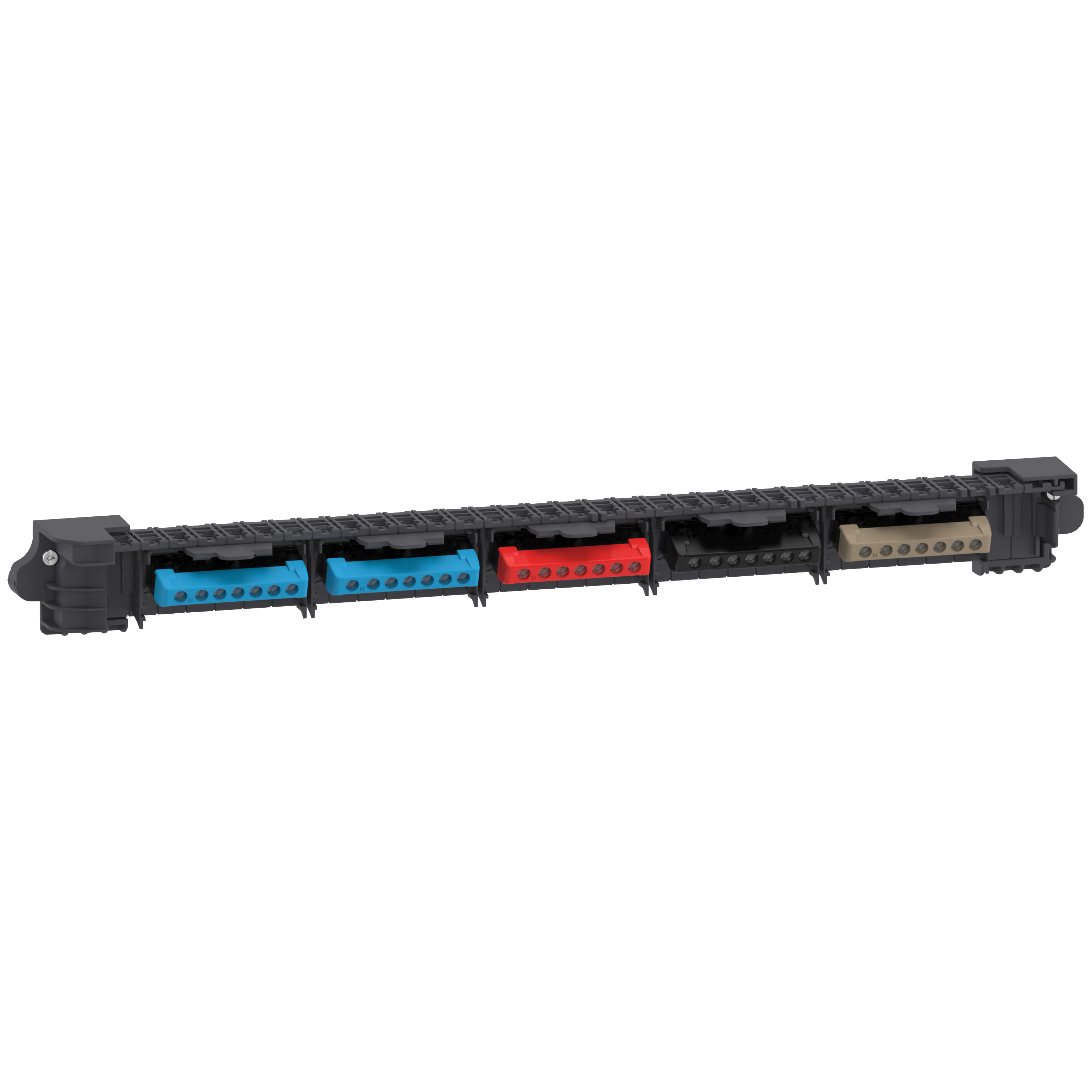

Zestaw bloków zaciskowych śrubowych 3P+N, który można zainstalować w obudowie PrismaSeT S lub XS. Składa się z 1 wspornika listwy zacisków z 5 listw zacisków. Może być instalowany w obudowie o szerokości 24 modułów, montażu natynkowego lub podtynkowego. Prąd znamionowy: 125A. Napięcie izolacji znamionowej Ui wynosi 400V. Posiada 2 neutralne bloki zaciskowe z 7 wyjściami (1x35mm²+6x16mm²) oraz 3-fazowe listwy zaciskowe z 7 wyjściami (1x35mm²+6x16mm²). Całkowite wymiary to (szer.) 534mm x (wys.) 20mm x (gł.) 10mm. Waga wynosi 220g. Temperatura otoczenia powietrza dla pracy wynosi od -25°C do 60°C.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 458 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 5 |
| Connectable conductor cross section solid-core: | 2.5 - 35 mm² |
| Inflammability class of insulation material according to with UL94: | V2 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 35 mm² |
| Halogen free: | yes |
| Mounting method: | Direct mounting |
| Transparent: | no |
| Number of poles: | 4 |
| Height: | 20 mm |
| Depth: | 10 mm |
| Closing plate required: | no |
| Colour: | Other |
| Rated voltage: | 440 V |
| Type of electrical connection 1: | Screw connection |
| Width: | 534 mm |
| Material insulation body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 125 A |
| Connectable conductor cross section multi-wired: | 2.5 - 35 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 35 mm² |
| Operating temperature: | -25 - 60 °C |
