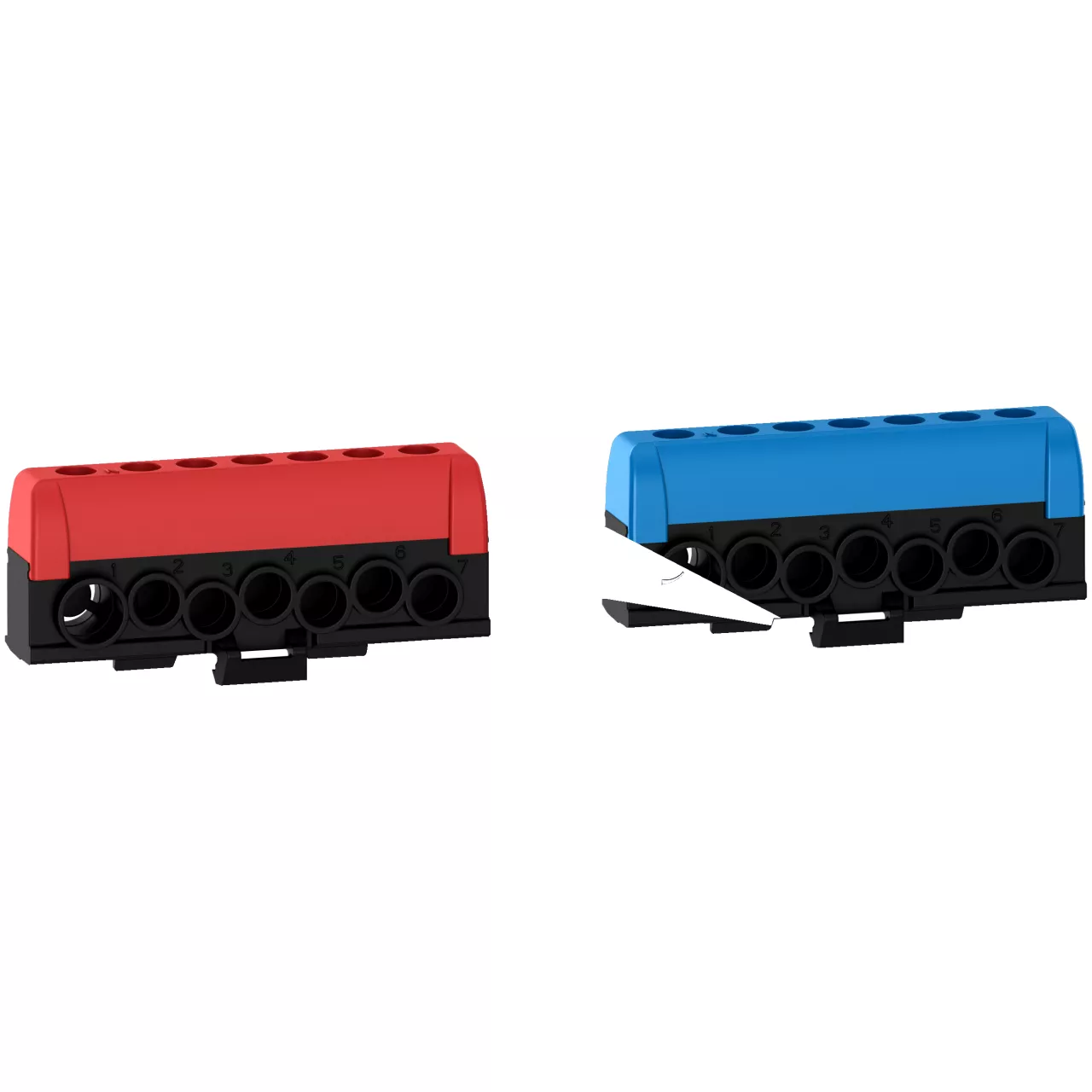

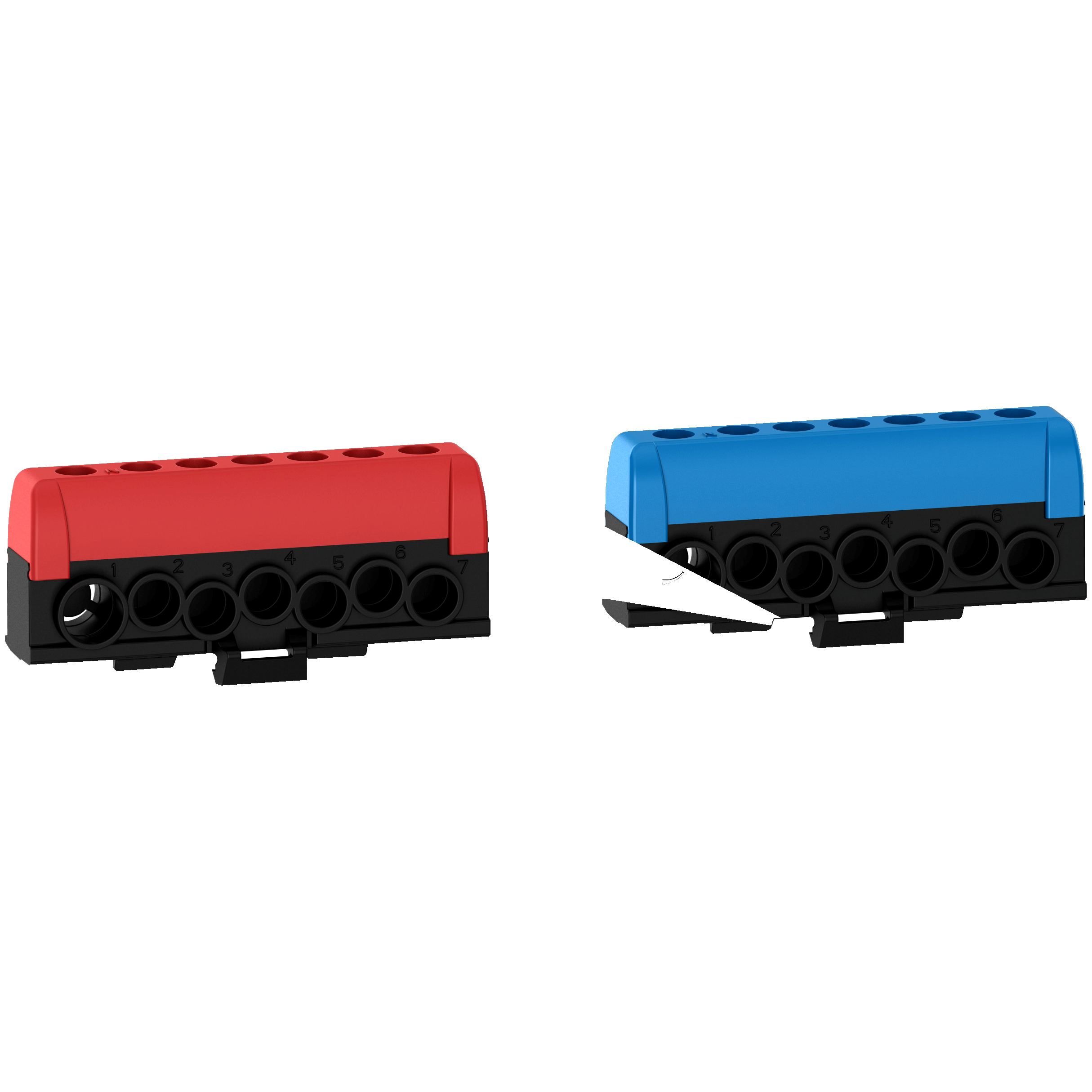

Bloki zacisków Pragma PE+N 2 szt., 1 x 35mm2 + 6 x 16mm2
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | R9H13411 |
| GTIN(EAN) | 3606480928048 |
| Price unit | piece |
| Catalog price | 79,95 zł (65,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 110 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 7 |
| Connectable conductor cross section solid-core: | 2.5 - 35 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 35 mm² |
| Halogen free: | no |
| Mounting method: | Other |
| Transparent: | no |
| Number of poles: | 2 |
| Height: | 22 mm |
| Depth: | 32 mm |
| Closing plate required: | no |
| Colour: | Other |
| Rated voltage: | 440 V |
| Type of electrical connection 1: | Screw connection |
| Width: | 70 mm |
| Material insulation body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 125 A |
| Connectable conductor cross section multi-wired: | 2.5 - 35 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 35 mm² |
| Operating temperature: | -25 - 60 °C |
