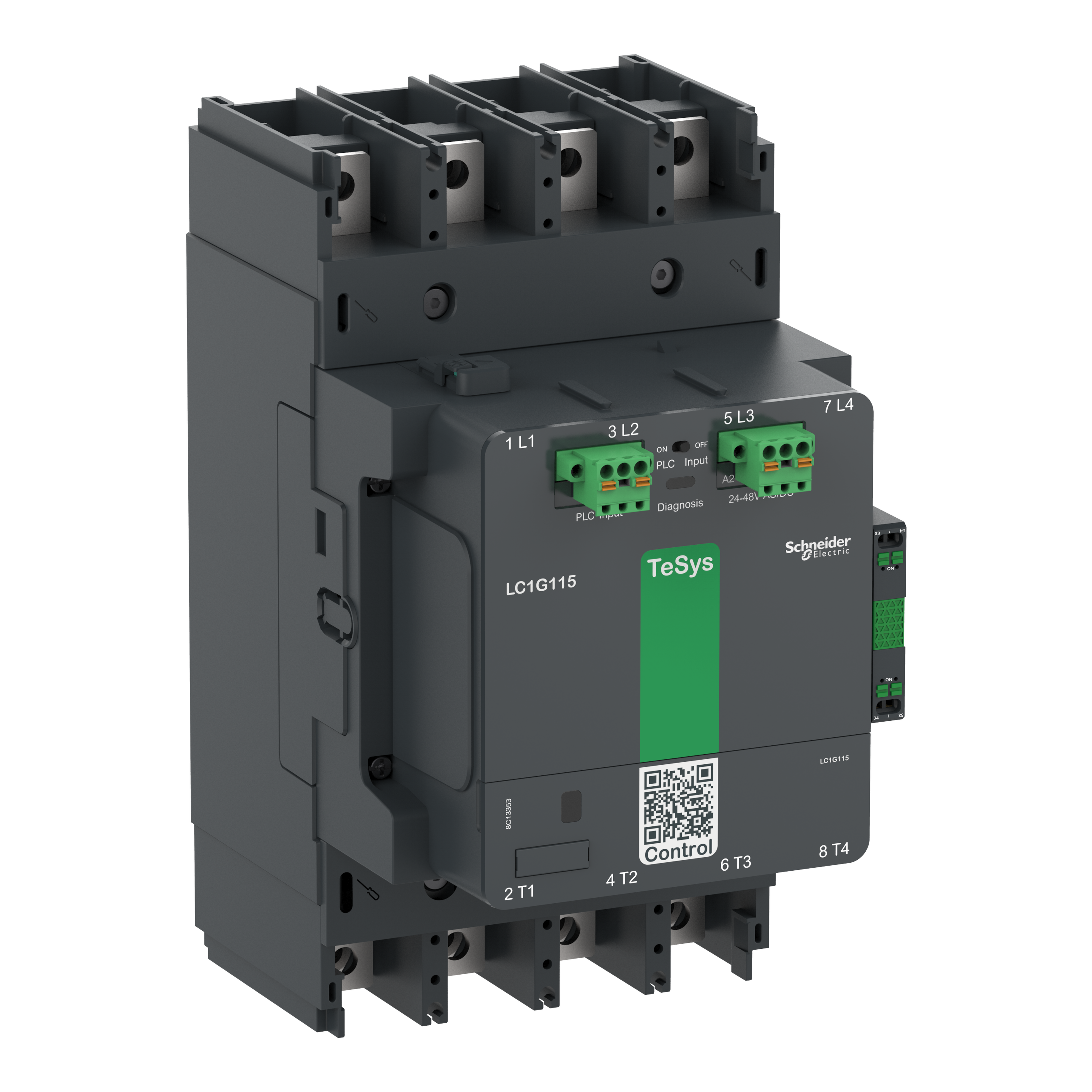

Stycznik mocy, TeSys Giga, 4 biegunowy (4NO), AC-1 <=440V 250A, wersja rozszerzona, 200…500V szerokozakresowa AC/DC cewka elektroniczna
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1G1154LSEA |
| GTIN(EAN) | 3606481922724 |
| Price unit | piece |
| Catalog price | 5 246,79 zł (4 265,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 6,177 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Bolt connection |
| Number of normally open contacts as main contact: | 4 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-1, 400 V: | 250.0 A |
| Rated operation power NEMA: | 75 kW |
| Rated control supply voltage AC 60 Hz: | 200 - 500 V |
| Rated control supply voltage AC 50 Hz: | 200 - 500 V |
| Rated control supply voltage DC: | 200 - 500 V |
| Rated operation power at AC-3, 400 V: | 55.0 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 55.0 kW |
| Rated operation current Ie at AC-4, 400 V: | 115 A |
